INSTALLATION OF OPTIONAL AIR PANEL P-AP(90/160)DNA
16 INSTALLATION OF OPTIONAL AIR PANEL P-AP(90/160)DNA
16.1 APPLICABLE MODEL
This air panel is applicable to the following indoor unit model.
16.2 TRANSPORTATION AND HANDLING
1 Transport the air panel without unpacking as close to the installation location.
2 Mount the air panel as soon as possible after unpacking.
3 When the air panel is placed on the floor after unpacking, place it with the rear side downward (the surface to fit the indoor unit
body) on an insulation material, etc. However, do not leave the air panel on the floor for long time. It may cause air leakage due
to scratch the seal packing.
In addition, if the air panel is placed with the surface downward, the louver mechanism may be damaged due to touch the louver
to the floor, etc.
4 Do not move the louver by hand. If moved, the louver mechanism will be damaged.
16.3 BEFORE INSTALLATION

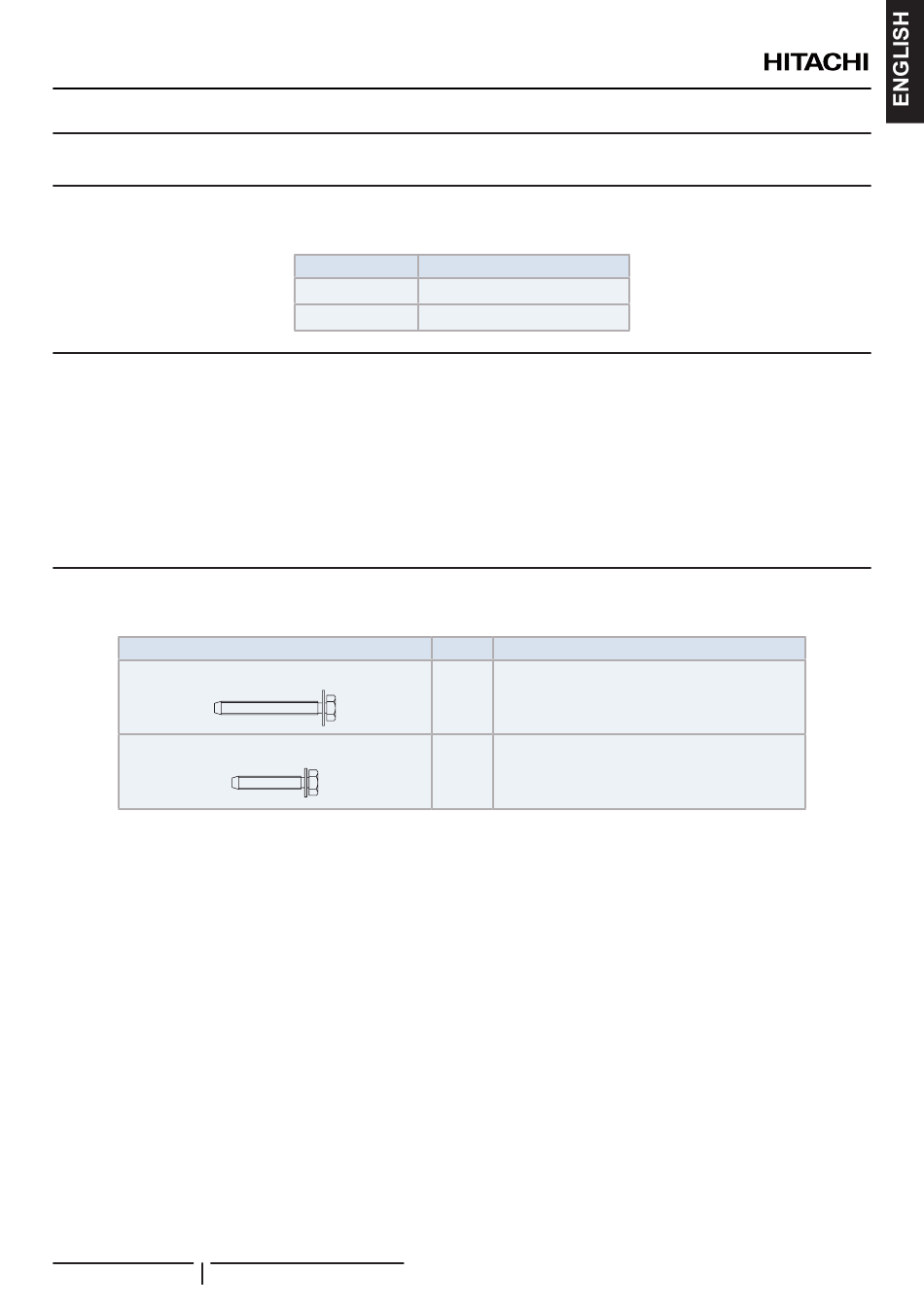

Check to ensure that the following accessories are packed with the air panel.
Long Screw (M6 Cross Screw) Length 40mm Black
Long Screw (M6 Cross Screw) Length 35mm
If any of these accessories are not packed in the packing, please contact your contractor.
33
PMML0549 rev.1 - 02/2021 - A10761230A
Air Panel
P-AP90DNA
P-AP160DNA
Name
Indoor Unit Model
RCD-0.8FSR to 3.0FSR
RCD-4.0FSR to 6.0FSR
Q'ty
Purpose
4
For Fixing Air Panel
2
For Fixing Air Panel (P-AP160DNA Only)
