INDOOR UNIT INSTALLATION
12.2.2 Installation location
!
D A N G E R
•
Provide a sufficiently strong foundation. If not, the unit may fall down and it may lead to injuries.
•
Do not install the unit where flammable gas may be generated or flow. It may cause a fire.

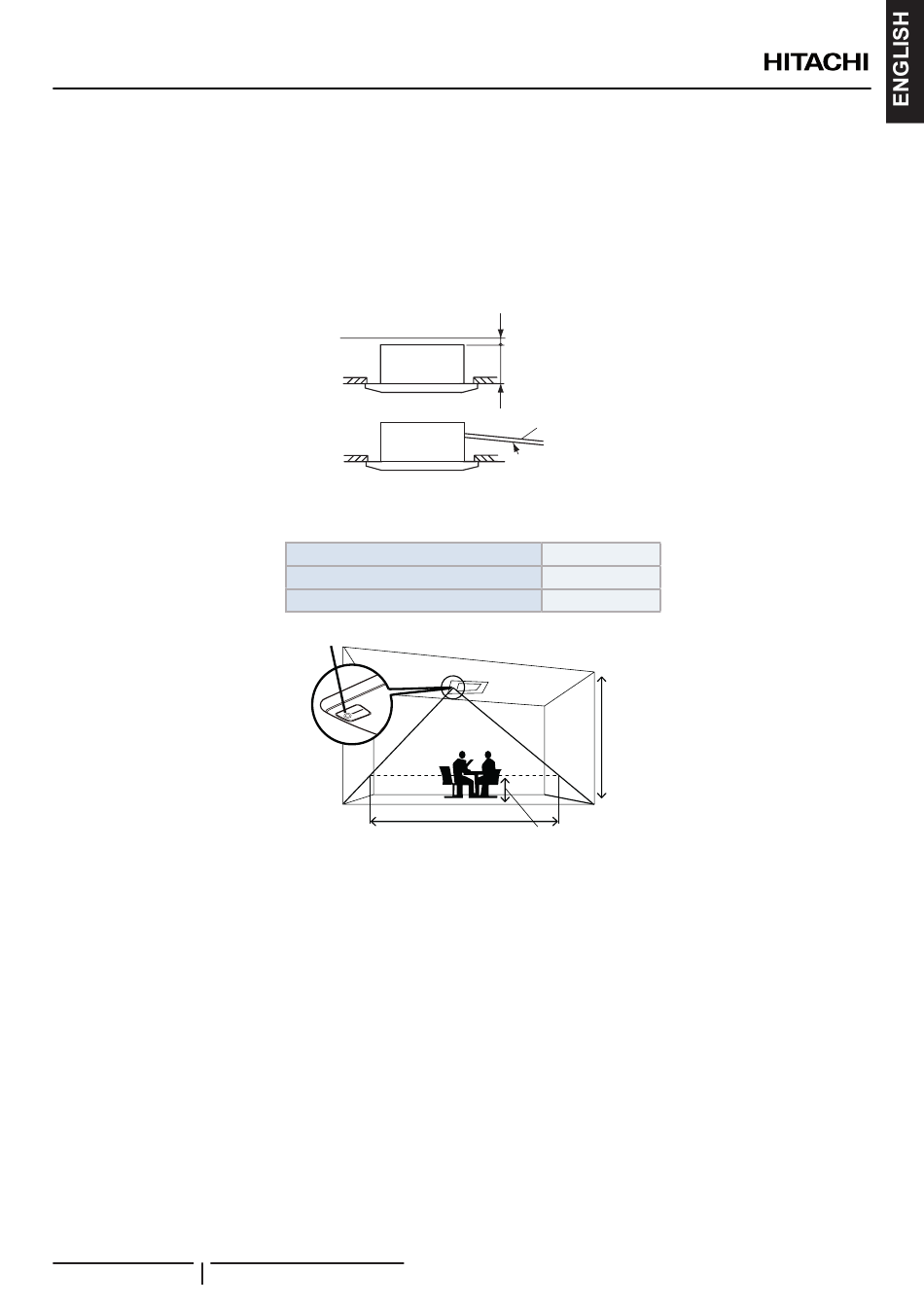

Select the installation location as follows:
•
(A) Minimum Space
•
(B) Down Slope Pitch of Drain Pipe: 1/25 to 1/100
•
The sensing area for the motion sensor is shown in the figure below when applying the motion sensor kit (option) with the air
panel.
•
Consider the air distribution from the indoor unit to the space of the room, and select a suitable location so that uniform air
temperature in the room can be obtained.
•
Do not place flammable materials in the service space for the indoor unit.
•
Install the unit where there is no obstacles which may hamper the suction air and discharged air.
•
Do not install the unit near a door or a window where the indoor unit may contact humid outside air. Otherwise, dew
condensation may occur.
•
In case temperature and humidity inside the ceiling exceeds 30ºC/RH (Relative Humidity) 80%, apply additional insulation
materials to the external surface of the indoor unit to avoid dew condensation.
•
If installing the indoor unit to a high ceiling, the warmed air may stay around the ceiling during heating operation. Thus, the
parallel installing of a circulator is recommended.
•
Do not install the indoor unit where the airflow from the air outlet blows directly to the temperature detecting devices such an
alarm device or a control device. It may cause a failure of an alarm device or a control device.
•
For simultaneous operation of multiple units (twin, triple and quad combination) , the units must be installed in the same room
and be operated under the same conditions. If the room is partitioned by a wall, furniture or a curtain, etc., it may cause an
operation failure. Take care when rearranging furniture or remodeling the room after installation as well.
17
PMML0549 rev.1 - 02/2021 - A10761230A
Installation Height of Indoor Unit: h (m)
Sensing Area for Motion Sensor: øa (m)
Motion Detection
Motion sensor
φa
Min. 10mm
Clearance
345mm
Unit Height in
false ceiling
Drain piping
Down Slope Pitch:
1/25 to 1/100
3.1
Approx. 8.5
Human Motion
h
From floor surface 0.8m
