INDOOR UNIT INSTALLATION

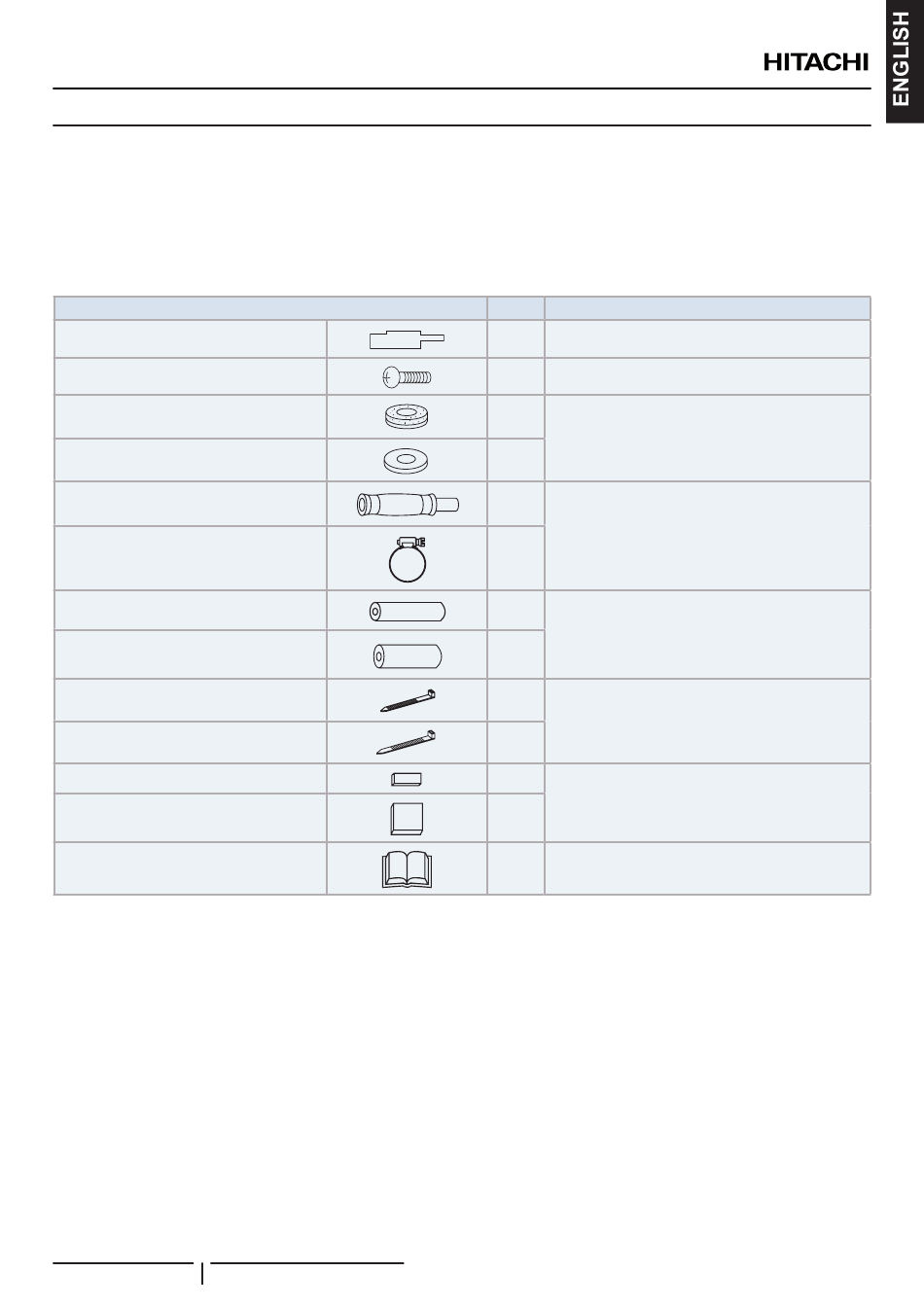

12.1 FACTORY-SUPPLIED ACCESSORIES
Check to ensure that the following accessories are packed with the indoor unit.
The hose clamp, screws, washers and plastic clamps are put in the pipe insulation.
?
N O T E
•
If any of these accessories are not packed with the unit, please contact your contractor.
•
The remote control switch, the branch pipes and the transition wires are optional accessories which are not included with the indoor unit.
Checking scale (cut and take out it from the
carton board)
Cross recessed head screws (M6)
Washer with insulation material (M10)
Washer (M10)
Drain hose
Hose clamp
Pipe insulation
Pipe insulation
Cord clamp
Cord clamp
Insulation (5Tx50x200)
Insulation (5Tx270x270)
Installation and operation manual
15
PMML0549 rev.1 - 02/2021 - A10761230A
Accessory
Q'ty
For adjusting space of false ceiling opening and position
1
of the unit
4
For fitting paper pattern
4
For unit installation
4
1
For drain hose connection
1
1
For refrigerant piping connection
1
2
For fixing remote control switch wiring and insulation of
piping
6
1
For covering wiring connection
1
1
Purpose
