• For connection of a braking resistor, use terminals R
4.2.3 ACT4XX (18.5...30.0 kW)

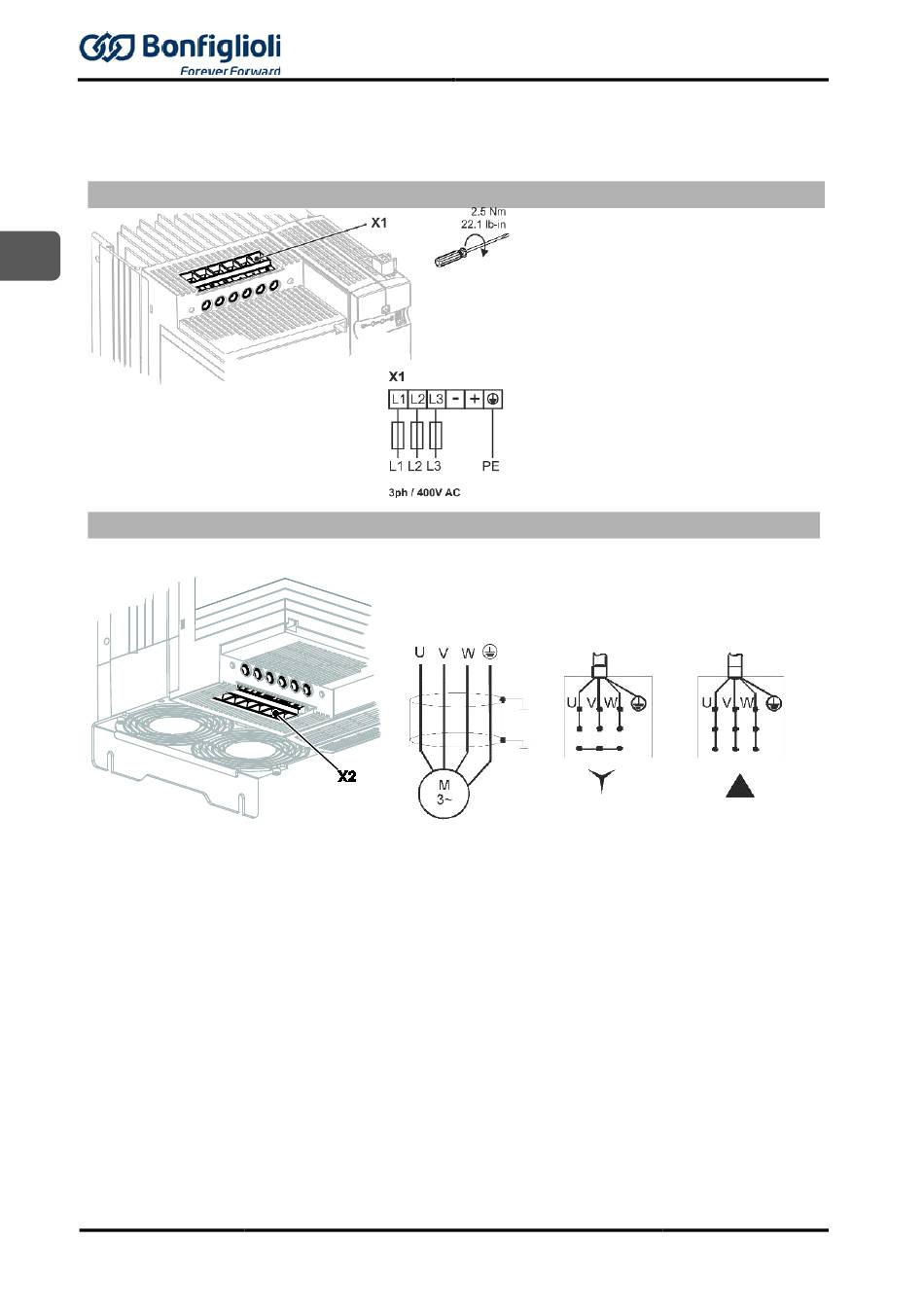

Mains connection
GB
Motor connection
For connection of the ground conductor of the mains and motor cable,
•
use the provided terminal connection options X1 and X2. Other connection
options for connecting the mains and motor cable are not permissible.
For connection of a braking resistor, use terminals R
•
72
Quick Start Guide ACT
and R .
b1 b2
and R .
b1 b2
