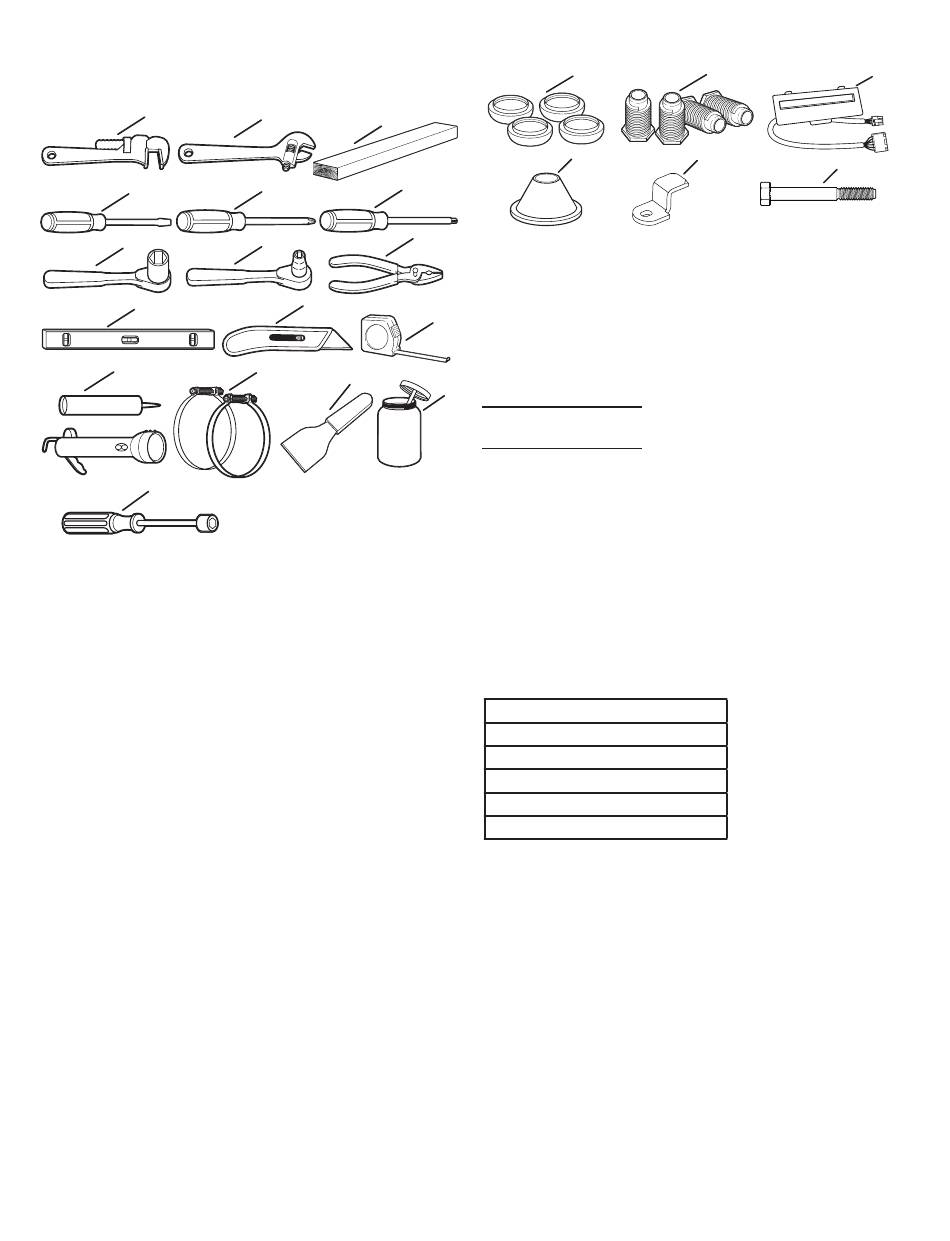

TOOLS & PARTS TOOLS & PARTS
Tools Needed:
A
D
G
J
M
Q
A. 8" (200 mm) or 10" (250 mm) Pipe wrench
B. 8" (200 mm) or 10" (250 mm) adjustable wrench that opens to 1"
(25 mm) wrench
C. 27" (686 mm) Wood block
D. Flat-blade screwdriver
E Phillips screwdriver
F. TORX ® T20 ®† security screwdriver or bit
G. 1" (25 mm) Hex-head socket wrench
H. 5/16" (8 mm) Socket wrench
I. Pliers (that open to 1 / " [39.7 mm])
9
16
J. Level
K. Utility knife
L. Ruler or measuring tape
M. Caulk gun and caulk (for installing new exhaust vent)
N. Vent clamps
O. Putty knife
P. Pipe-joint compound suitable for gas type
Q. 1/4" (6 mm) Nut driver
† TORX and T20 are trademarks of Acument Intellectual Properties, LLC.
®
8
B
C
F
E
I
H
K
L
N
O
Parts Supplied:
R
U
R. Foot Boots (4)
S. Leveling Legs (4)
T. Bezel kit (PR models only)
U. Security cone (PD models only)
V. Lock cam (on some models)
W. 5/16" hex-head 18 x 2½" security bolt (PD models only)
NOTE: The circuit diagram for this dryer is located inside
the lower front panel, within the Tech Sheets.
P
Technical Specifications:
220–240 V, 50 Hz AC
4575 W
Total mass: 68 kg maximum

SPECIFICATIONS

SPECIFICATIONS
These units are sold in multiple regions with different
requirements for measuring capacity. Below are a few of
the valid forms of measure posted on this product:
Dry Linen Capacity: A weight measure that reflects a minimum
threshold for dry volume capacity that is needed for import
tariff purposes.
IEC Capacity: The capacity measure that represents the
maximum capacity of dry linens and textiles which the
manufacturer declares can be treated in a specific cycle.
Dry Linen Capacity
10.5 kg (23 lb)
IEC Capacity
10.5 kg (23 lb)
Sound Level
LpA: 58 dB(A) (kPa+/-10 dB(A))
S
T
V
W
