LOCATION OF
10-CHARACTER SAID CODE
ON WI-FI MODULE
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
If you purchased a Wi-Fi Module from the dealer or an
authorized service company, the Wi-Fi Module needs to be
assembled behind the Fascia Panel.

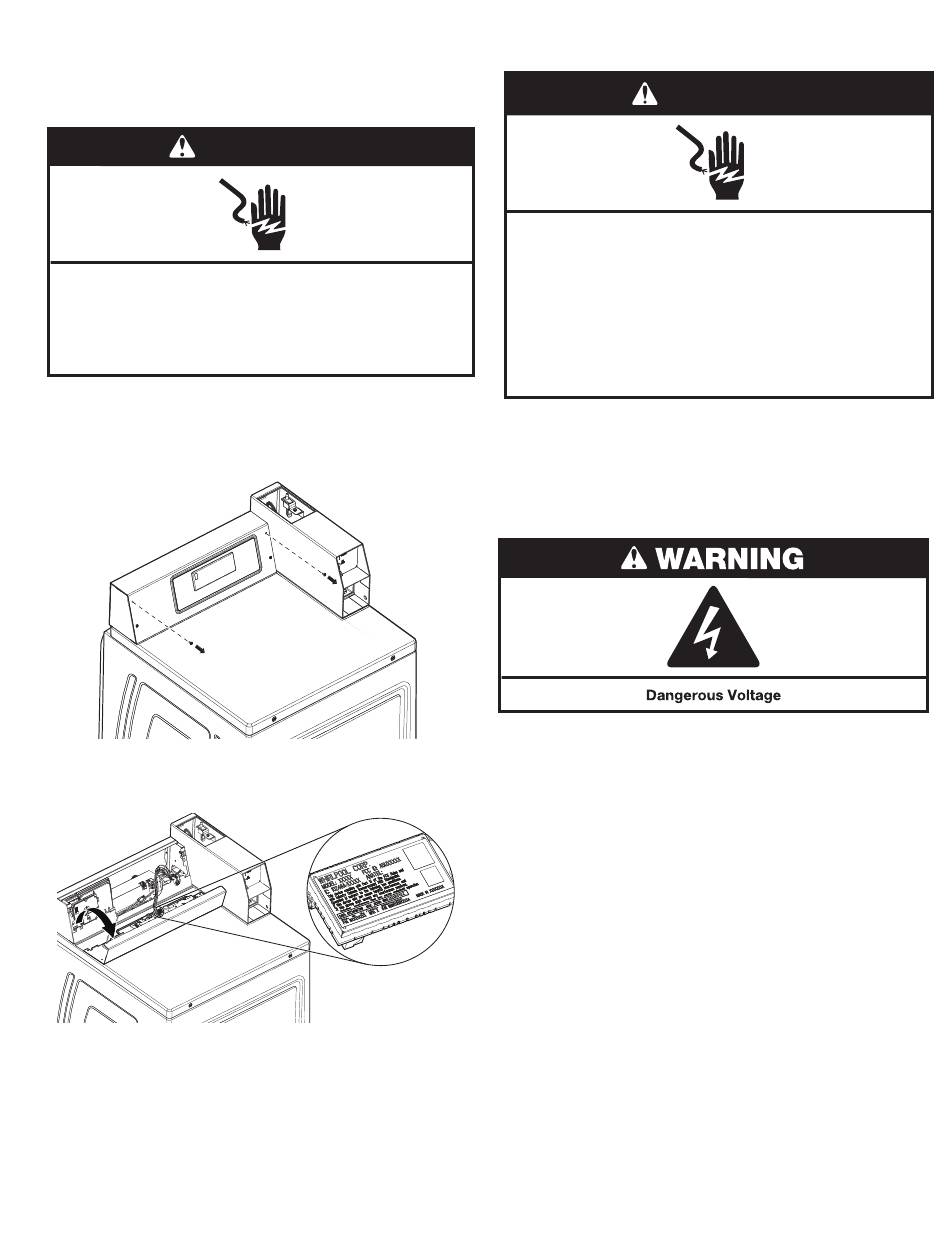

1. Remove the two screws to allow the Fascia Panel to be
rotated outward from appliance.
2. Lay fascia panel face down on appliance top panel to
provide access to User Interface Control Board.
3. SAID code is printed on the Label located on Wi-Fi Module.
4. Replace fascia panel onto appliance with the two screws
previously removed (Refer to illustration, step 1).
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
5. Plug appliance into a grounded 3 prong outlet or reconnect
power.
GAS DRYER ELECTRICAL GAS DRYER ELECTRICAL
REQUIREMENTS REQUIREMENTS
IMPORTANT: Observe all governing codes and ordinances.
This dryer is supplied without an electric cord and plug. It
must be connected by a Whirlpool authorized service person
to a single-phase electricity supply at the voltage shown
on the dataplate, using a suitable fixed wiring installation in
accordance with local and national wiring regulations.
A 3-wire circular cord of minimum conductor size 1.0 mm
■
cross-section area should be used.
A 10 A supply fuse should be used, and a switch with a clear
■
OFF marking having a contact separation in both poles that
provides full disconnection under over-voltage category
III conditions must be incorporated into the fixed wiring in
accordance with local wiring regulations. The dryer should
be positioned so that the disconnection switch is clearly
visible and easily accessible to the user. This disconnection
switch also provides the function of an emergency stop
control for the user.
A cord clamp bushing is provided on the dryer, and should
■
be tightened on completion of wiring. The electrical mains
terminals are located behind the small rear access panel
(terminal block cover), and connections should be made
in accordance with the terminal markings. Remember to
replace the terminal access panel (terminal block cover).
NOTE: In accordance with the European EMC Directive
(2014/30/EU), the maximum electricity supply system
impedance to which the gas dryer should be connected is
declared to be 0.054 Ω + j0.034 Ω.
NOTE: Electrical safety standards: The manufacturer has
chosen compliance with IEC/EN.60335 standards as the
most appropriate for this product.
