3.1

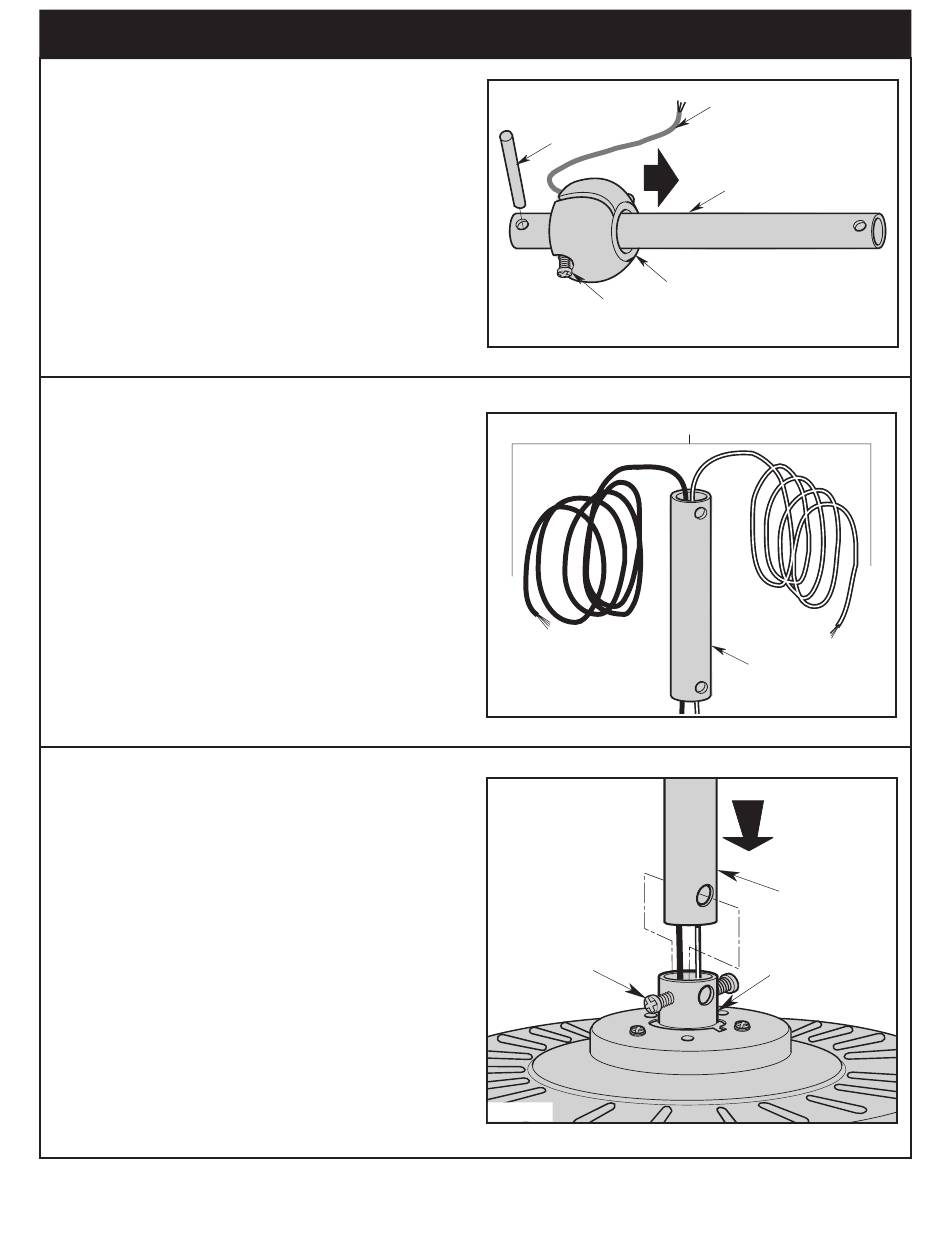

Remove the Hanger Ball by loosening the Phillips Head
Set Screw in the Hanger Ball until the Ball falls freely
down the Downrod (Figure 1) .
Remove the Pin from the Downrod, then remove the
Hanger Ball (Figure 1) .
Retain the Pin and Hanger Ball for reinstallation in
Step 3 .7 .
NOTE: Do not loosen the Screw holding the Green
Ground Wire.
3.2
Separate, untwist and unkink the Two Motor Wires .
Route the Two Motor Wires through the Downrod
(Figure 2) .
3.3
Loosen the Two Phillips Head Set Screws in the Motor
Coupler for installation of the Downrod (Figure 3) .
Seat the Downrod in the Motor Coupler (Figure 3) .
Rotate and align the Downrod Holes with all the Holes
in the Motor Coupler (Figure 3) .

3. Ceiling Fan Assembly

PIN
PHILLIPS HEAD SET SCREW (LOOSENED)
Figure 1
TWO 80" MOTOR WIRES (UNTWISTED)
Figure 2
LOOSEN
PHILLIPS HEAD
SET SCREWS (2)
Figure 3
5
GREEN GROUND WIRE
4.5" DOWNROD
HANGER BALL
4.5" DOWNROD
4.5"
DOWNROD
MOTOR
MOTOR
COUPLER
COUPLING
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF320
