PEERLESS RTLA-100 Installation Et Assemblage page 8

NOTE: Adjustment points (socket screws) are factory torqued for optimal performance. This factory torque setting is
recommended to prevent the screen from slipping over time. If more or less tension is desired follow this optional
step. You may not achieve optimal torque value if factory torque settings are adjusted.

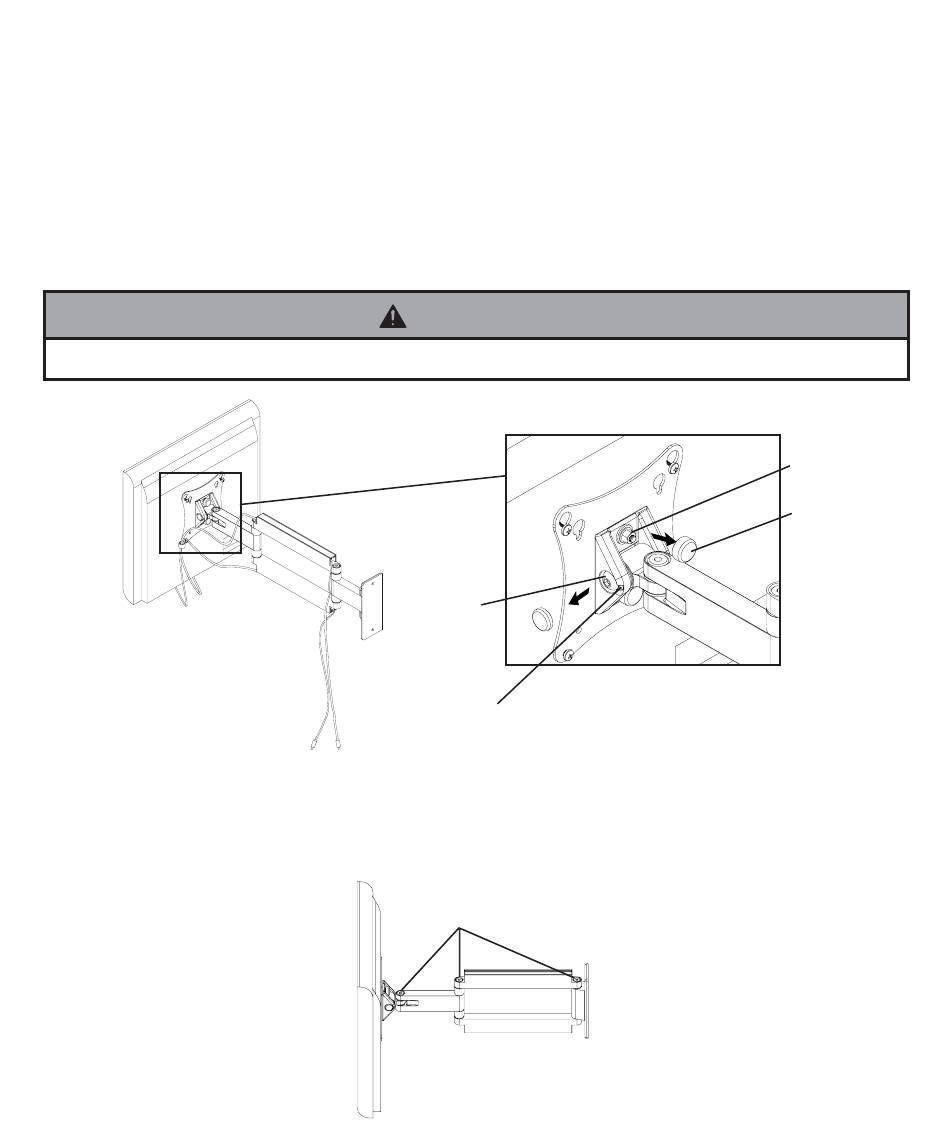

If more or less tension is desired in tilt mechanism, remove snap caps as shown in detail 2. Insert a flat head screw
driver into slot and pry cap away from tilt mechanism. To adjust tilt, simply tighten or loosen socket screw no more
than half a turn using 5 mm allen wrench (I). To adjust roll, simply tighten or loosen 10-32 nylock nut.
• Do not remove screw or loosen screw until it is no longer engaged with the mount. Doing so may cause the screen to fall.
If more or less tension is desired in the arm pivot points, do the following:
• To increase tension, turn socket screw clockwise with 3/16" allen wrench (B).
• To reduce tension, turn socket screw counter-clockwise with allen wrench (B). Do not turn more than half a turn.
OPTIONAL
WARNING
SOCKET
SCREW
SOCKET SCREWS
detail 2
SLOT
10-32 NYLOCK NUT
SNAP CAP
