PEERLESS RTLA-100 Installation Et Assemblage page 6

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
Note: To add security, order ACC 918 for security
screws. Refer to ACC 918 instruction sheet for
installing security screws.

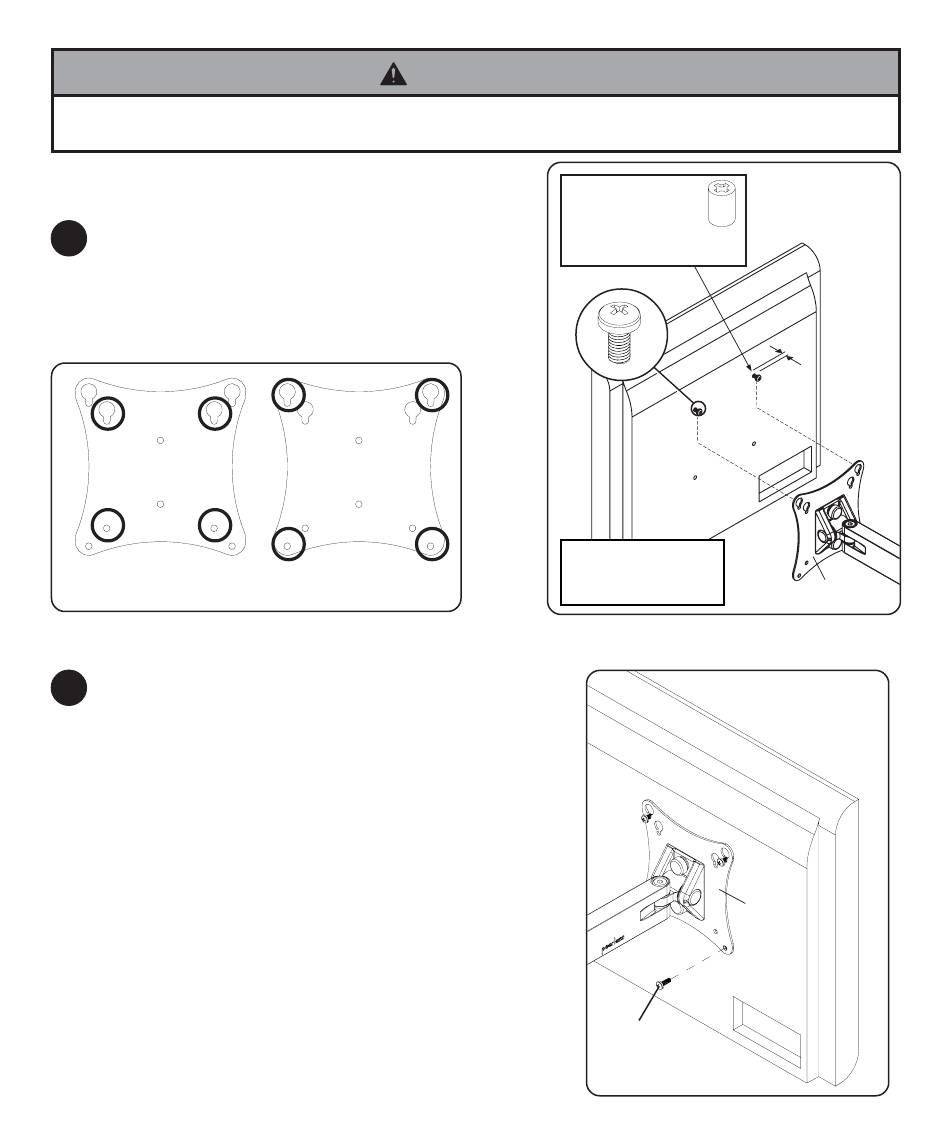

Insert two M4 x 12 mm screws (F) into top two holes
2
of screen, leaving approximately 1/4" of exposed
thread. Hook screws onto keyslots of adapter plate
as indicated in figures 2.1 and 2.2.
*Note: If hole pattern is in a pocket, insert two M4 x
20 mm screws (G) with two retaining spacers (H)
into top two holes of screen as indicated right.
FOR VESA ® 75
MOUNTING PATTERN:
fig. 2.1
Insert one M4 screw (F or G) through bottom hole of
3
adapter plate as shown in figure 3.1.
WARNING
FOR VESA 100
MOUNTING PATTERN:
*For screens with a
hole pattern in a
pocket, spacers (H)
go between adapter
H
plate and screen.
F
Screen may appear
slightly different than
illustrated
fig. 2.2
F or G
fig. 3.1
1/4"
ADAPTER
PLATE
ADAPTER
PLATE
