Installation to Wood Stud Wall
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and
components.
1
Remove cord covers from wall arm assembly (A) as shown in figure 1.1. Using a stud finder, locate and mark the
edges of the wood stud used in mounting this product. Use of an edge to edge stud finder is highly recommended.
Use a level to draw a vertical line down the center of the stud. Use wall plate as template to mark center of holes
along the vertical line. Drill two 5/32" (4 mm) dia. holes 2.5" (65 mm) deep. Attach wall arm assembly (A) to wall
using two #14 x 2.5" flat head wood screws (D) as shown in figure 1.2.
Skip to step 2 on page 6.
• Tighten screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws,
greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the studs. The use of an "edge to edge" stud finder
is highly recommended.
A
CORD COVERS
WARNING
WARNING

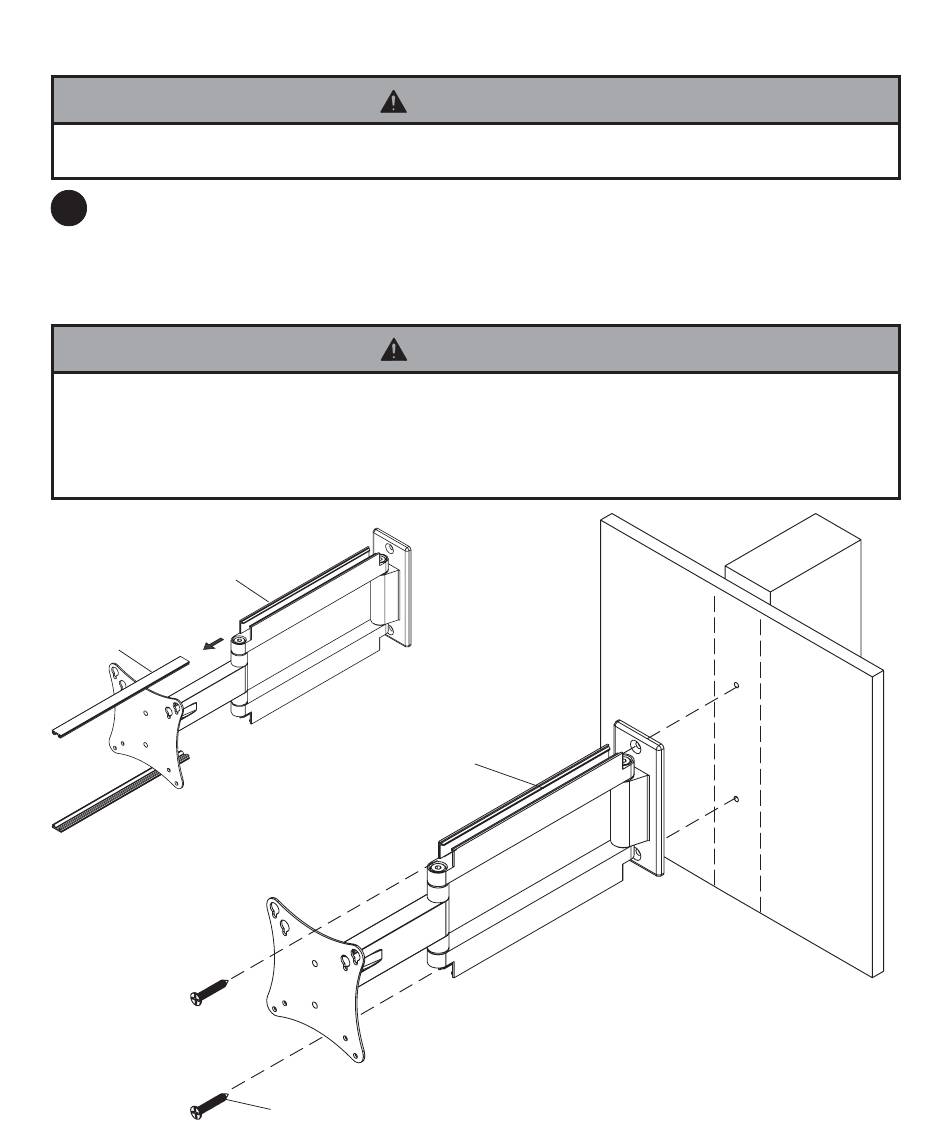

fig. 1.1
A
D
WOOD STUD
WALL
fig. 1.2
