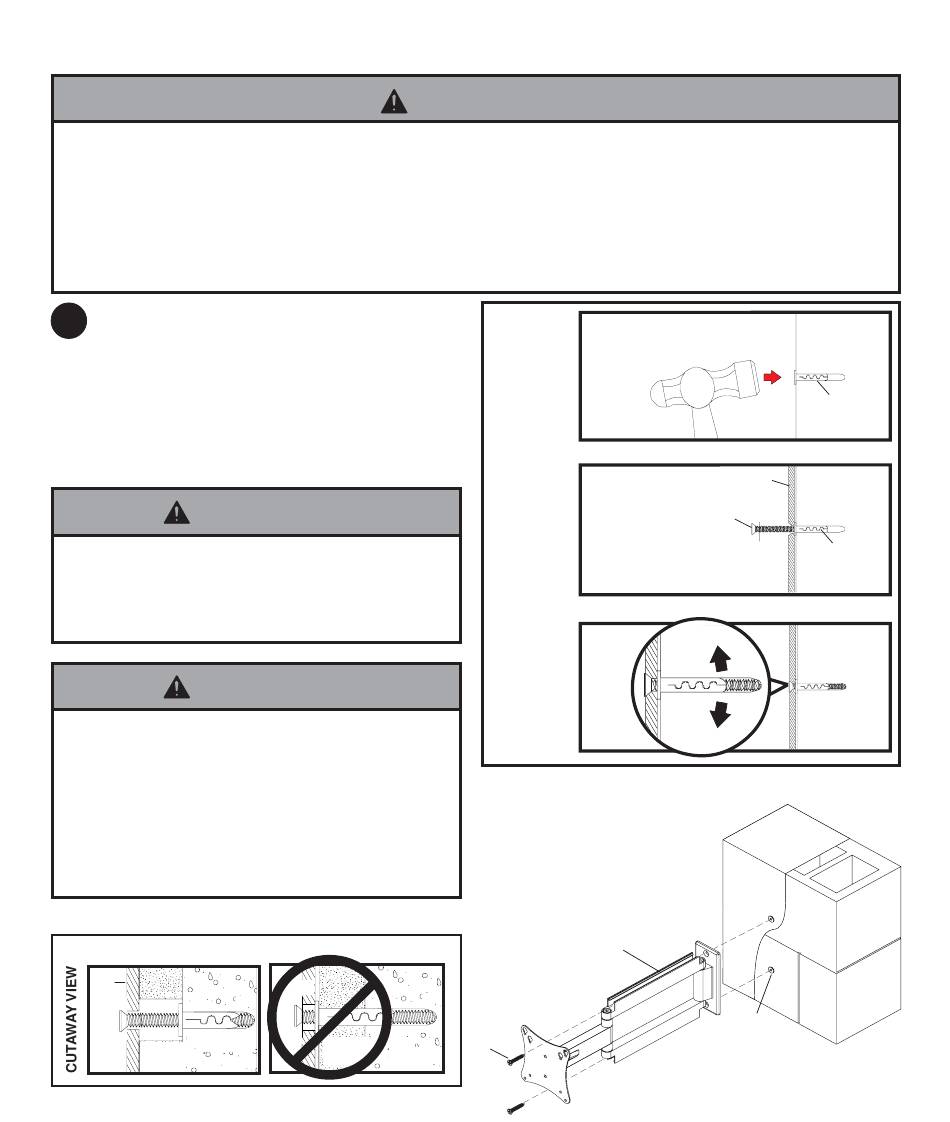

Installation to Solid Concrete and Cinder Block
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid
part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90 specifica-
tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to
avoid breaking out the back of the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
Remove cord covers from wall arm assembly (A) as
1
shown in figure 1.1.
template to mark center of holes.
mm) dia. hole to a minimum depth of 2" (51 mm).
Insert anchors (C) in holes flush with wall as shown
in fig 1.3. Place wall arm (A) over anchor and secure
with wood screw (D) as shown in figure 1.4. Make
sure wall arm is level, and tighten all fasteners. See
figure 1.5.
WARNING
• Tighten screws so that wall plate is firmly attached,
but do not overtighten. Overtightening can damage
the screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
WARNING
• Concrete anchors are not intended for attachment to
concrete wall covered with a layer of plaster, drywall,
or other finishing material as shown below. If mounting
to concrete wall covered with plaster/drywall is
unavoidable, plaster/drywall (up to 5/8" thick) must be
counterbored as shown below. Be sure concrete
anchors do not pull away from concrete when tighten-
ing screws. If plaster/drywall is thicker than
5/8", custom fasteners must be supplied by installer.
CORRECT
A
concrete
plaster/
dry wall
Level and use wall plate as
Drill two 1/4" (6
INCORRECT
A
plaster/
concrete
dry wall
WARNING
Drill holes
fig. 1.3
and insert
anchors.
Place wall
fig. 1.4
bracket over
anchor and
secure with
screw.
After
fig. 1.5
repeating
figure 1.2
tighten all
fasteners.
D
WALL ARM
D
A
C
concrete
wall
C
C
fig. 1.6
