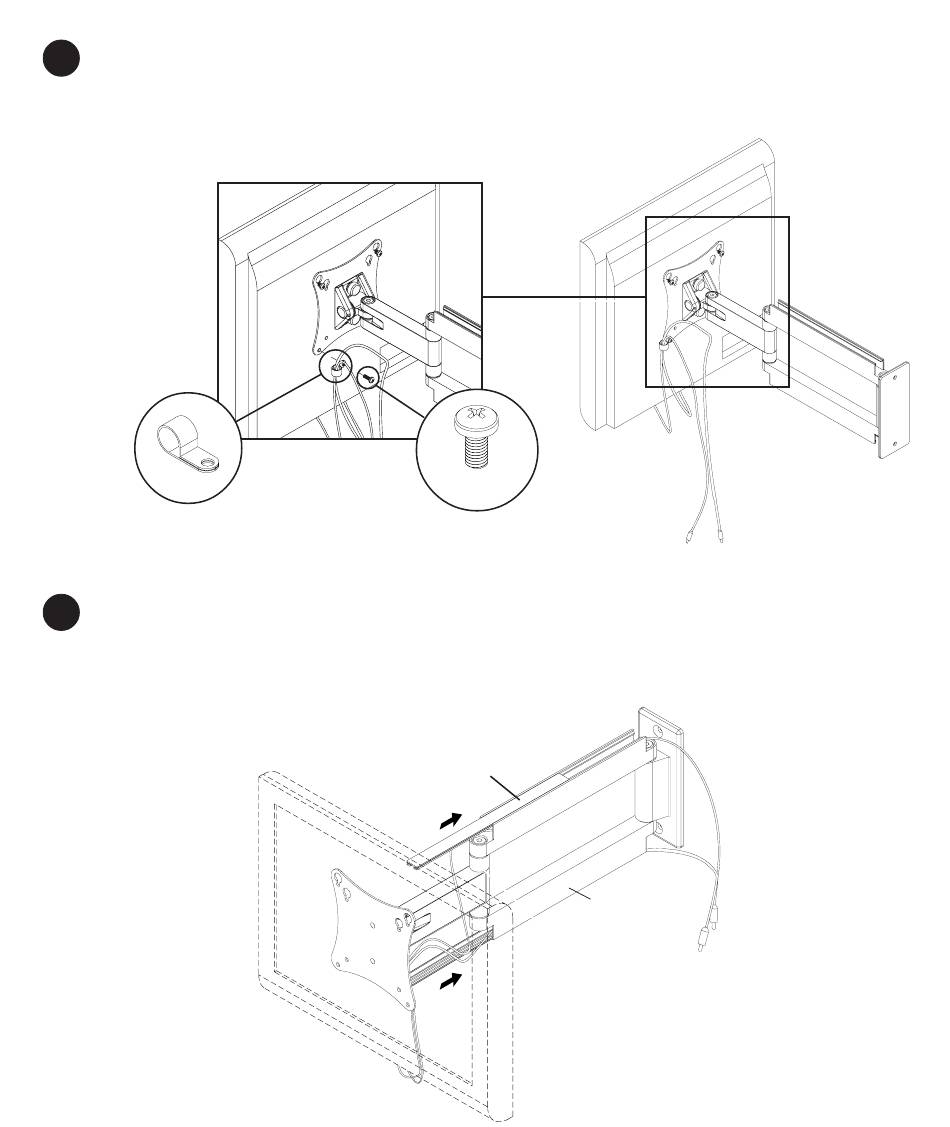

Route cords through center of cord management clip (E). Next, attach cord management clip (E) to adapter plate
4
using M4 screw (F or G) as shown in detail 1. Tighten all four screws (F or G).
Note: A cord management clip (E) was added for additional cords. If you want to use this additional clip (E), remove
the opposite bottom screw and repeat this step on opposite side of adapter plate.
E
Note: Make sure cords have enough slack to allow full movement of the arm.
5
Route cords inside arm slots of wall arm assembly (A). Optional: Run power cord through one side of mount and
signal cable(s) through other side to avoid interference with the signal.
Lock cords into place by sliding cord covers onto mount. Screen may have to be moved for better access for sliding
on the cord covers.
detail 1
F or G
CORD COVERS
A
