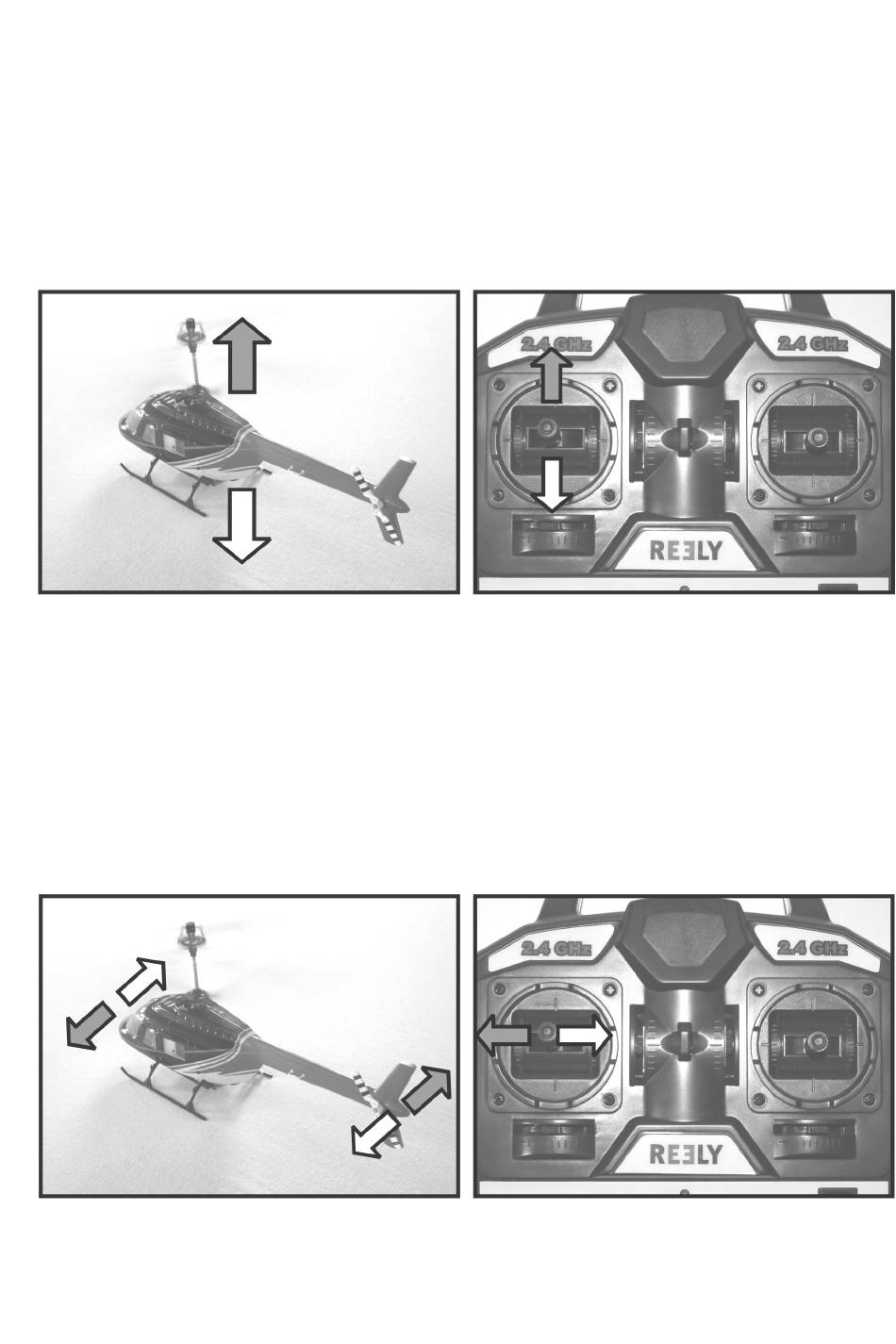

Pitch Function:
The flight height of a helicopter is affected by the pitch function. The control is effected with the left control stick (see
figure 1, item 12).
To that effect, the control stick can be moved forward and backward. Unlike with other control functions, the stick does
not keep springing back to the centre position. Regulation of the flight altitude will be achieved by concurrent speed
change of the two rotors.
Pulling the control stick towards you switches off the motors and the rotors stop. If you push the control stick forward,
the rotors run and increase the speed according to the position of the stick. When the control stick reaches the centre
position, the helicopter should hover.
Tail function:
As the helicopter is equipped with two counter-rotating rotors, there is no torque around the yaw axis (rotor shaft). The
helicopter does not need a functional tail rotor for lateral stabilization.
To allow the model to turn around the yaw axis (rotor shaft), the two main rotors run at slightly different speeds and the
model begins to turn.
Control of the tail function is effected with the left control stick (see figure 1, item 12). If the stick is pushed slightly
towards the left, the tip of the fuselage turns towards the left. If you steer towards the right, the tip of the fuselage turns
towards the right.
40
Figure 7
Figure 8
