SETTING THE DIRECTION OF ROTATION OF THE MOTOR
This can be carried out either from the remote control or the wired control.
Each time one of the two procedures below is carried out, the motor direction of
rotation setting will be changed with respect to the buttons on the remote control
and the buttons on the control unit.

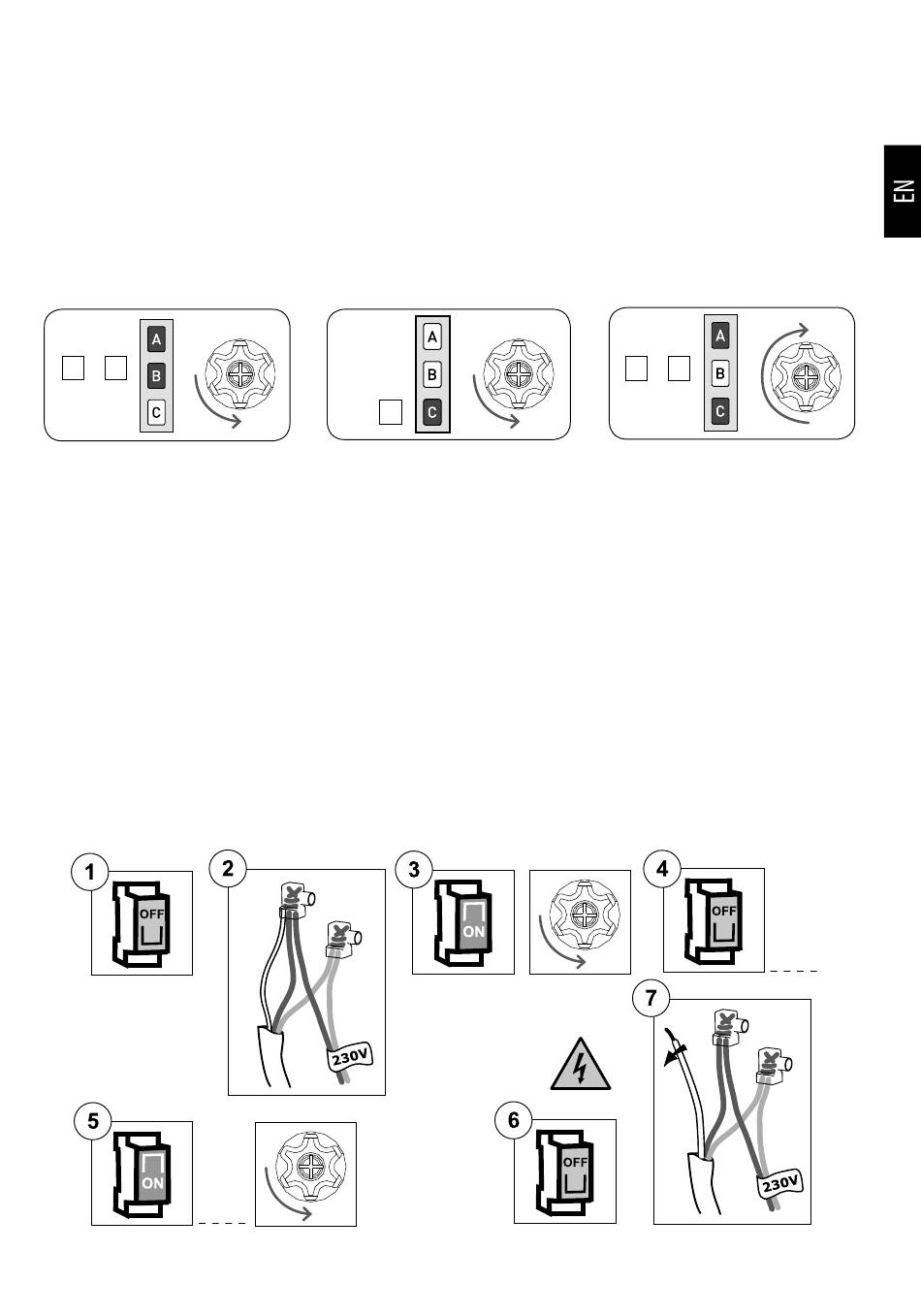

From the remote control:
Tn: Memorised remote control
+ +
A B A C
C
Tn Tn (4 sec)
Tn
From the wired control:
The sequence of operations is as follows:
1)Turn off the power to the motor, for example by using the main switch.
2)Connect the white or black wire of the motor to the brown wire (phase) or to the
light blue wire (neutral).
3) Turn on the power to the motor, which will carry out a short rotation in one
direction.
4)Turn off the power to the motor for at least 4 seconds.
5)Turn on the power to the motor, after approximately 2 seconds note that the
motor will carry out a short rotation in one direction.
6)Turn off the power to the motor, for example by using the main switch.
7)Disconnect the white or black wire from the motor.
4 sec.
2 sec.
