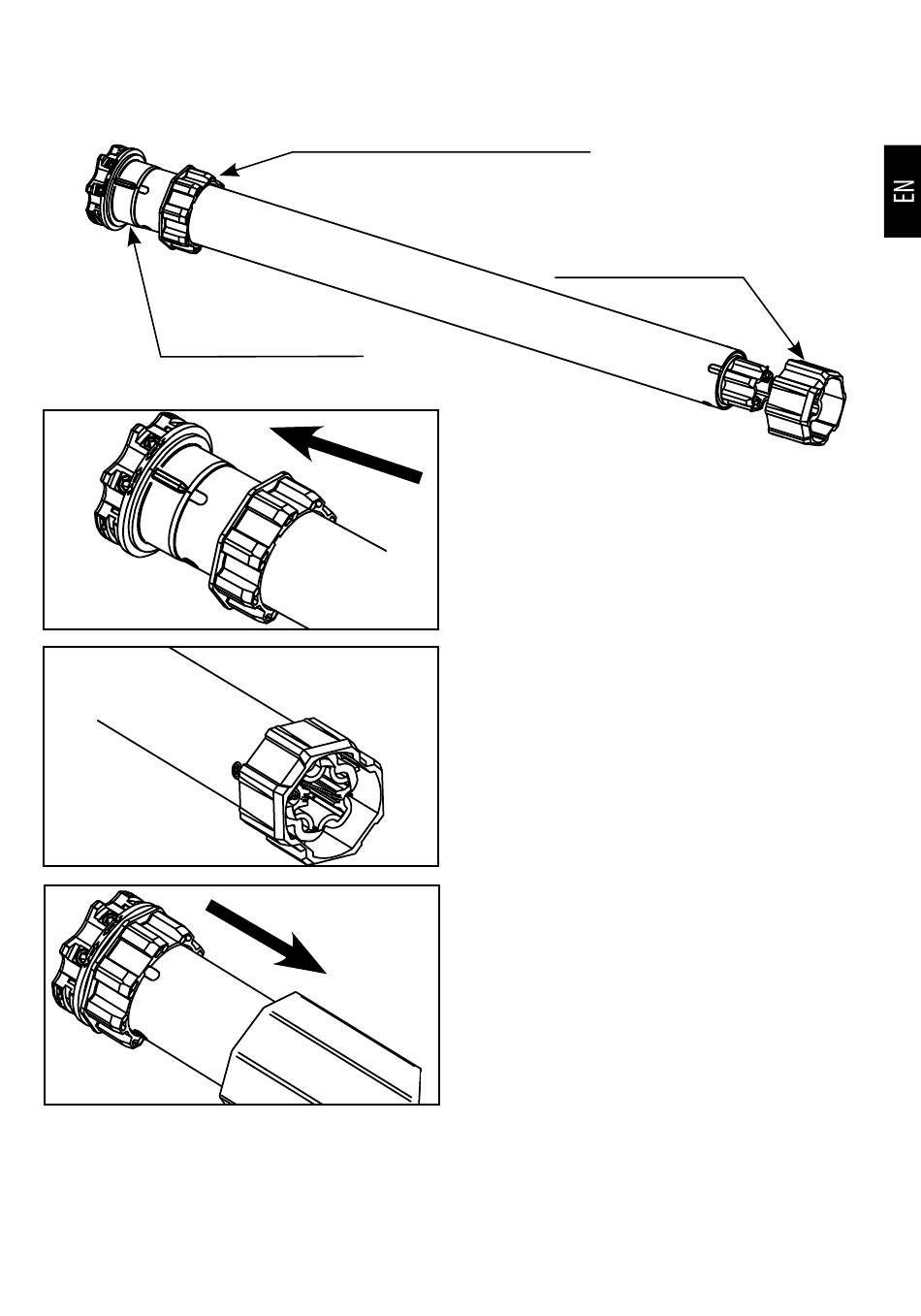

ASSEMBLING THE MOTOR

LIMIT STOP RING NUT
1
2
3
NB: If the tube has a circular section, the drive pulley must be fastened to the tube.
This must be carried out by the installer. For other types of profile, it is optional to
fasten it to the tube, even if it is strongly recommended to do so.
TM2 R
LIMIT STOP RING NUT ADAPTER
1. Insert the adapter onto the limit stop
ring nut so that the groove is lined up
with the reference mark and push it on as
far as it will go.
2. Install the drive pulley on the shaft of
the motor until the detent spring clicks.
3. Insert the motor completely into the
winding tube.
19
DRIVE PULLEY
