MEMORISING THE FIRST REMOTE CONTROL
This can only be carried out when the motor is new, or after the memory has been
completely erased.
Only switch power on to one motor at a time when doing this.
T1: First remote control to be memorised
+
A B
T1
Each time the motor is switched on, you have up to 3 hours in which to memorise
the first remote control. Once this time has elapsed, it is no longer possible to
memorise the remote control. To reset the timer of the function, simply switch
the motor off and on again.
NB: Until the remote control has been memorised, the wired control of the motor
will operate in "dead-man" mode.
LIMIT STOP ADJUSTMENT
+
-

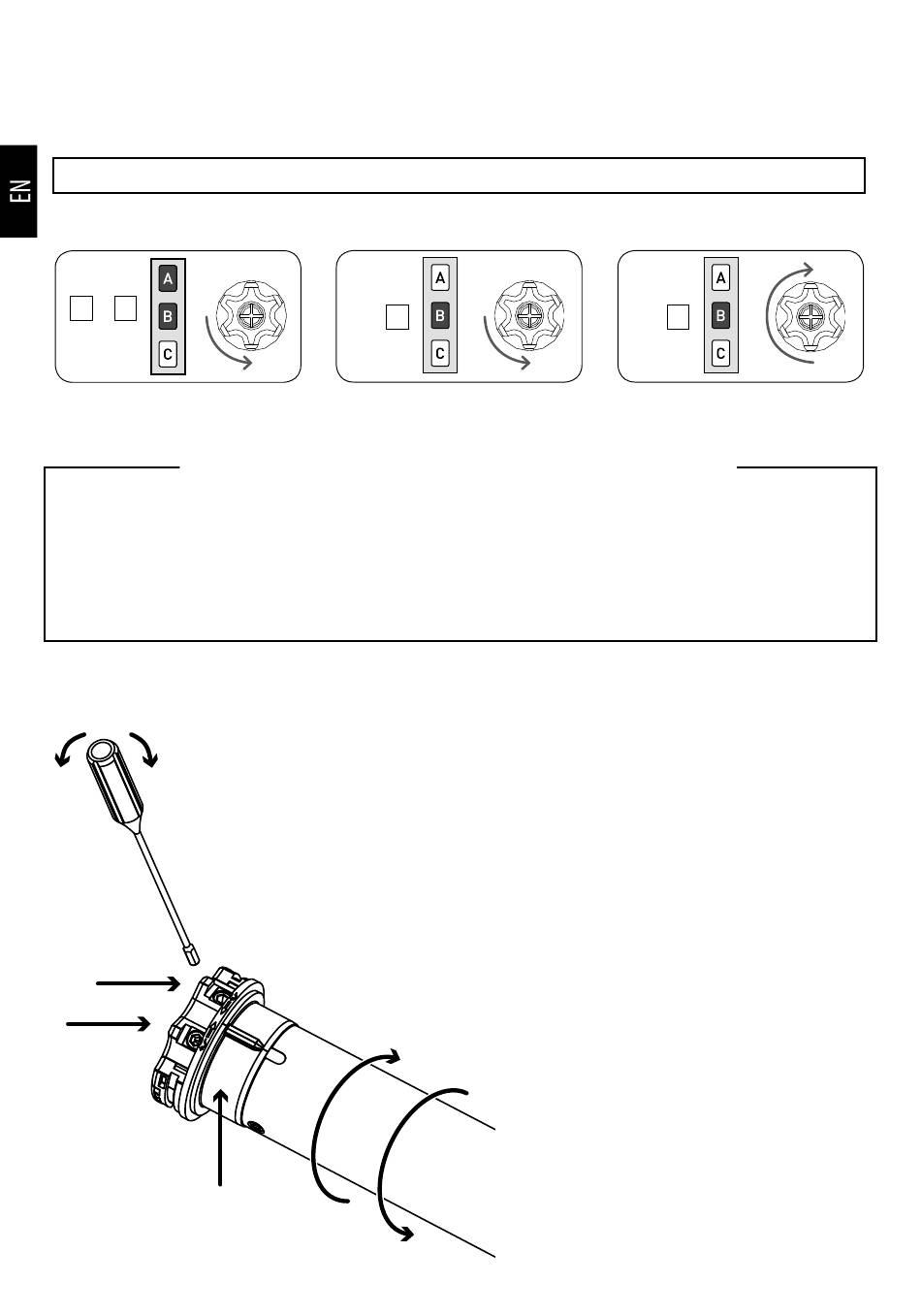

1. In order to understand which of the two screws to use, simply
look at the direction of rotation of the limit stop ring nut: if the limit
B
A
LIMIT STOP RING NUT
TM2 R
B
AUTOMATIC DISABLE FUNCTION
FIRST REMOTE CONTROL MEMORISATION
stop ring nut that is moved by the roller rotates in direction A, use
adjustment screw A to adjust the limit stop in that direction. If it
moves in the opposite direction (B) use adjustment screw B.
2. Operate the screen or shutter in the direction in
which you wish to adjust the first limit stop. After
A
T1
a few turns, the motor stops at the pre-set
limit stop.
B
3. Turn the adjustment screw accord-
ing to the direction of rotation (point
1) in the + direction until the required
position is reached.
4. Reverse the direction of rotation
of the motor and adjust the second
limit stop.
24
B
T1 (2 sec)
