Electrical
Permanent Heat Disable
The fireplace heater can be
permanently disabled by removing the
electronic jumper on the main control
board. Disable the heater before any
additional installation takes place.

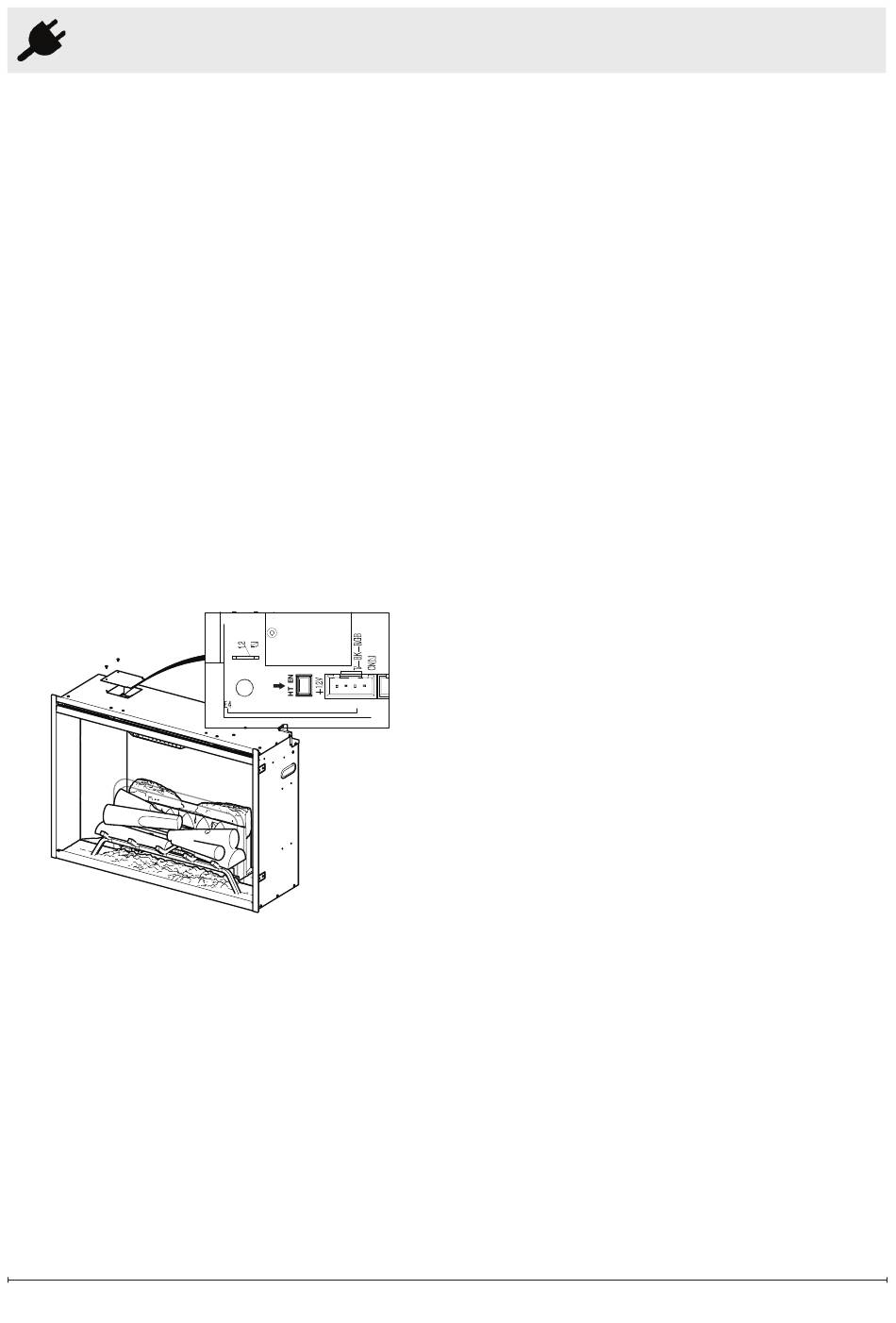

To permanently disable the heater:
1.
Locate and remove the panel on the
top left of the unit.
2
. Pull out the electronic jumper
(shunt), on the on the left side of
the screw in the right corner of the
board. The label beside the jumper
is "HT EN".
3.
Reinstall the previously removed
panel.

Hard Wire Installation

1.
Allow 8" (20.3 cm) of service cable
for connecting the power supply
wires to the junction box on the
unit when installing before finishing
the wall. Allow up to 4 ft (122 cm)
of service cable for connecting the
power supply wires to the junction
box when installing after finishing
the wall.
2
. Wire a dedicated, properly fused
circuit with a 15 A rating.
3
. Feed the service cable through the
electrical cover on the back of the
unit and secure using a 1/2"
(1.3 cm) approved strain relief
connector.
4
. Remove the outer jacket and strip
the individual conductors 1/2"
(1.3 cm) from the end.
5.
Follow the instructions pertaining to
your specific installation.
6
. Wiring inspection can be done from
the front of the unit: remove the
access panel, to the right of the
controls, to access the service cable
and wires from the unit.
