Electrical
Direct Power Wiring (120 V)
All wiring must be completed prior to
installing the electric fireplace.
Use 2-conductor wires with ground
(3 wires total) from the power supply
(breaker panel) to the junction box on
the electric fireplace.
To install 120 V direct power wiring:
1.
Pull out the RED-N, BLACK, and
GROUND-G wires.
2.
Connect N (white) and N (red) in the
electric fireplace to the neutral wire
from the power supply.
3.
Connect L (black) wire from the
electric fireplace to the live wire from
the power supply.
12

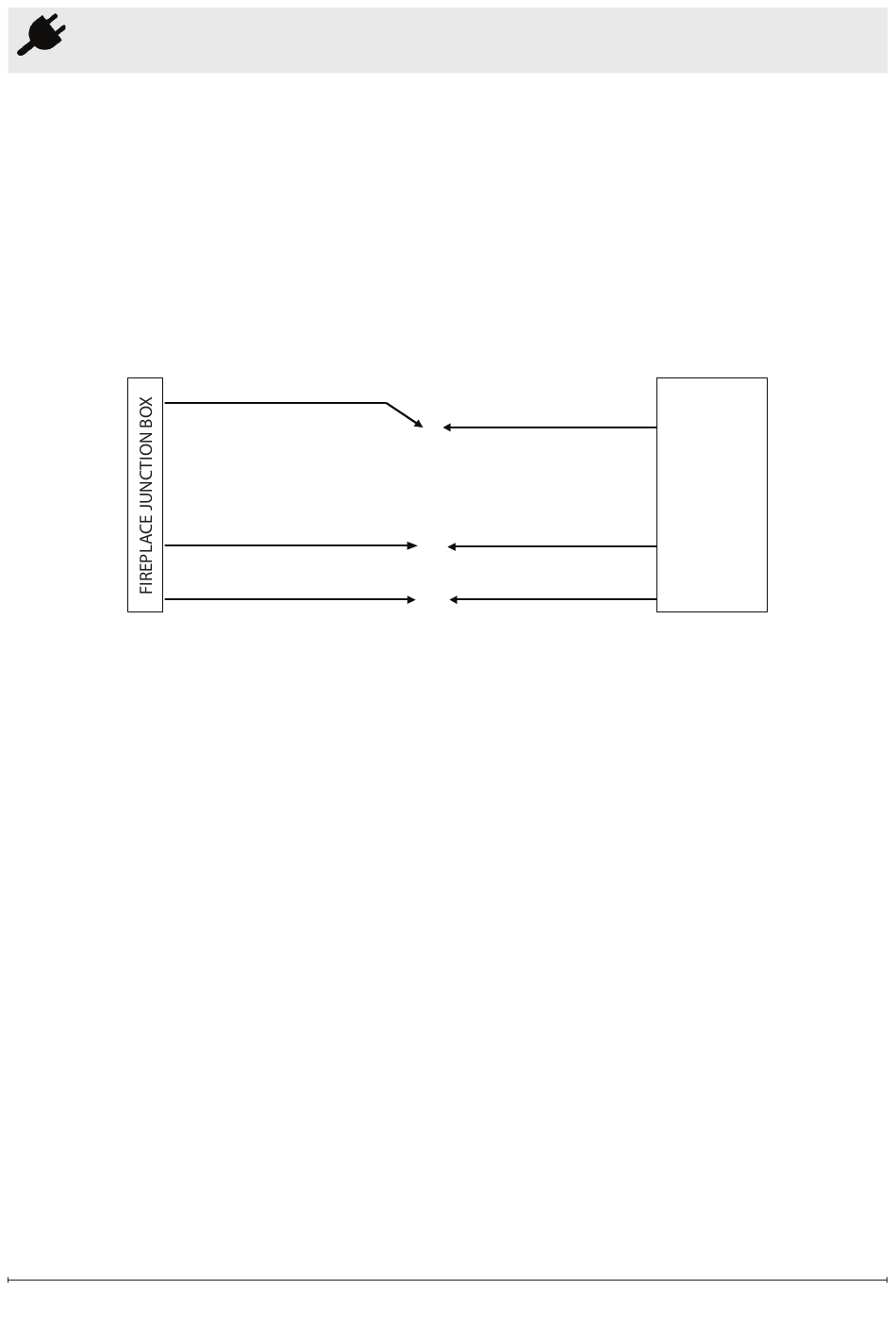

RED - N
BLACK
GROUND - G
WHITE - N
BLACK - L1
GROUND - G
4.
Connect the G (green) ground wire
from the electric fireplace to the
ground from the power supply.
5
. Insert all the wiring back into the
electric fireplace and secure with a
cable clamp.
6
. Make sure all connections are tight.
120 V
POWER
SUPPLY
BREAKER
PANEL
