Electrical

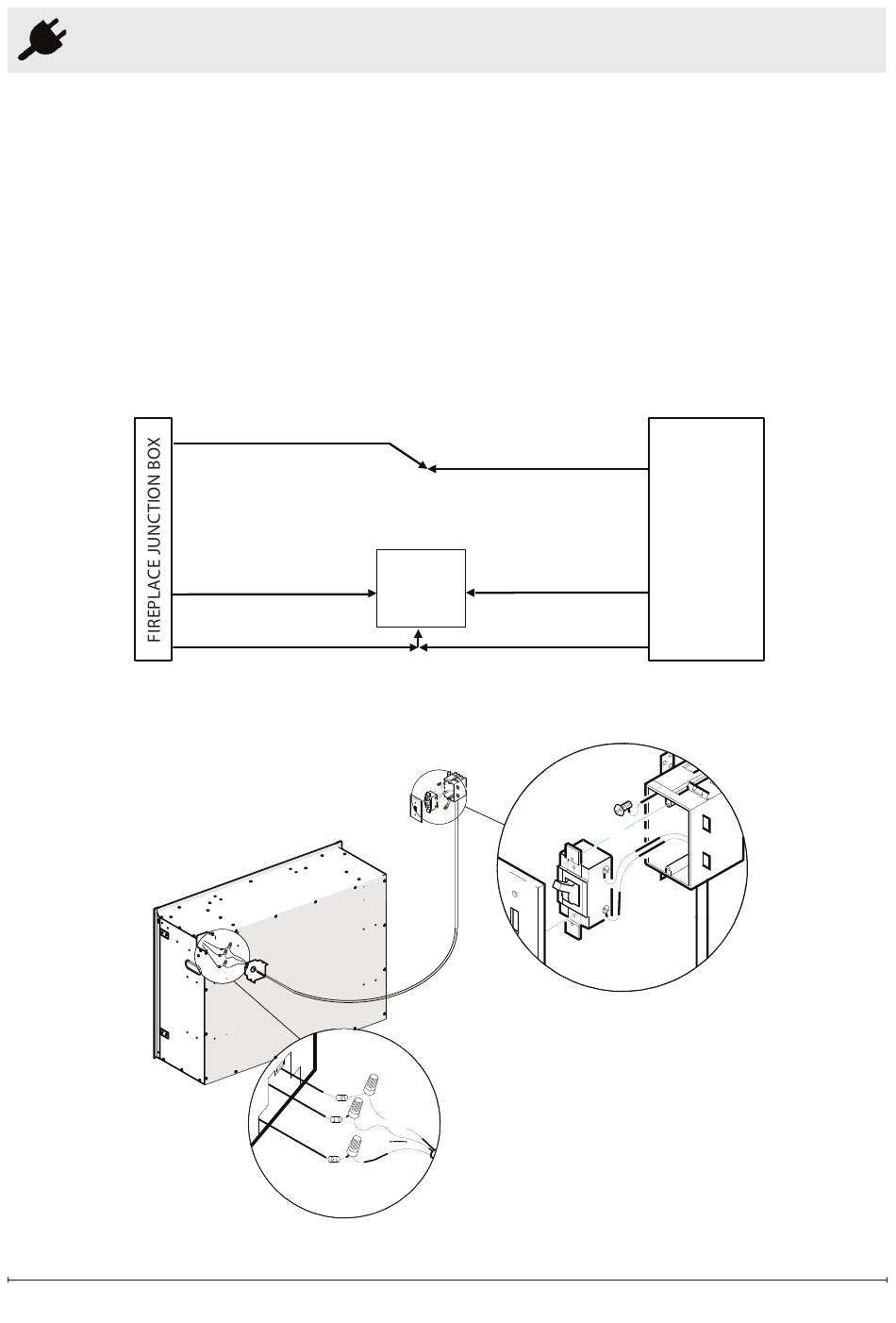

Wall Switch (120 V)
!
NOTE: Use a single pole, single
throw (On/Off) wall switch that is
rated for a minimum of 15 A.
RED - N
BLACK - L
GROUND - G
Before installing the wall switch:
• Connect a 2-conductor wire with
ground (3 wires total) from the
power supply panel to the main
switch wall box.
• Connect a 2-conductor wire with
ground (3 wires total) from the main
switch wall box to the junction box
on the fireplace.
WHITE - N
WALL
BLACK - L1
SWITCH
GROUND - G
120 V
POWER
SUPPLY
BREAKER
PANEL
