Installation

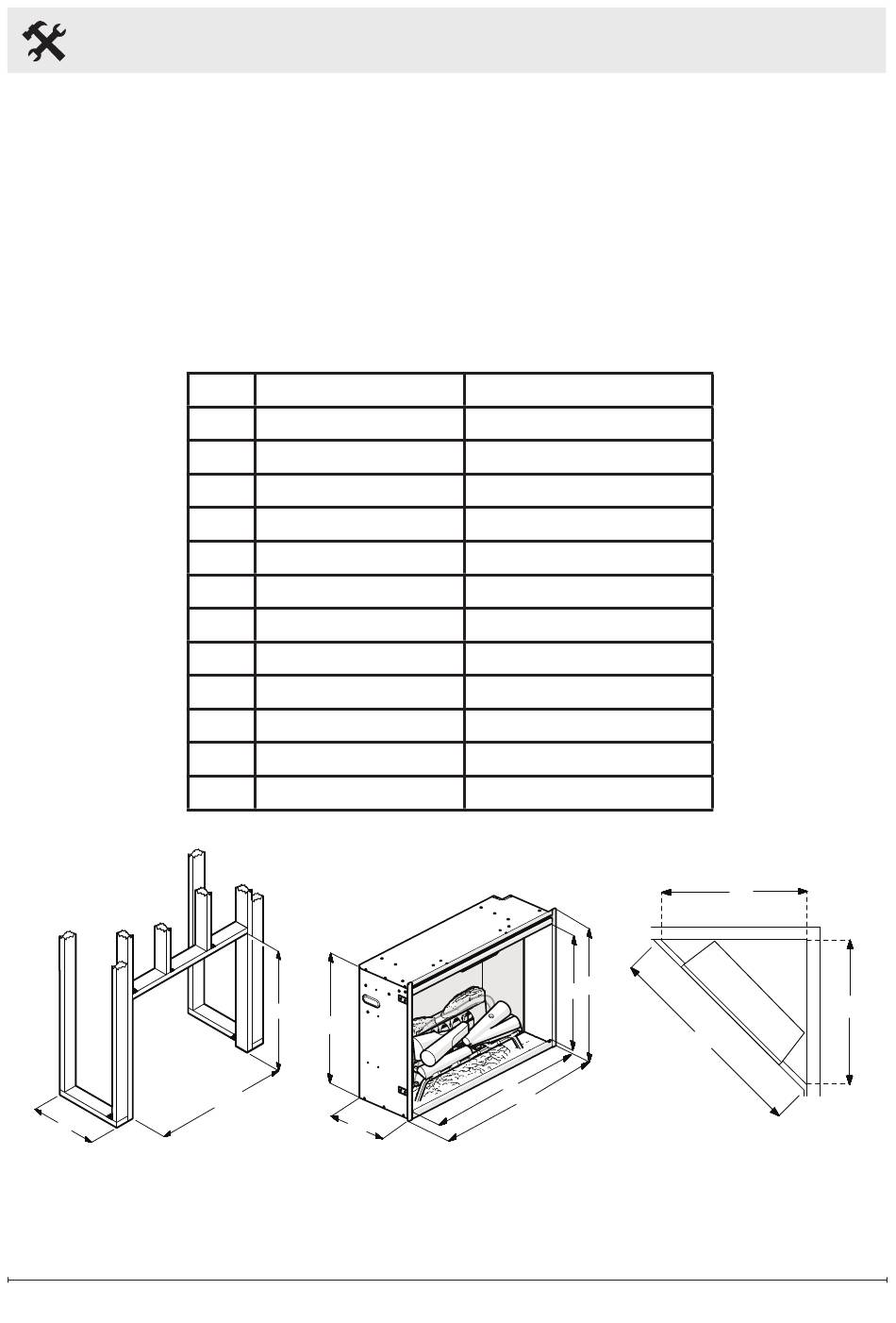

Framing
1.
The Revillusion
Fireplace Insert does not require
any special venting.
2.
To build the rough-in opening, follow
the framing dimensions below.
A
Rough-In Framing Dimensions
Electric Fireplace/
TM
RBF24DLX
A
12 1/2" (318 mm)
B
24 5/8" (626 mm)
C
22 3/8" (568 mm)
D
22 1/8" (562 mm)
E
12 1/8" (307 mm)
F
23 3/8" (595 mm)
G
25 1/4" (640 mm)
H
19" (483 mm)
I
22 7/8" (581 mm)
J
47 3/4" (1213 mm)
K
33 3/4" (857 mm)
L
33 3/4" (857 mm)
C
D
B
E
Fireplace Dimensions
!
NOTE: The materials used for the
finished surround must be cut to
precise dimensions (dimensions
B & C) as the 1/4" (0.6 cm) self
trimming flange is only to create a
finished appearance.
RBF24DLXWC
12 1/2" (318 mm))
24 5/8" (626mm)
22 3/8" (568 mm)
22 1/8" (562 mm)
12 1/8" (307 mm)
23 3/8" (595 mm)
25 1/4" (640 mm)
19" (483 mm)
22 7/8" (581 mm)
47 3/4" (1213 mm)
33 3/4" (857 mm)
33 3/4" (857 mm)
F
G
Dimensions
K
I
H
J
Rough-In Corner
L
7
