Use the RC system transmitter to adjust the sail setting lever to the "sails fully close-hauled" posi-
tion. Run the main sheet over the return clamp bracket, set the sail central, and secure the sheet
with the annular clamp. If you do not need or wish to de-rig the model for transport, we recom-
mend that you route the sheet through the holes in the sleeve, in a similar way to the forestay, and
then secure it with a knot (also applies to the jib).
•Run the jib sheet through the hole in the end of the jib boom, and secure it with the annular
clamps. With the mainsail fully close-hauled, set the jib to the "run out slightly" position (approx.
5°).
•Carry out a check of the radio controlled functions. Note that the jib trim only has a very small
range; this is intentional, and is sufficient for the trim function.
•By default the jib trim and the rudder control are as-signed to the right-hand stick unit, with sail
control on the left-hand stick. If you wish to change this arrange-ment, you will need to re-connect
the servo leads at the receiver.
•Install new dry cells, or fully charged rechargeable cells, and check that everything works accor-
ding to your wishes. You can now place the canopy on the cockpit, secure it with the latches, and
launch the boat for its maiden run.

Binding and connecting receiver

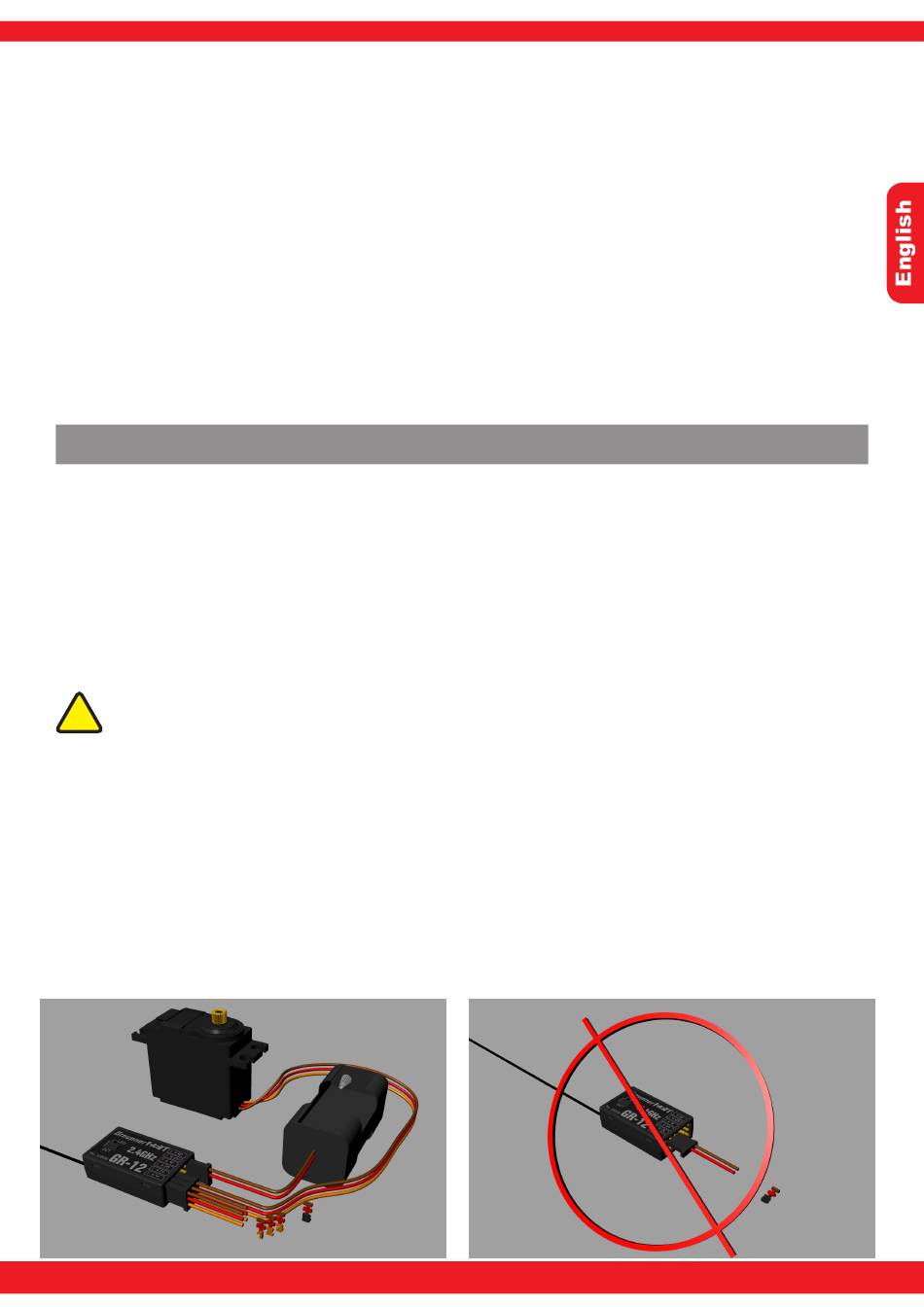

Plug the servos into the row of sockets on the right-hand end of the receiver. The connector sys-
tem is polarised; note the small chamfer on one edge. Never use force - the plugs should engage
easily and fully. The socket polarity is also marked on the case: brown wire (-), red (+) and orange
(signal).The servo sockets of the Graupner-HoTT 2.4 receiver are numbered. It is also possible to
program channel 6 for the sum signal using the SMART-BOX.
Schließen Sie die Empfängerstromversorgung/en vorzugsweise an die äußeren Anschlüsse des
Empfängers an. Über ein V- bzw. Y-Kabel (Best.-Nr. 3936.11) kann an diesen Anschlüssen auch
ein Servo gemeinsam mit der Stromversorgung angeschlossen werden. Other connection op-
tions, please refer to the instructions for Receiver GR-12 HoTT (Order No. 33506)
!
Attention! Plug the connector system never horizontally (see Figure 2)
When you wish to use the Graupner HoTT 2.4 GHz receiver with a particular transmitter, the first
step must always be to "bind" the unit to "its" Graupner HoTT 2.4 GHz RF module (transmitter).
When binding is required, this is the procedure:
(all steps in the instructions from the transmitter and receiver described in more detail):
• Turn on the transmitter and receiver (the receiver is turned on when the battery pack
have connected and have set the power switch to on)
• Press the SET button on the receiver for more than 3 seconds, the green LED stops flashing.
• Now start the binding function on the transmitter (see transmitter manual), after about 1 s, the
Receiver attached and the LED in the receiver turns solid green.
• If the binding process is faulty expired, the LED on the transmitter red instead of blue
and the LED in the receiver does not light. Then repeat the process.
