e) Inserting the drive battery
Caution!
The drive battery must not yet be connected to the speed controller. First switch on the transmitter, see
chapter 9. c) and 9. d).

Important!

This vehicle is only suitable for use with a 6-cell NiMH battery (nominal voltage 7.2 V) or a 2-cell LiPo bat-
tery (nominal voltage 7.4 V).
When using a drive rechargeable battery with more cells, there is a danger of fire resulting from the speed
controller overheating. In addition, the vehicle's drive will be overloaded and thus damaged (e.g. differen-
tial). This will void the warranty!
Check whether the battery has a suitable connector system for the speed controller and that the polarity is
correct (red cable = positive/+, black cable = negative/-).

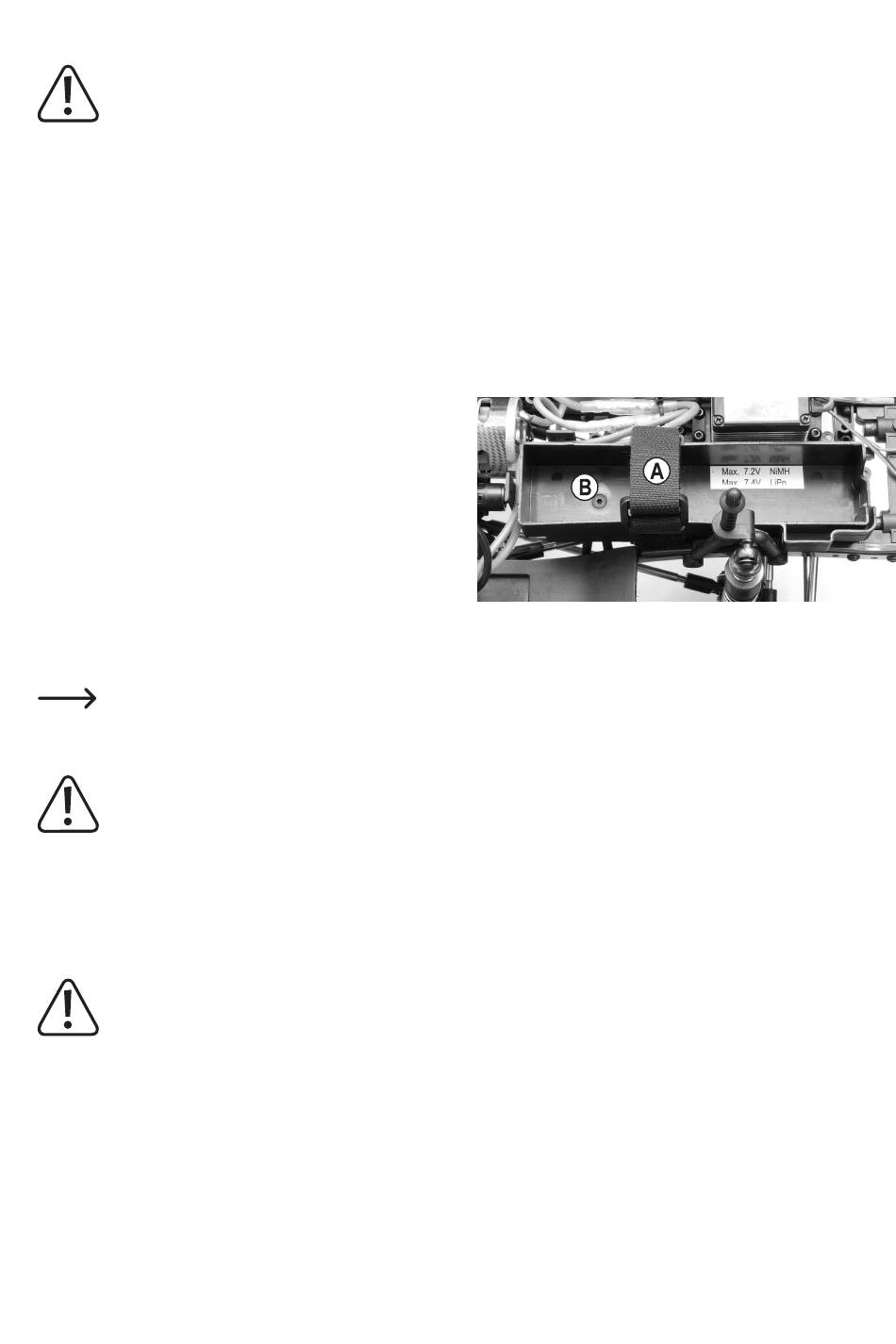

Loosen the strap (A) on the battery holder.
Insert the vehicle battery into the battery holder (B).
If the battery connection cable is very short, the battery
must be inserted into the battery holder so that the con-
nection cable points towards the rear of the vehicle.
Pull the strap (A) tight so that the vehicle battery is se-
curely in place, and then secure the strap.
f) Connecting the drive battery to the speed controller
The speed controller does not have a conventional slide switch for switching on/off, but an electronic push
button. Therefore, no preliminary manual switch-off is required when connecting the drive rechargeable
battery to the speed controller.
Place the vehicle on a suitable base (or a start box) so that the wheels can move freely. This ensures that
you will not lose control of the vehicle if the wheels move suddenly (e.g. if the throttle trim is not set cor-
rectly).
Do not reach into the drive. Do not hold the wheels.
Connect the drive rechargeable battery to the speed controller. Ensure that the battery is inserted in the correct polar-
ity (red cable = positive/+, black cable = negative/-). Do not use force when connecting the battery plug to the speed
controller.
Important!
This vehicle is only suitable for use with a 6-cell NiMH battery (nominal voltage 7.2 V) or a 2-cell LiPo bat-
tery (nominal voltage 7.4 V).
Make sure that the cable cannot get into the vehicle's drive or into the steering mechanism. If necessary, use cable
ties to fasten the cables.
42
