2 Toestelbeschrijving

2
Toestelbeschrijving
2.1

Opbouw

14
13
12
11
10

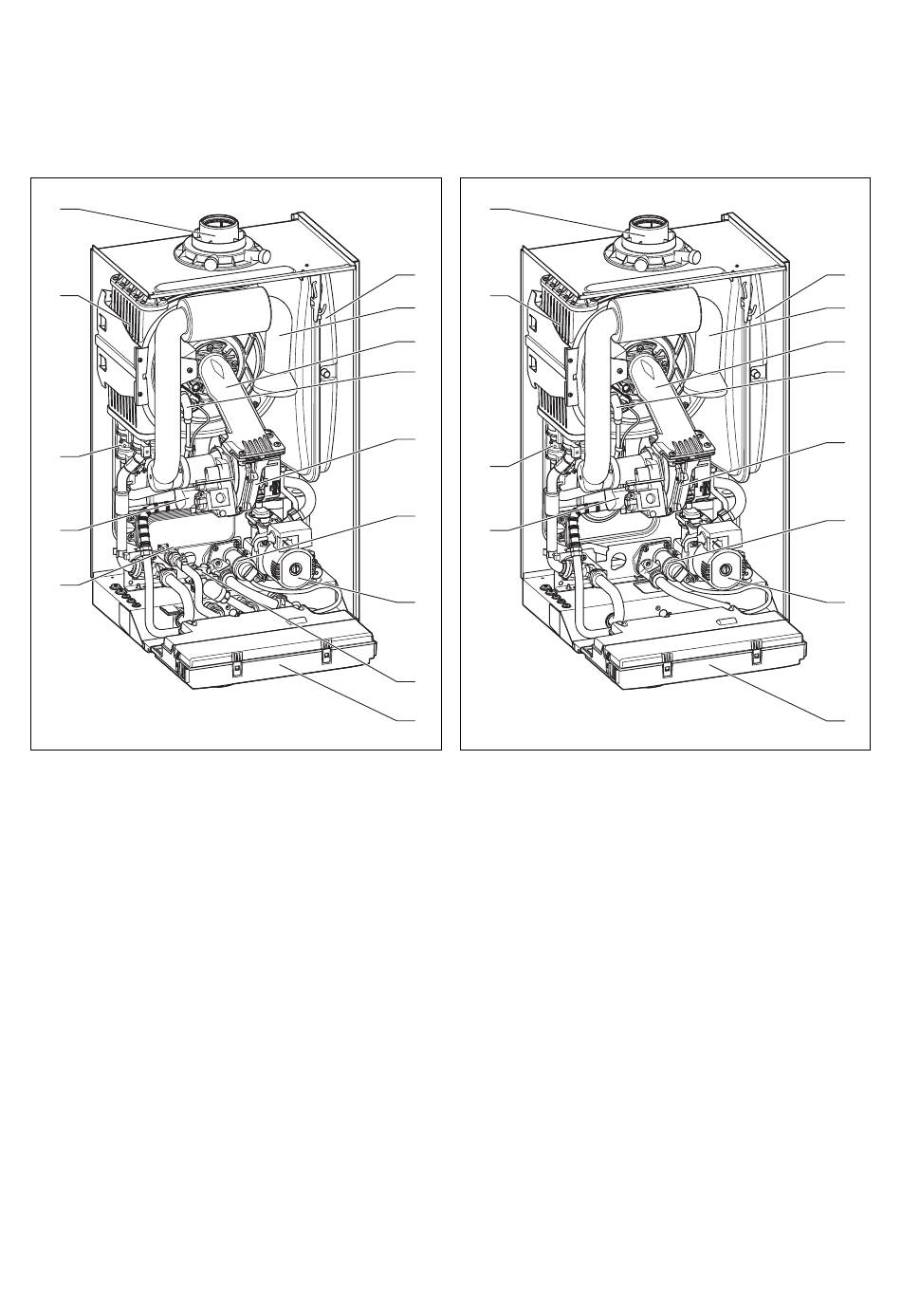

Afb. 2.1 Functie-elementen VCW
1
Expansievat
2 Luchtaanzuigbuis
3 Compacte thermomodule
4 Ontstekingselektrode
5 Ventilator
6 Driewegklep met bypass
7 Pomp
8 Doorstromingssensor (warm water)
9 Elektronicabox
10 Warmwaterwarmtewisselaar
11 Gasblok
12 Druksensor (installatiedruk)
13 Warmtewisselaar
14 Aansluiting voor verbrandingsluchttoevoer/rookgasafvoer
4
14
1
13
2
3
4
5
12
6
11
7
8
9
Afb. 2.2 Functie-elementen VC
1
Expansievat
2 Luchtaanzuigbuis
3 Compacte thermomodule
4 Ontstekingselektrode
5 Ventilator
6 Driewegklep met bypass
7 Pomp
9 Elektronicabox
11 Gasblok
12 Druksensor (installatiedruk)
13 Warmtewisselaar
14 Aansluiting voor verbrandingsluchttoevoer/rookgasafvoer
Installatie- en onderhoudshandleiding ecoTEC - 0020010964_05
1
2
3
4
5
6
7
9
