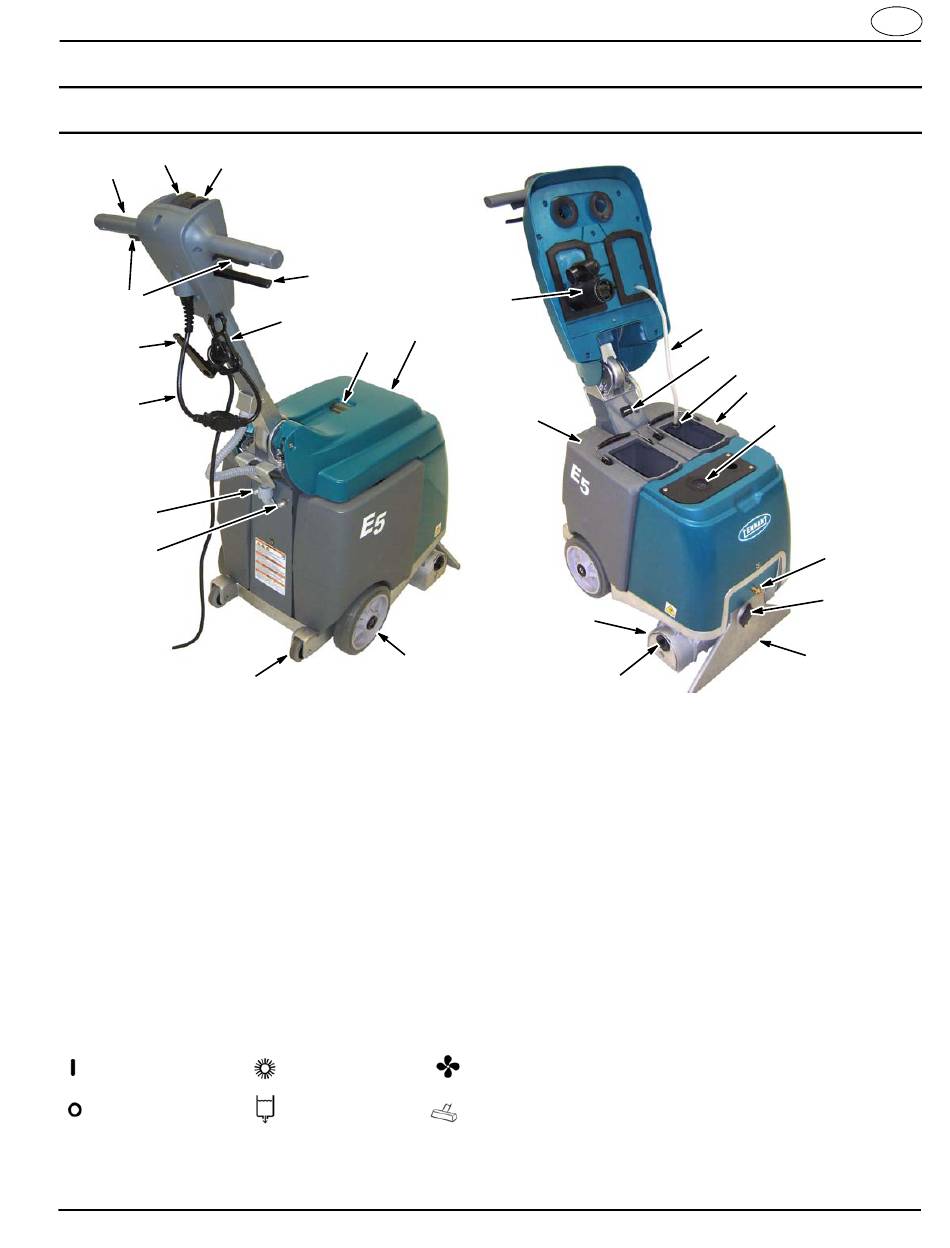

MACHINE COMPONENTS

2
3
1
4
8
6
9
10
14
1. Adjustable Control Handle
2. Main Power On/Off Switch
3. Cleaning Mode Switch
4. Start Triggers
5. Handle Adjustment Lever
6. 50 ft/15 m Power Cord
7. Power Cord Strain Relief Clip
8. Power Cord Hook
9. 15A Machine Circuit Breaker Button
10. 5A Brush Circuit Breaker Button
11. Recovery Window
12. Tank Cover
13. Main Wheels
SWITCH SYMBOLS
Power On
Power Off
Tennant E5 (03- 08)
5
7
12
11
13
Brush
Solution
15
16
25
26
14. Curb Climbing/Tilt Wheels
15. Vacuum Shut- Off Float
16. Recovery Tank
17. Solution Tank
18. Solution Hose
19. Solution Hose Screen
20. Hour meter
21. Vacuum intake Screen
22. Accessory Tool Solution Hose Coupler
23. Accessory Tool Vacuum Hose Port
24. Vacuum Shoe
25. Brush Base
26. Brush Idler Plate Locking Knob
Vacuum
Accessory Tool
OPERATION
EN
18
20
19
17
21
22
23
24
5
