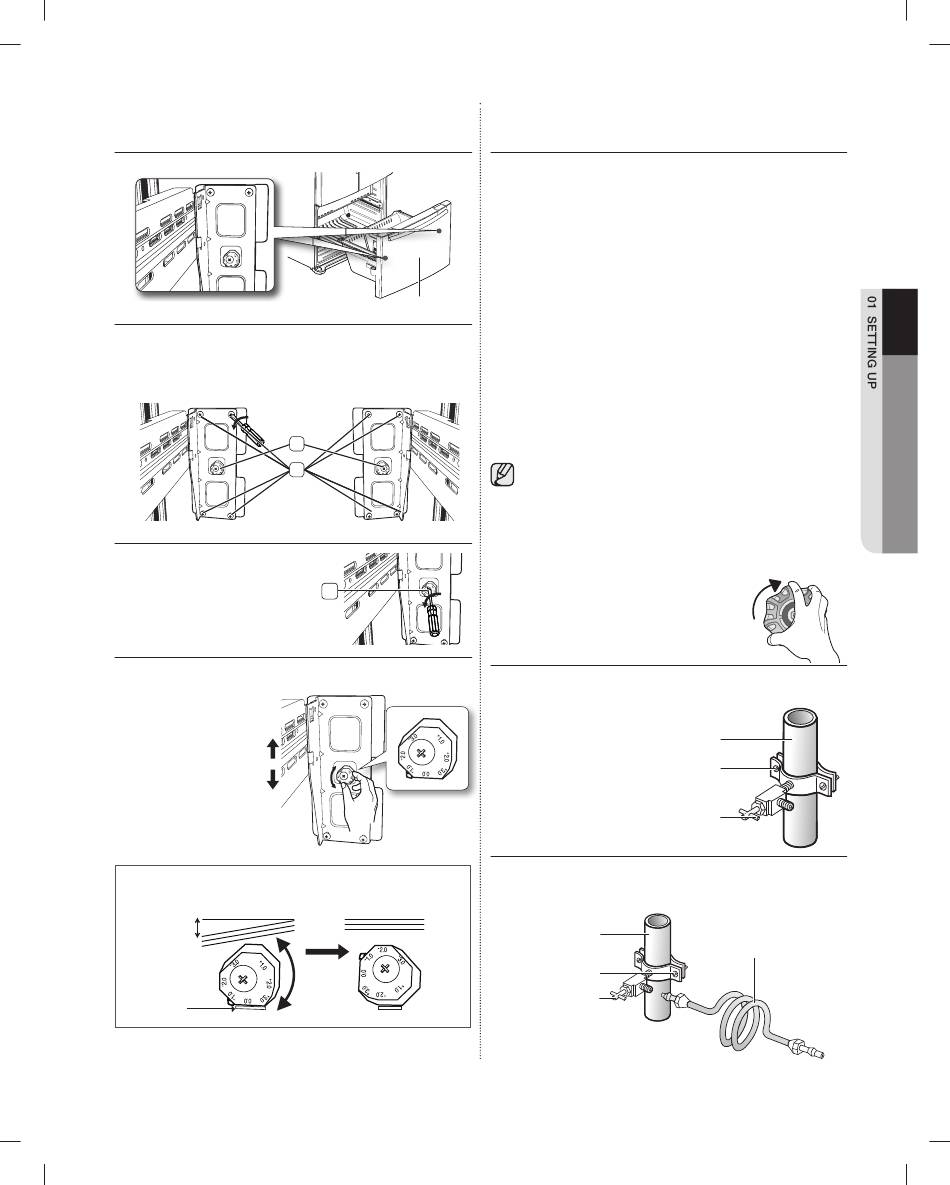

ADJUSTING THE FREEZER DRAWER
LEVEL
Adjustment part
Adjustment part
1. Locate the height-adjuster ( 1 ) in the freezer drawer.
Unscrew the 8 Phillips screws ( 2 ) slightly to loosen
the door.
2. Loosen the controller
screw ( 3 ) with a Phillips
screwdriver (+).
3. Find the best level to align the door slope.
• After adjustment,
tighten the
controller screw
and then the
philips screws.
Example) The slope is about 0.08inch (2mm) as shown below.
Example) The slope is about 0.08inch (2mm) as shown below.
- Rotate the height adjuster to -2.0 to reduce the door slope.
- Rotate the height adjuster to -2.0 to reduce the door slope.
Slope
Slope
Reference
Reference
plane
plane
DA68-02488A.indb 섹션3:09
DA68-02488A.indb 섹션3:09
Freezer Drawer
Freezer Drawer
1
2
3
INSTALLING THE WATER
DISPENSER LINE
A water dispenser with a fi lter is one of the helpful
features on your new refrigerator. To help promote
better health, the water fi lter removes unwanted
particles from your water. However, it does not
sterilize or destroy microorganisms. You may need to
purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water
pressure of 20~125 psi is required.
Under normal conditions, a 170 cc (5.75 oz.) cup can
be fi lled in about 10 seconds.
If the refrigerator is installed in an area with low water
pressure (below 20psi), you can install a booster pump
to compensate for the low pressure.
After you have connected the water line, make
sure the water storage tank inside the refrigerator is
properly fi lled. To do this, press the water dispenser
lever until the water runs from the water outlet.
Water line installation kits are available at extra
cost from your dealer.
We recommend using a water line installation kit that
contains copper tubing and ¼" compression nut.
Connecting to the water supply line
1. First, shut off the main water supply.
2. Locate the nearest cold water drinking line and
install the pipe
clamp and shut
Cold water line
Cold water line
off valve.
Pipe clamp
Pipe clamp
Shut off valve
Shut off valve
3. Connect the water line installation kit to the shut off
valve.
Cold water line
Cold water line
Pipe clamp
Pipe clamp
Shut off valve
Shut off valve
Water line installation kit
Water line installation kit
setting up _09
2012.5.24 8:44:13 PM
2012.5.24 8:44:13 PM
