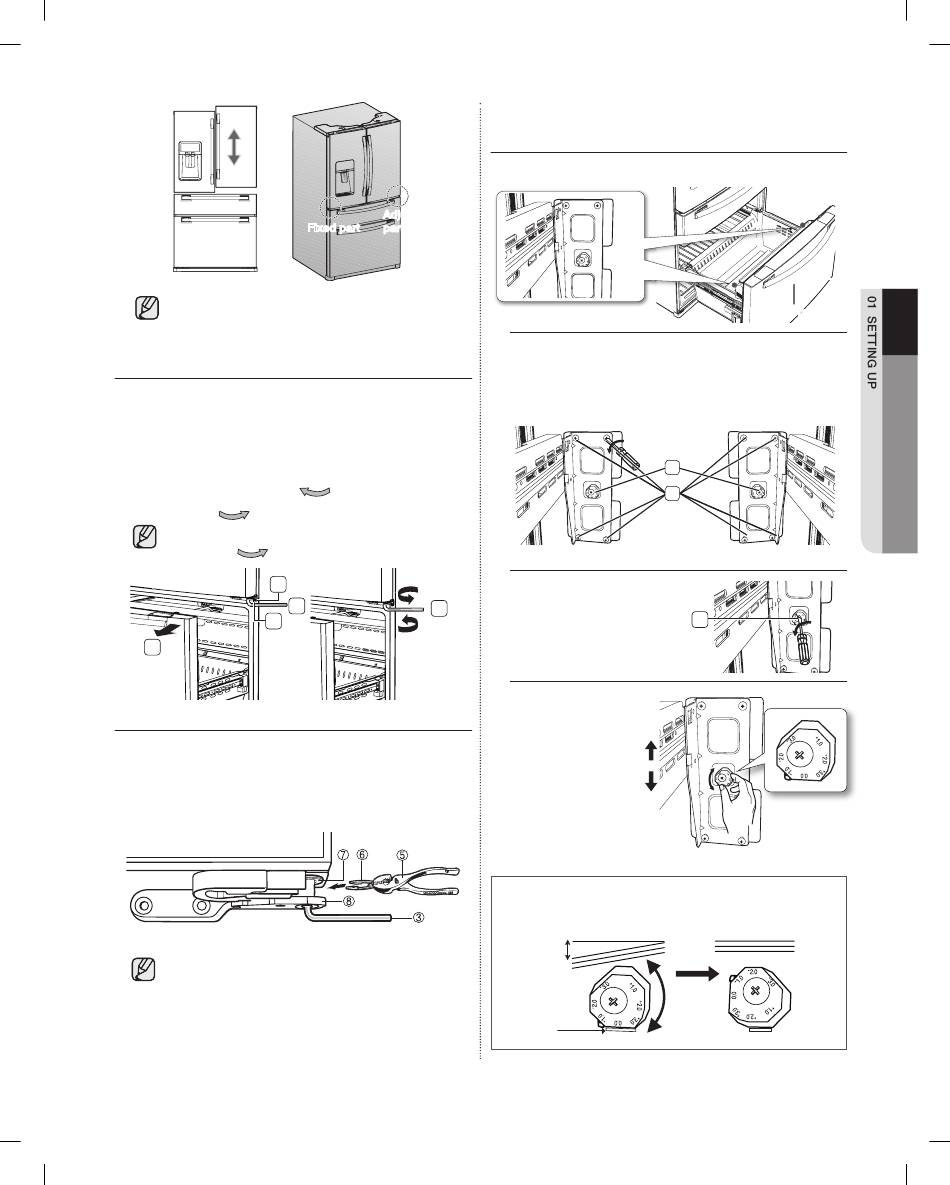

Adjusting The Freezer Drawer Level - Samsung RF4267HA Manuel D'utilisation

The left door is fixed. To make minor
adjustments between doors, adjust only the
right door.
1. Pull out the Convertible door ( 1 ) to expose the
lower hinge ( 2 ).
2. Insert the supplied allen wrench (3/16") ( 3 ) into
the shaft ( 4 ) of the lower hinge.
3. Please adjust the height by turning the hex
wrench ( 3 ) clockwise (
clockwise ( UP
When you turn the hex wrench counter-
clockwise (
1
1. After adjusting the doors, insert the supplied
fastener ( 6 ) using a pliers ( 5 ) in the gap
between the hinge-grommet ( 7 ) and the lower
hinge ( 8 ). The number of fasteners you'll need to
insert depends on the gap.
2 fastener are enclosed with the refrigerator.
The thickness of each fastener is 0.04".
DA68-02481A-10.indb 9
Adjustment
Fixed part
part
DOWN
) or counter-
).
), the door will move up.
2
3
4
ADJUSTING THE FREEZER DRAWER
LEVEL
Adjustment part
1. Locate the height-adjuster ( 1 ) in the freezer
drawer.
Unscrew the 8 Phillips screws ( 2 ) slightly to
loosen the door.
2. Loosen the controller
screw ( 3 ) with a Phillips
3
screwdriver (+).
3. Find the best level
to align the door
slope.
• After
adjustment,
tighten the
controller screw
( 3 ) and then
philips screws.
Example) The slope is about 0.08inch (2mm) as shown below.
- Rotate the height adjuster to -2.0 to reduce the door slope.
Slope
Reference
plane
Freezer Drawer
1
2
3
setting up _09
