5.6.1

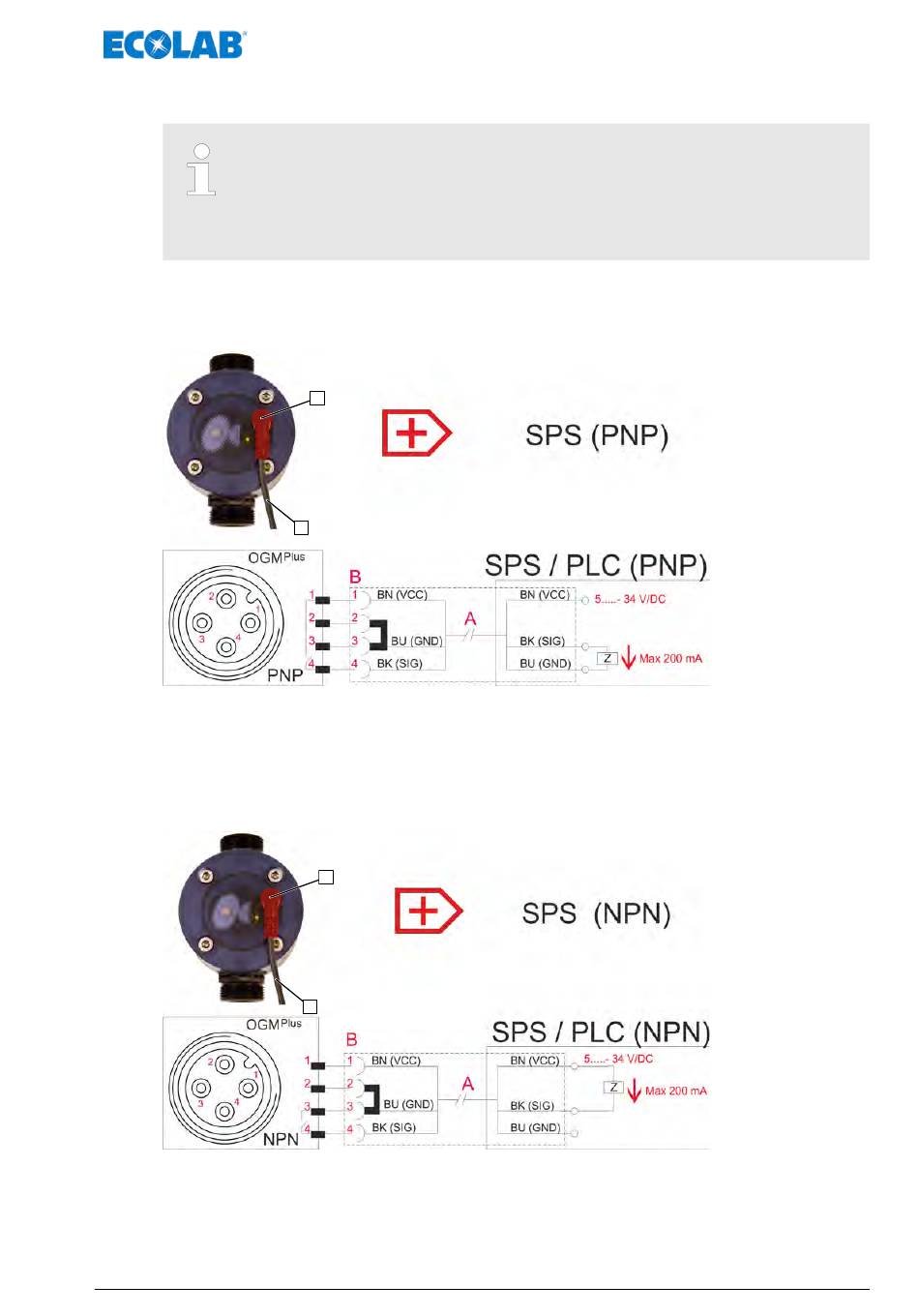

Connection to (SPS) control systems

The OGM
reprogrammed to NPN output if required.
If you use your own PLC cable instead of our prefabricated PLC cable, it is
imperative that a bridge is placed in the connector between PIN 3 and 2.
If this bridge is not present, malfunctions / failures may occur.
5.6.1.1 (PLC) control system with PNP input
A Cable (5 m), Article-No. 418439006
(EBS-No. 10093156)
5.6.1.2 (PLC) control system with NPN input
A Cable (5 m), Article-No. 418439006
(EBS-No. 10093156)
PLUS
is supplied with PNP output. However, it can be
B
A
B
A
B Angular connector, Article-No. 280095
B Angular connector, Article-No. 280095
29
Installation
417102208 Rev. 8-11.2019
