Follow these steps to start using the software RP-110 Control:
1. Check the instrument is ON.
2. Check the connection cable between the instrument and the computer.
3. Run the program by clicking twice on the RP-110 Control icon, which should be
on the desk of the computer.
4. It appears the main window of the program (see figure below).
The main window consists of a menu bar at the top. Below this, it is the tool bar
with two shortcuts icons. At the top right corner there is a flag that symbolizes the
language in use.
At the left side there is a window with the parameters to change the test signals.
At the right side appears a window with graphical representation of test signals. At
this area there is a window with the measurement units, the connecting status, the
serial number and the model.
5. The program checks the USB devices connected to your computer. If the RP-110
is identified then it is shown serial number and model.
Page 20

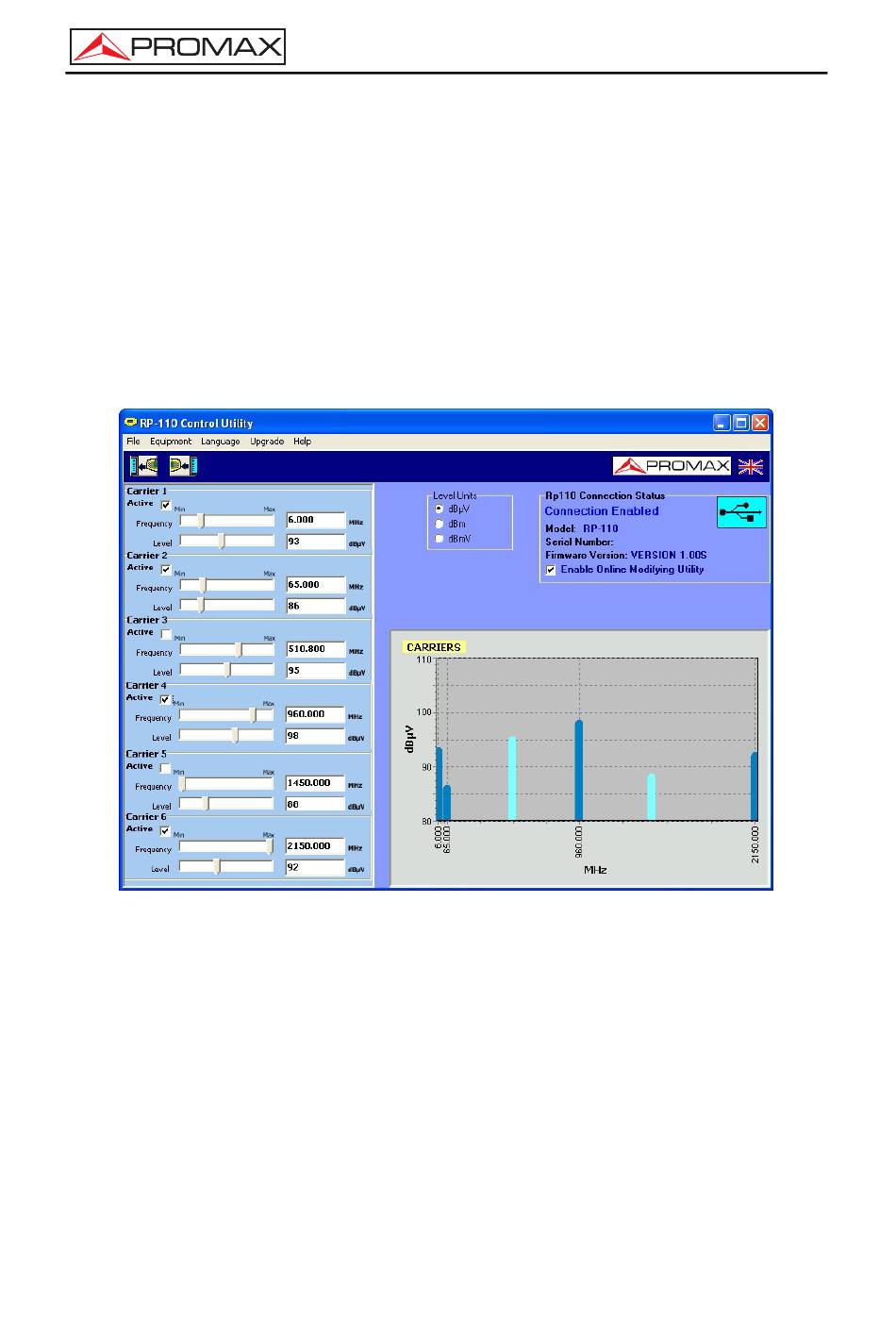

Figure 11.- Main Screen RP-110 Control.
