4.3. Installing heater sensor with excess temperature fuse

Heed Fig. 4 (page 10).
ATTENTION!
Sources of interference impair signal transmission
● Install the heater sensor cables separately from other network and control
cables.
● Protect singly insulated cables with a pipe (double insulation).
1. Install the two 2-pole heater sensor cables 3 into the wall of the sauna
cabin at the installation site of the heater sensor and fix the heater sensor
cables with cable collars.
2. Install the heater sensor to the cabin wall with the two enclosed wooden
screws 2 (16 mm). The optimum position is above the centre of the sauna
heater. Maintain a distance of 15 cm from the cabin ceiling.

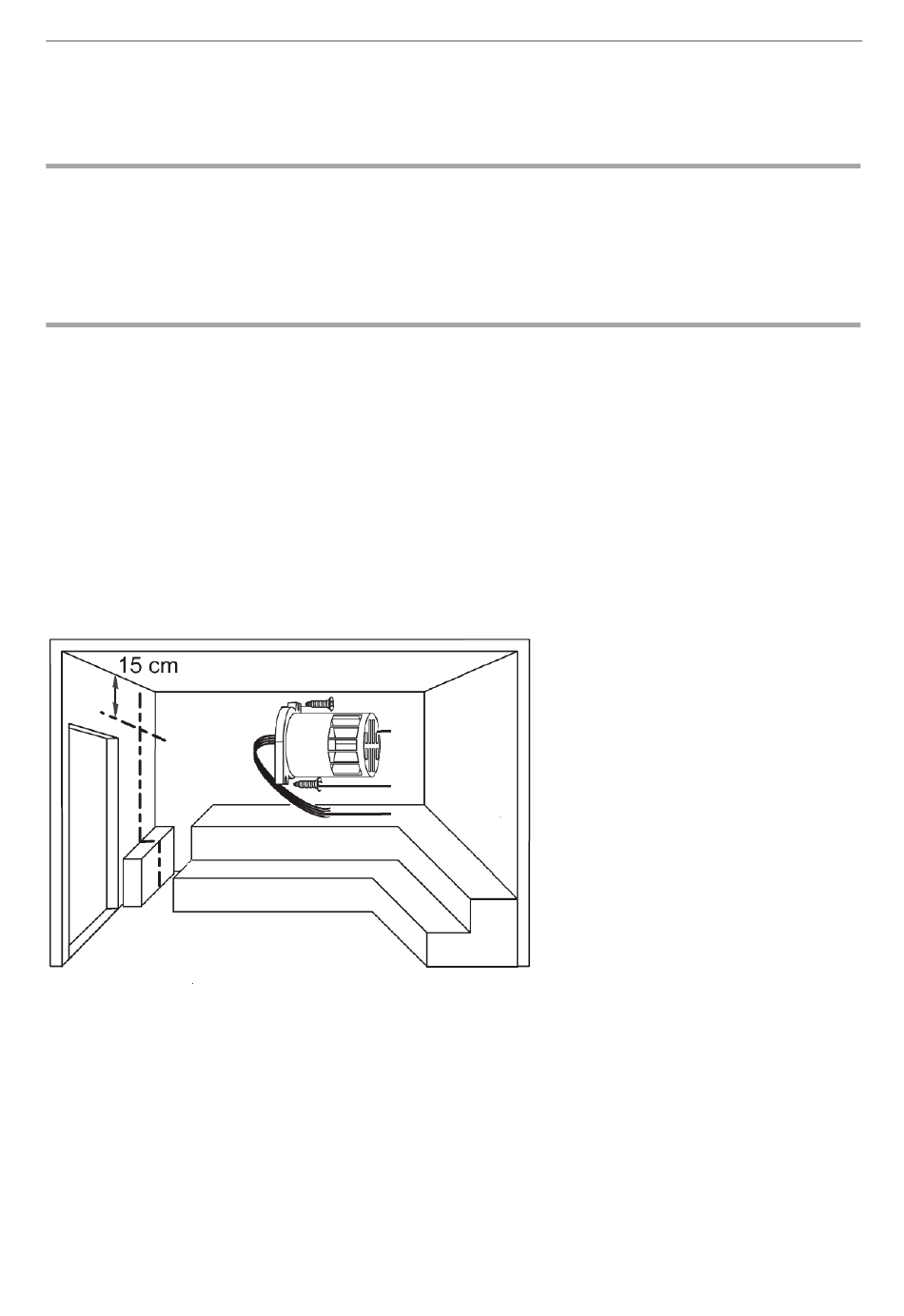

Fig. 4
WORLD OF WELLNESS
1 Heater sensor
2 Wooden screws (16 mm)
3 Heater sensor cables
1
2
3
