HULL
HOOD
FRONT HOOD

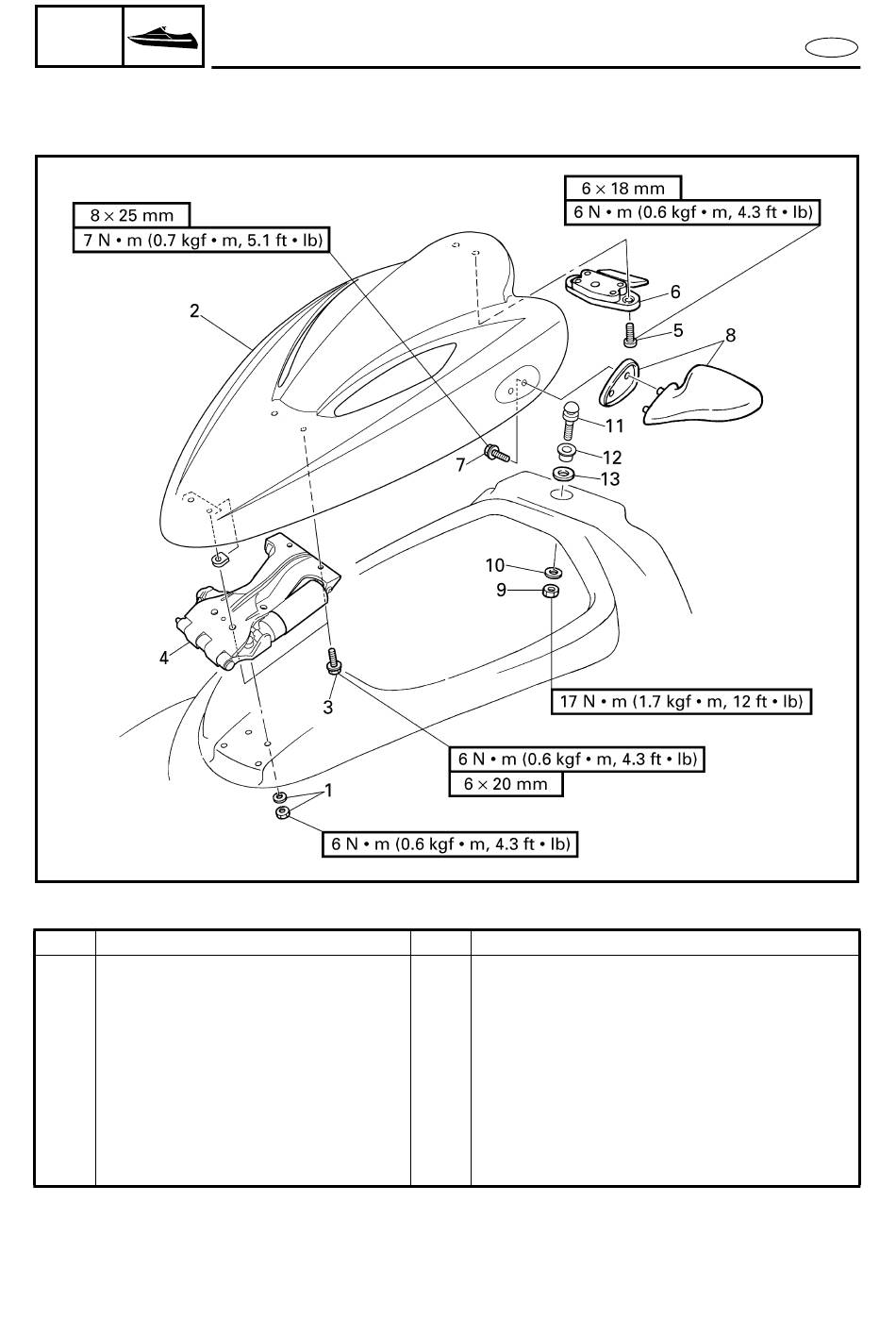

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name
FRONT HOOD REMOVAL
1 Nut/washer
2 Front hood assembly
3 Bolt
4 Hinge assembly
5 Screw
6 Hood lock assembly
7 Bolt
8 Mirror (with seal)
FRONT HOOD
Q'ty
Follow the left "Step" for removal.
4/4
1
4
1
2
1
4
2
8-21
Service points
E
