Overall Dimensions - OEM DOMITOR DM Mode D'emploi

Chapter 2
H= neutral hood
H1= motor-driven hodd height
sizes in mm
Mod. Inside size
L P
430 630 630
630S 630 930
630L 930 630
930 930 930
830 630 630
1230S 630 930
1230L 930 630
Mod. Inside size
L P
435 730 730
635S 730 1080
635L 1130 730
935 1130 1080
835 730 730
1235S 730 1080
1235L 1130 730
GB - 6

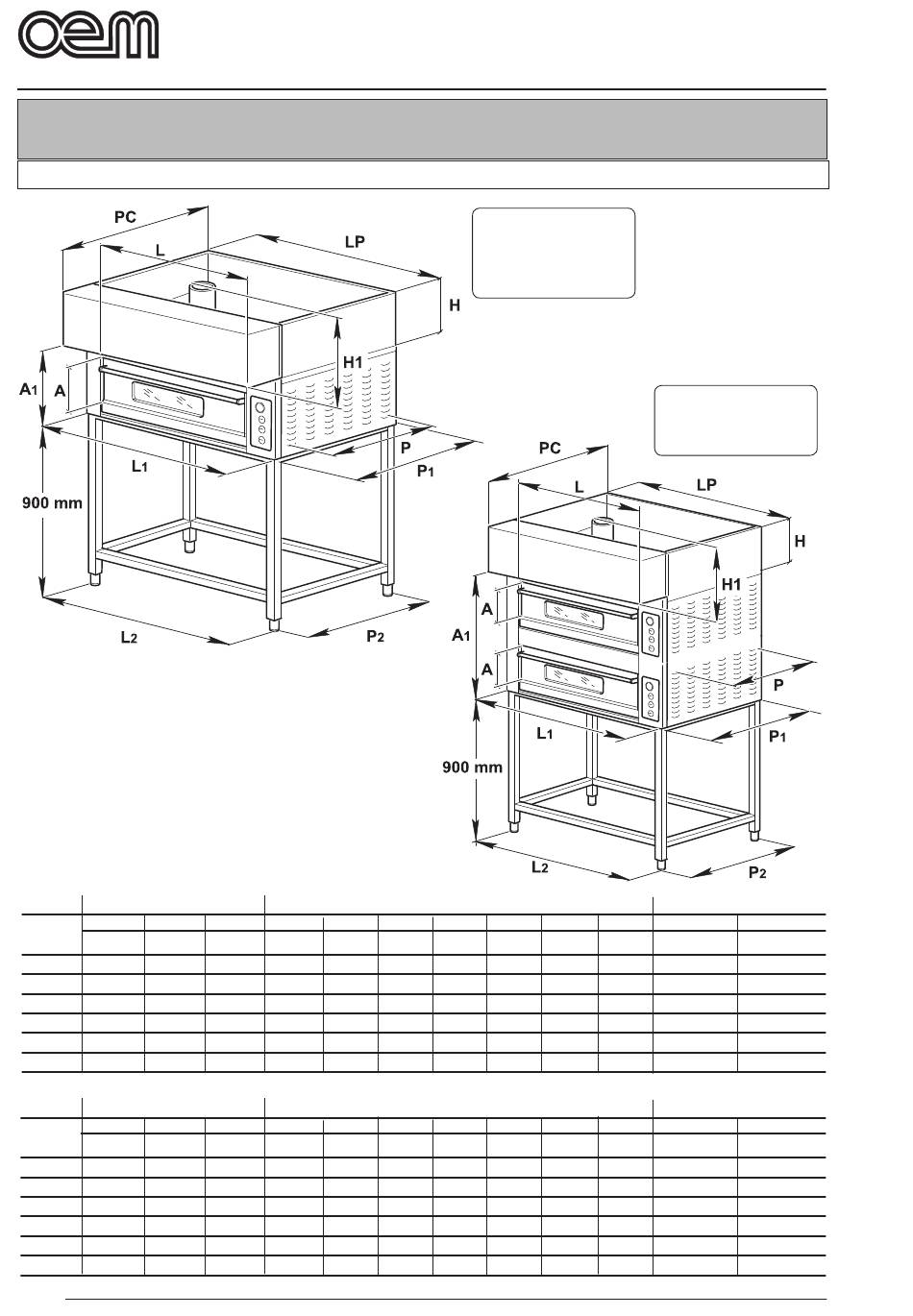

OVERALL DIMENSIONS

A L1 P1
150 950 950 400
150 950 1300 400
150 1250 950 400
150 1250 1300 400
150 950 950 730
150 950 1300 730
150 1250 950 730
A L1 P1 A1
150 1050 950 400
150 1050 1300 400
150 1450 950 400
150 1450 1300 400
150 1050 950 730
150 1050 1300 730
150 1450 950 730
Technical data - Transport and unpacking
430 - 435
630S - 630L
635S - 635L
930 - 935
Outside size
A1 H PC LP
170 900 950
170 1250 950
170 900 1250
170 1250 1250
170 900 950
170 1250 950
170 900 1250
Outside size
H PC LP
170 900 1050
170 1250 1050
170 900 1450
170 1250 1450
170 900 1050
170 1250 1050
170 900 1450
DOMITOR DM/DB
830 - 835
1230S - 1230L
1235S - 1235L
Support
H1 P2 L2
437 900 950
437 1250 950
437 900 1250
437 1250 1250
437 900 950
437 1250 950
437 900 1250
Support
H1 P2 L2
437 900 1050
437 1250 1050
437 900 1450
437 1250 1450
437 900 1050
437 1250 1050
437 900 1450
