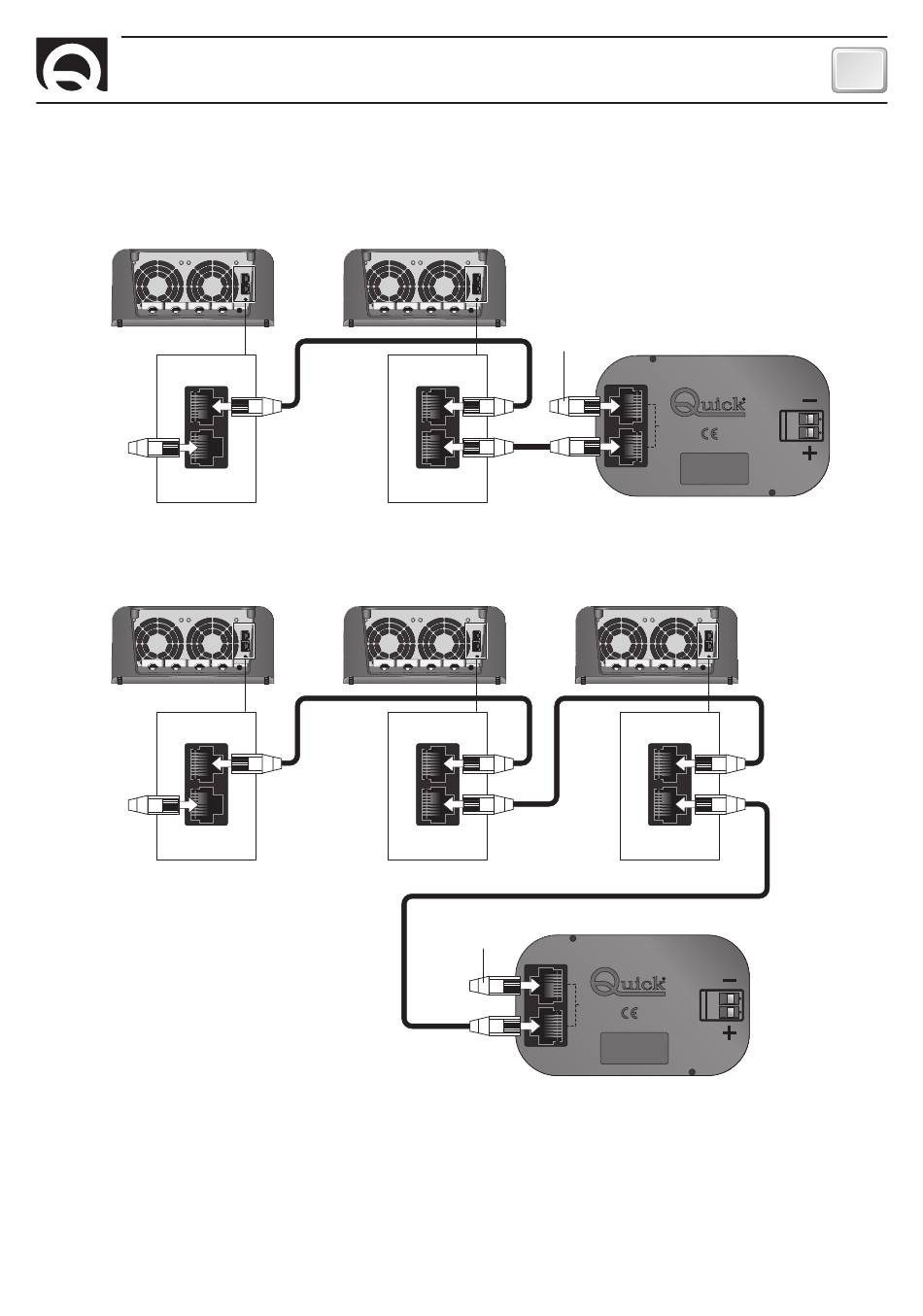

Below is an example of a CAN BUS network connection with 2 or 3 networking battery chargers:
SBC NRG
CAN IN
TERMINATION
CAN OUT
CONNECTOR
SBC NRG
CAN IN
TERMINATION
CONNECTOR
CAN OUT
RDS 1560 - REV001A
CAN IN
CAN OUT
CAN OUT
CAN IN
CAN OUT
CAN OUT
SBC NRG
CAN IN
CAN OUT
TERMINATION
CONNECTOR
CAN IN
SBC NRG
CAN IN
CAN OUT
CAN IN
TERMINATION
CONNECTOR
CAN
INSTALLATION
CAN
RDS 1560
SBC NRG
CAN IN
CAN OUT
CAN IN
CAN OUT
RDS 1560
