OPERATION - NOTIFICATION SIGNS
GB

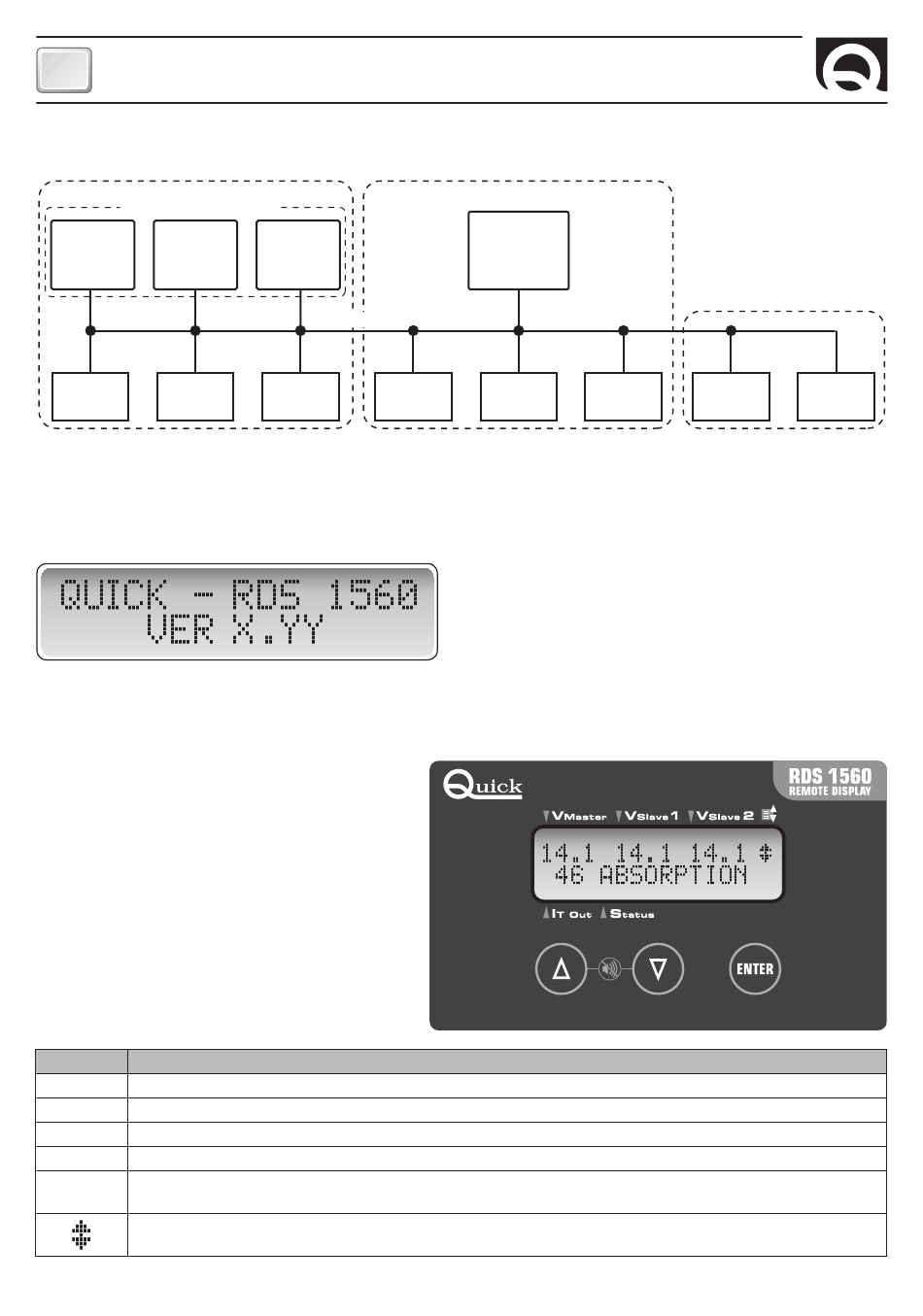

A possible CAN network is illustrated below:
GROUP
UNITS IN PARALLEL
SBC 1100 SBC 1100
NRG FR NRG FR
(PRIORITY 1) (PRIORITY 2)
RDS 1521 KTB4
For more information about battery charger configuration, consult the User's manual for the series SBC NRG battery
charger used.
INSTRUMENT OPERATION
After hooking up the instrument to the power supply, the display shows the following window for 2 seconds:
Where X.YY is the current version of the software.
After 2 seconds the instrument displays the battery charger's information.
Example with SBC 700 NRG FR connected:
The instrument is made-up of at alphanumeric
LCD display and three buttons UP-DOWN-ENTER.
Using these buttons you can navigate the sy-
stem menu, change the parameters and confirm
selections.
By pushing simultaneously for a short period the
p q
buttons and (UP and DOWN), the acoustic
signaling, if activated, indicating the presence of
warning messages or manual reset errors can
be silenced.
FIELD DESCRIPTION
MASTER MASTER output voltage.
SLAVE 1 SLAVE 1 output voltage.
SLAVE 2 SLAVE 2 output voltage.
IT OUT Total current delivered by the battery charger.
Indication of system status
STATUS *
(charging status, generic status, warning messages or problems with automatic reset).
This symbol indicates the presence of multiple messages in the Status field.
* Refer to "messages table" in the NRG series battery chargers manual.
18
A
SBC 1100
NRG FR
(PRIORITY 3)
CAN NETWORK
RDS 1560 RDS 1521
B
GROUP
SBC 750
NRG FR
KTB4 RDS 1560
U
GROUP
TERMINAL
INTERFACE
GSM LCD
RDS 1560 - REV001A
