TROUBLESHOOTING
GB
PROBLEMS REPORTING
If a warning or status message is present, the status field displays the description of the message (refer to "warning and
status messages" table in the NRG series battery chargers manual).
If there is a problem with automatic reset, the status field displays the description of the problem (refer to "problems with
manual reset" table in the NRG series battery chargers manual).

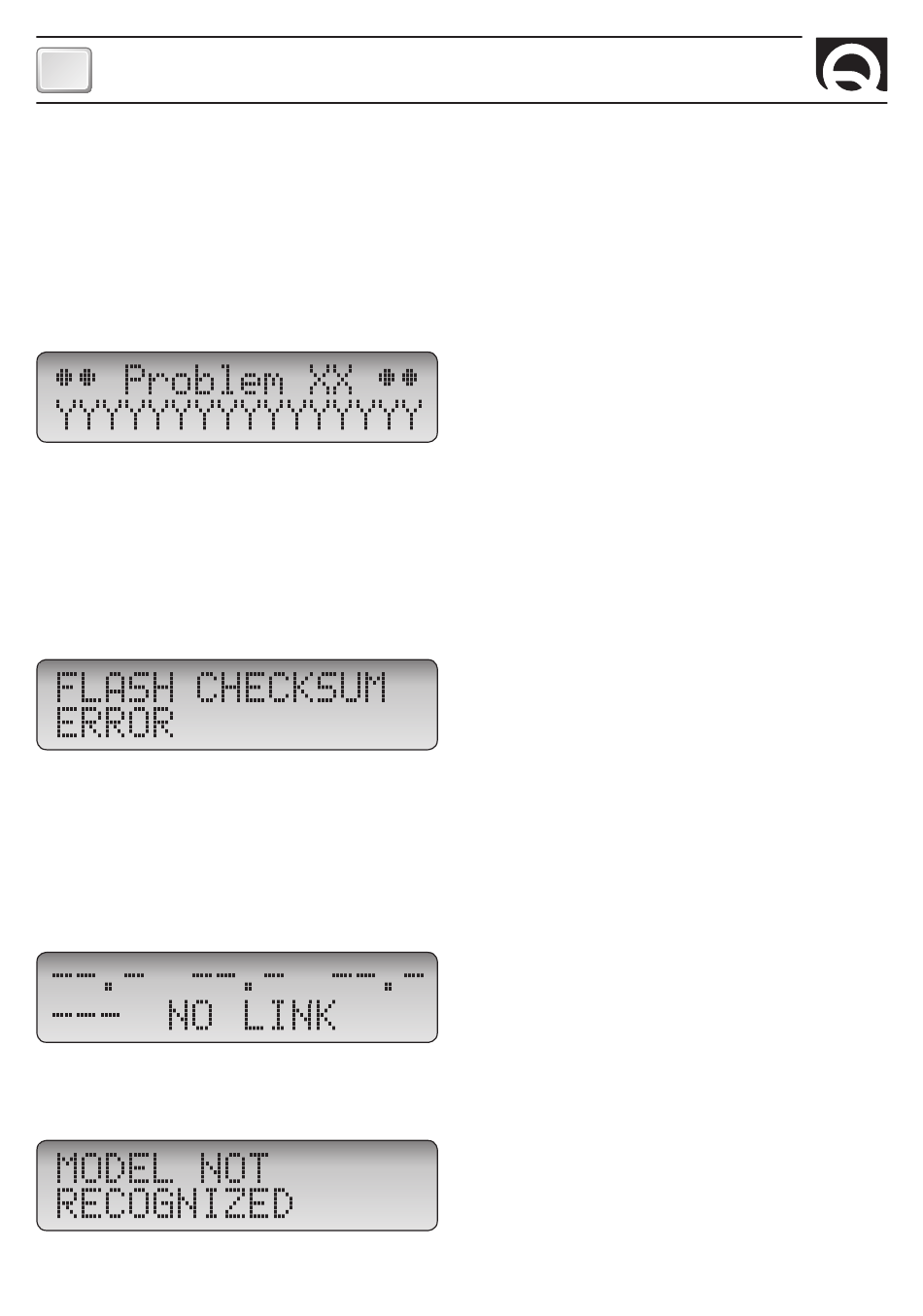

The following will appear if there is a problem with manual reset:
Where "XX" is the problem code and the "Y" field displays the description of the problem with manual reset (refer to
"problems with manual reset" table in the NRG series battery chargers manual).
INSTRUMENT TROUBLESHOOTING
FLASH memory checksum error
The following will appear if there is a problem with the flash memory checksum:
Failure connection with the battery charger.
The following signaling appears if:
• The battery charger is switched off (normal signalling).
• The group or priority setting carried out in the CONFIG RDS menu does not correspond to the one of the connected
battery charger.
• Problems on the CAN communication line between the battery charger and the RDS 1560 instrument.
Check the wiring and the correct insertion of the termination connector.
Battery charger model not recognised
The following will appear if the instrument does not recognise the battery charger model:
