S ET PO INT se t t in g

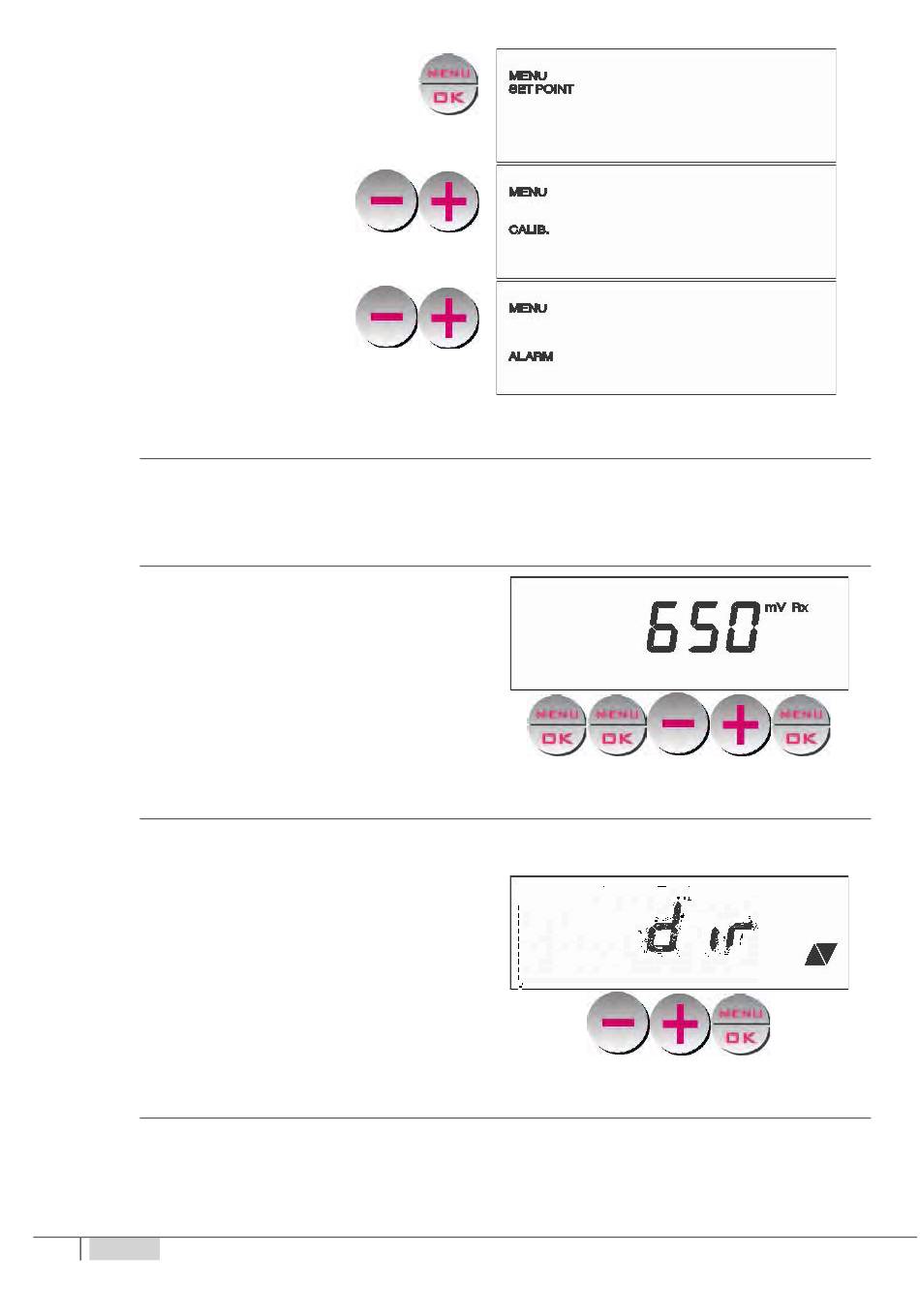

To have the pump operative it's mandatory set the following data: Setpoint values, type of dosing, manual or proportional

dosing and flow rate percentage.

From measuring status, pressing OK, the pump will

go in SETPOINT programming phase. Setpoint icon

will flash. Pressing OK again, the setpoint value

saved will flash and can be adjusted using + and -

buttons. Pressing OK, the setpoint value will be

memorized.

The pump automatically will go in DIRECTION

In this menu, has to set if the pump has to dose above the setpoint or below this value. For Redox if the pump has to dose up

to reach a certain quantity of oxidant, the direction arrow has to point in aloft.

To select the direction of the arrow, use the + and -

buttons. Pressing OK the direction will be

memorized.

After selected direction of the dosing, the pump will show ON-OFF or PROP. flashing. With + or - buttons it's possible to shift

among them.

ON-OFF - When the pump has to dose it will run at flow rate selected by the user in Flow rate setting, and it stops at the

Setpoint
