MICROCONTROLLED METERING PUMP CLASS COMBI PH – RX SERIES
This unit is dosing pump with integral pH/Rx controller designed to measure, control and regulate the pH/Rx value. The pump
works on an ON/OFF or proportional system controlled by a microcontroller to stop dosing once the pH/Rx value reaches set point.
The pump is supplied with level control setting. When the chemical tank is empty, on the display will appear LEVEL and the
pump goes in stand by. The level control has 5 seconds of delay.

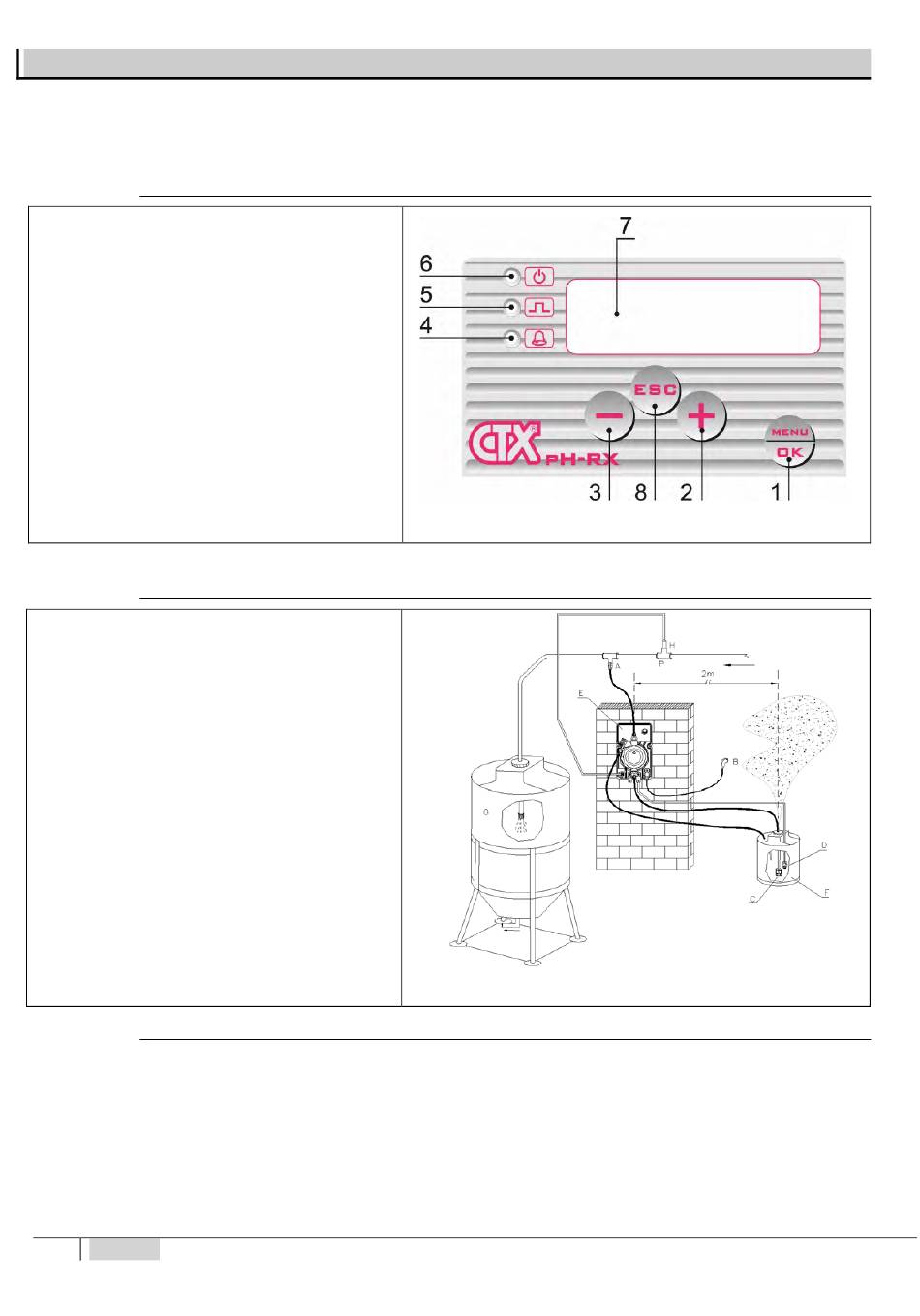

Co m m an d s

1 Confirm button "OK"
2 Increase value button "+"
3 Decrease value button "-"
4 Alarm LED "yellow"
5 Pulse LED "red"
Power on LED "green"
6
LCD Display
7

T yp ic al in st a llat io n

A Injection valve
B Power supply
C Filter
D Level probe
E Electrode
I Chemical tank
P Electrode holder
V Process tank

Acc esso r ies

1 flexible PVC suction hose, transparent crystal type, length 4 m;
•
1 semirigid polyethylene hose, white, length 2 m;
•
1 injection valve 3/8 BSP m;
•
1 filter
•
1 instructions/operating booklet.
•
ENGLISH
76
Fig. 15
Fig. 16
