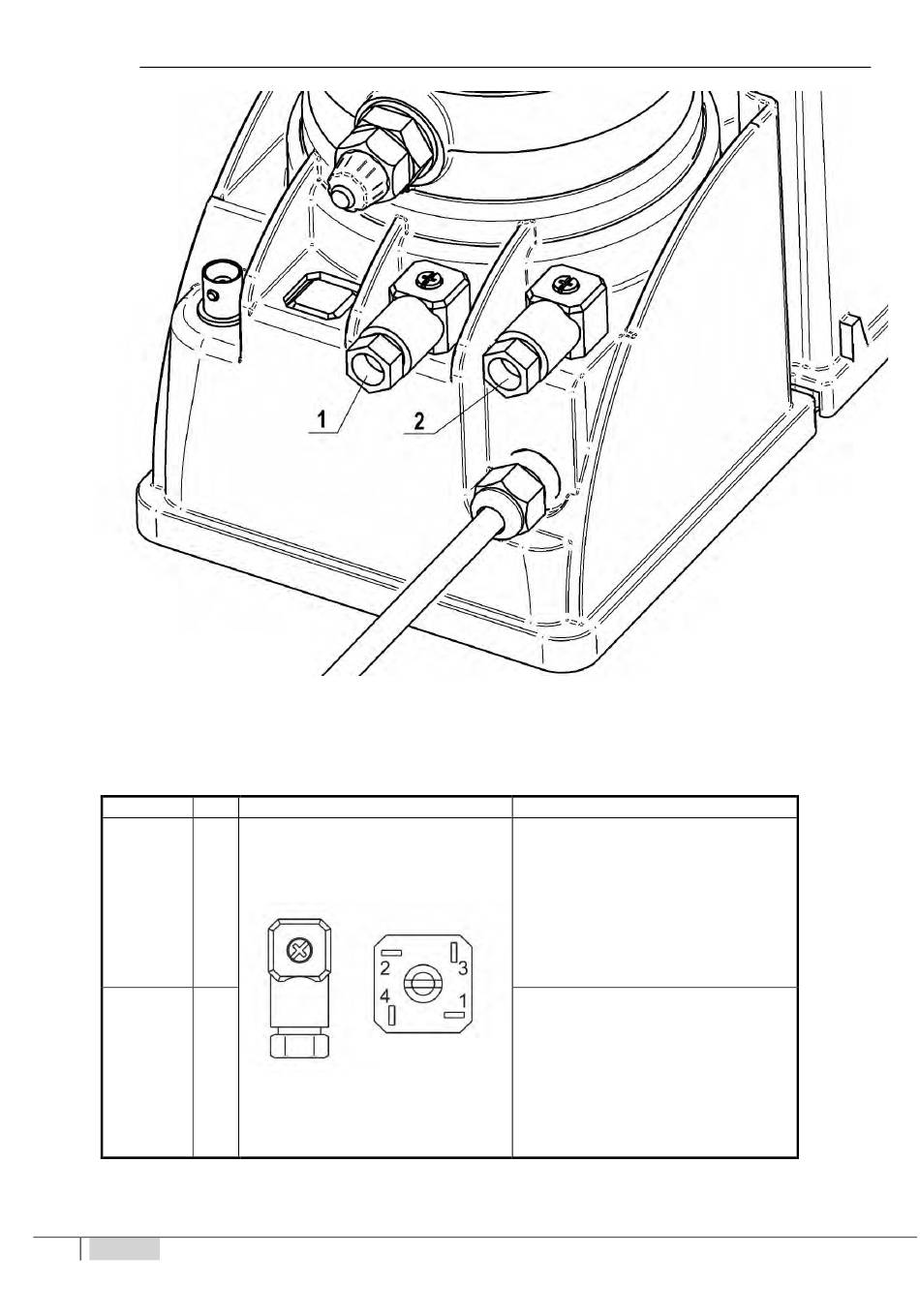

Wi ri n g co n n ect io n a n d o u t p u t co n n ect o r f u n ct i o n s
Pos. Female service connector wire assembly
Model
CLASS
1
ON/OFF
Proportional
Combi pH/Rx
CLASS
2
Proportional
ENGLISH
70
Fig. 10
Functions and technical informations
Level probe connection
Configuration:
Pin 1 = No connection
" 2 = No connection
" 3 = Level probe wire
" 4 = Level probe wire
Input mA signal connection
Configuration:
Pin 1 = No connection
" 2 = No connection
" 3 = ( + ) mA signal wire
4 =
" ( - ) mA signal wire
