Becker Centronic SunWindControl SWC62 Notice De Montage Et D'utilisation page 38

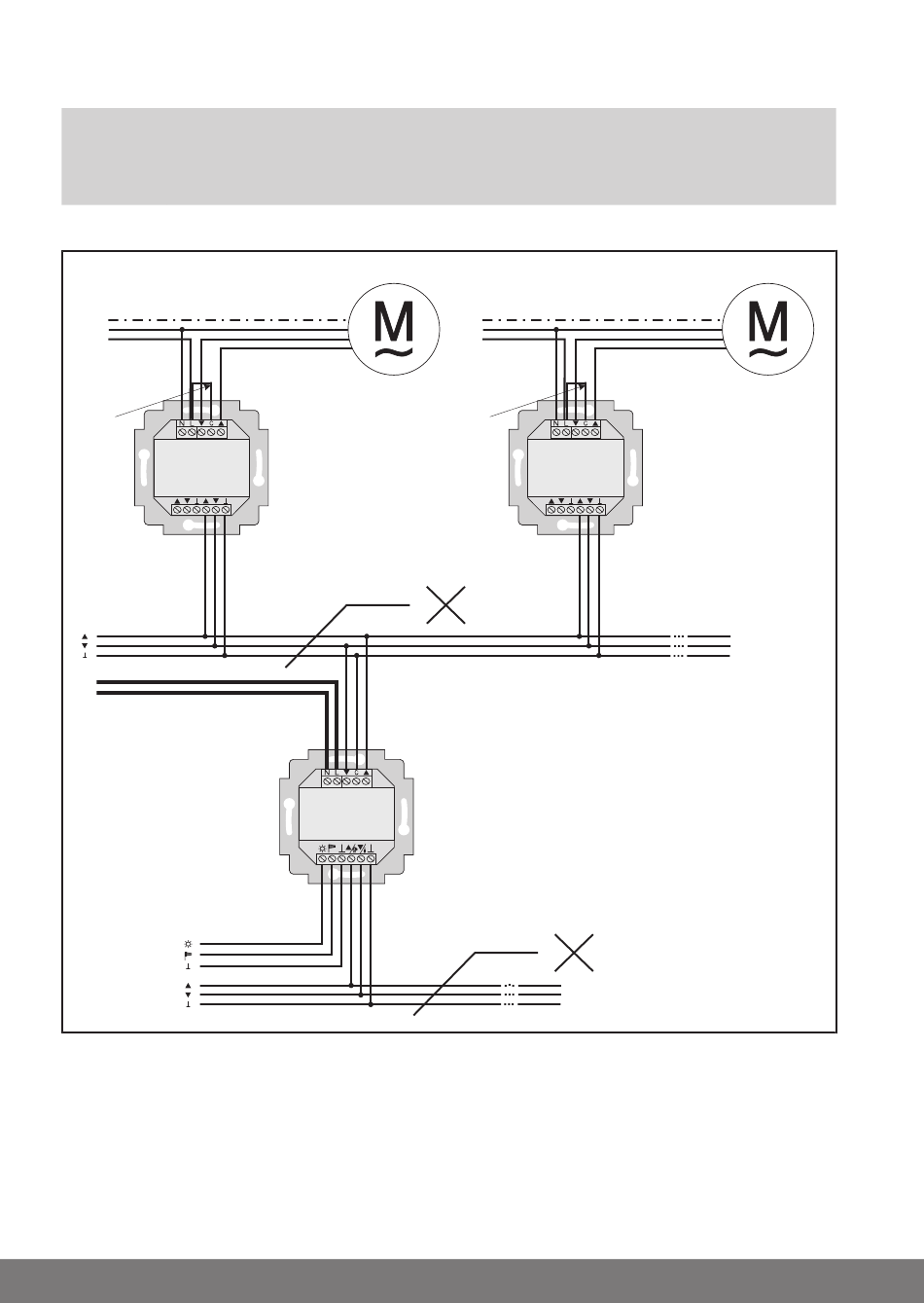

Connection as group controller
Attention
If using as a group controller, no jumpers may be inserted
between the L and C terminals!
1. Connect the power supply unit as follows:
green/yellow
PE
blue
N
brown/black
L
black/brown
Jumper
UC52
INDIVIDUAL CENTRAL
L
N
2. Put the protective caps back on the power supply unit.
3. Fit the power supply unit in the socket.
4. Place the control panel in the frame and insert this into the power supply
unit.
38 - en
Tubular drive
PE
N
L
Jumper
230 V
SWC62
Sensor CENTRAL
green/yellow
blue
brown/black
black/brown
UC52
INDIVIDUAL CENTRAL
230 V
Tubular drive
Central-
cable
