HPI Racing CUP RACER Manuel De Montage page 20

x1
Z422
Cap Head Screw M2.6x10mm
Inbusschraube M2.6x10 Schwarz
Vis M2.6x10mm
キャ ップネジ M2.6x10mm
x3
Z475
TP.flat Head Screw M2.6x5mm
Senkkopfschneidschraube M2.6x5mm
Vis TP.tete plate M2.6x5mm
T.P. サラネジ M2.6x5mm
x2
94303
TP. Flat Head Screw M3x8mm (Hex Socket)
Senkkopfschneidschraube M3x8mm (Inbus)
Vis TP tete plate M3x8mm (six pans creux)
T.P. サラネジM3x8mm (六角ソケッ ト)
x1
B028
Ball Bearing 6x10x3mm
Kugellager 6x10x3mm
Roulement 6x10x3mm
ボールベアリング 6×10×3mm
x2
94353
TP. Button Head Screw M3x8mm (Hex Socket)
Flachkopfschneidschraube M3x8mm (Inbus)
Vis TP tete bombee M3x8mm (six pans creux)
T.P. ナベタッピングネジ M3x8mm
x2
Z340
Wheel Screw (Hex Socket) 4-40x14mm
Felgenschraube (Inbus) 4-40x14mm
Boulon roue (six pans creux) 4-40x14mm
ホイールスクリュー (六角ソケッ ト) 4-40x14mm
x2
Z341
Cap Head Screw 4-40x14mm
Inbusschraube 4-40x14mm
Vis tete cylindrique 4-40x14mm
キャ ップネジ 4-40x14mm
x2
B030
Ball Bearing 10x15x4mm
Competition Low Friction Kugellager 10x15x4mm
Roulement 10x15x4 ZZ
ベアリング10x15x4 ZZ
8

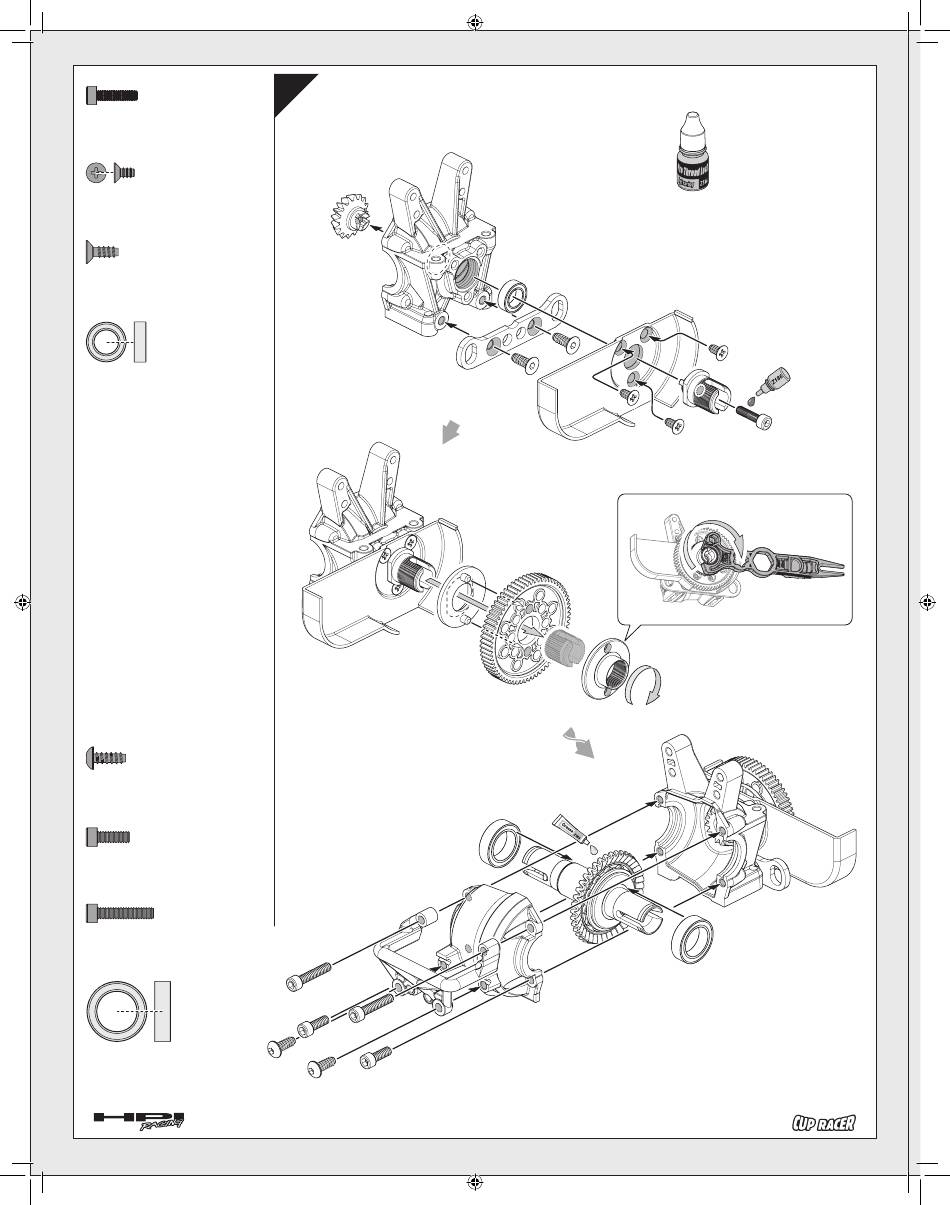

Rear Diff Case Assembly
Aufbau des hinteren Differentialgehäuses
86998
85267
❻
85274
Z341
Z340
Z341
94353
Z340
94353
Montage du boîtier de différentiel arrière
リアデフケースの組立て
❶
85267
B028
86991
94303
94303
Z475
❾
85281
87298
86219
B030
❷
20
Z186
Pro Thread Lock (Red)
Schraubensicherungslack (Rot)
Frein à filet pro (Rouge)
ネジロック剤(レッド)
❷
85271
Z475
86194
Z475
Z422
❻
85279
B030
