Transverse stabilizer
U-shaped curved spring steel wire, which is connected at both ends with one lower transverse arm each by ball-shaped heads. At the centre, the wire bracket
is fastened rotatable on the differential housing. If one wheel deflects, the other wheel is deflected as well across the bracket. This reduces the heeling (rolling)
of the vehicle when driving in curves. The transverse stabilizer supports the impact of oil dampened-shock absorbers, in particular when the wheel is
deflected. The restoring force of the wire bracket supports the rebound of the shock absorber (against the friction in the piston). Therewith, wheel strike is
ensured in every situation.
RC model
„Radio controlled" or more precisely: „Remote controlled" model vehicle.
Resonance exhaust silencer
The resonance exhaust silencer serves, to absorb sounds, and also to display the optimal output of the engine.
Slide carburettor
Air supply to the engine is regulated by moving the carburettor slide. At the same time the conic needle of a needle valve (idle nozzle needle) is moved and
therefore the amount of fuel that is flowing through the carburettor is changed.
Cable pull starter
Serves to start the engine manually. Turns the crank shaft, the piston via the piston rod and thus the engine. An integrated return spring retracts the rope again.
Servo
Servo motor with a shaft that turns in both directions in a limited angle and carries out a steering function mechanically via levers.
Servo lever (servo arm)
Lever, disk or cross with 4 control levers which transmit the rotational movement of the servo motor via steering levers.
Servo reverse
The adjuster on the remote control transmission reverses the rotation direction of the servo.
Servo saver
Cushioned additional link between steering servo and steering link. Sudden, hard impacts on the steered wheels are cushioned by this link and are not
directed straight into the servo.
Steering link
Generally consists of three flexible interconnected levers. The external, track rods are adjustable in length and connect the steering knuckle arm at the axle leg
flexibly to the middle steering link part. This is indirectly tilted to the right / left by the steering servo lever.

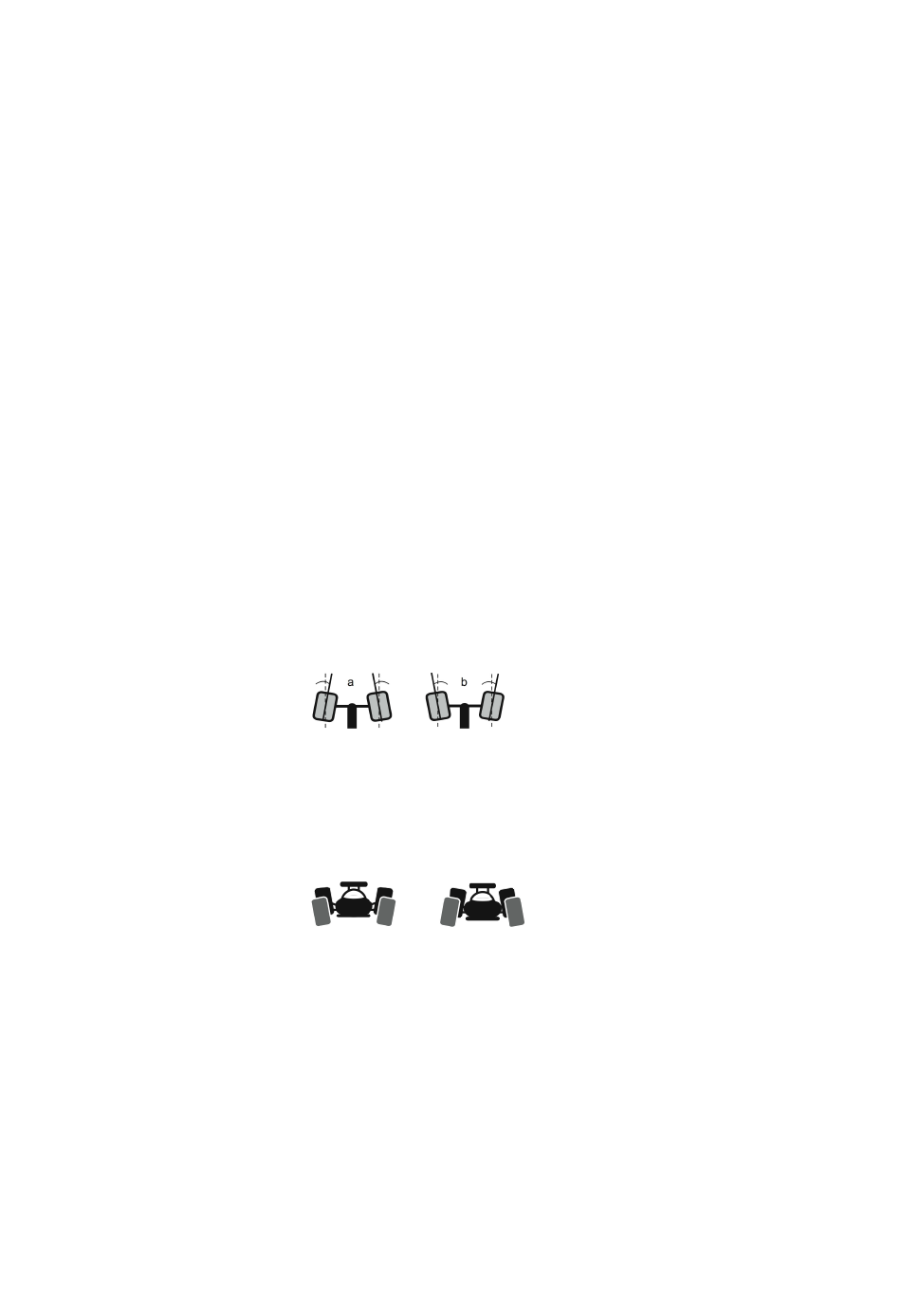

Alignment
Position of the wheel level to the driving direction:
a =) Toe-in – Wheels point inwards
b = Toe-out – Wheels point outward
Steering knuckle arm
Lever on the axle leg (steering lever). Moving the steering link to the right or left causes the wheels to turn via this lever.
Bumper guard
The bumper (ramming protection) made of blow-resistant plastic ensures optimum dampening in case of a frontal collision.
Inclination
Inclination of the wheels as viewed from the front:
a = positive inclination
b = negative inclination
Fuel tank
The quick-fastening fuel tank is connected to the resonance sound absorber by a hose on the connection nipple in the cover. This way, the exhaust gasses
create an overpressure in the tank when driving. This overpressure improves the fuel feed to the carburettor.
Trim lever
To fine-tune the neutral position of the servo. Trimming overlaps the deflections of the remote control lever. This allows shifting the servo neutral position into
one or the other direction.
Toe-in block
Rear support of the bottom transverse links. Depending on the hole distance, the transverse links are situated at an angle (toe-in) or parallel to the longitudinal
axis of the vehicle.
a b
