Installation and maintenance instructions panicLock AP4 31 5083118 / 03 / 2021
Regulation the escape direction EN
Step 3

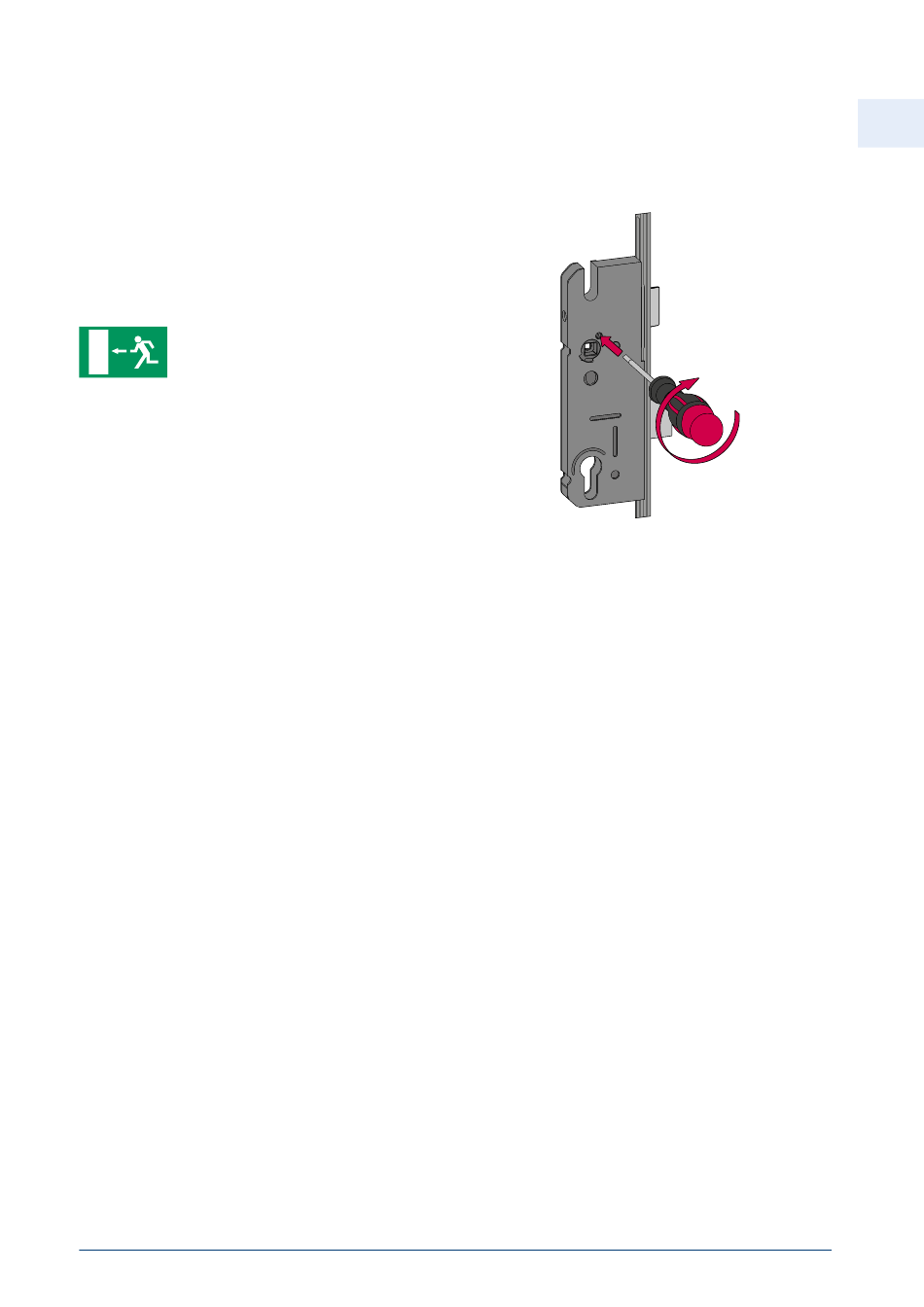

Position the screw properly on the side of the lock case and
tighten with a slotted screwdriver (0.8 x 4.0). (max. 2.5 Nm).
After adjusting the direction of escape
Carry out a function test and check for correct latch
retraction.
