Installation and maintenance instructions
Installation and adjustment instructions
Installation / adjustment instructions

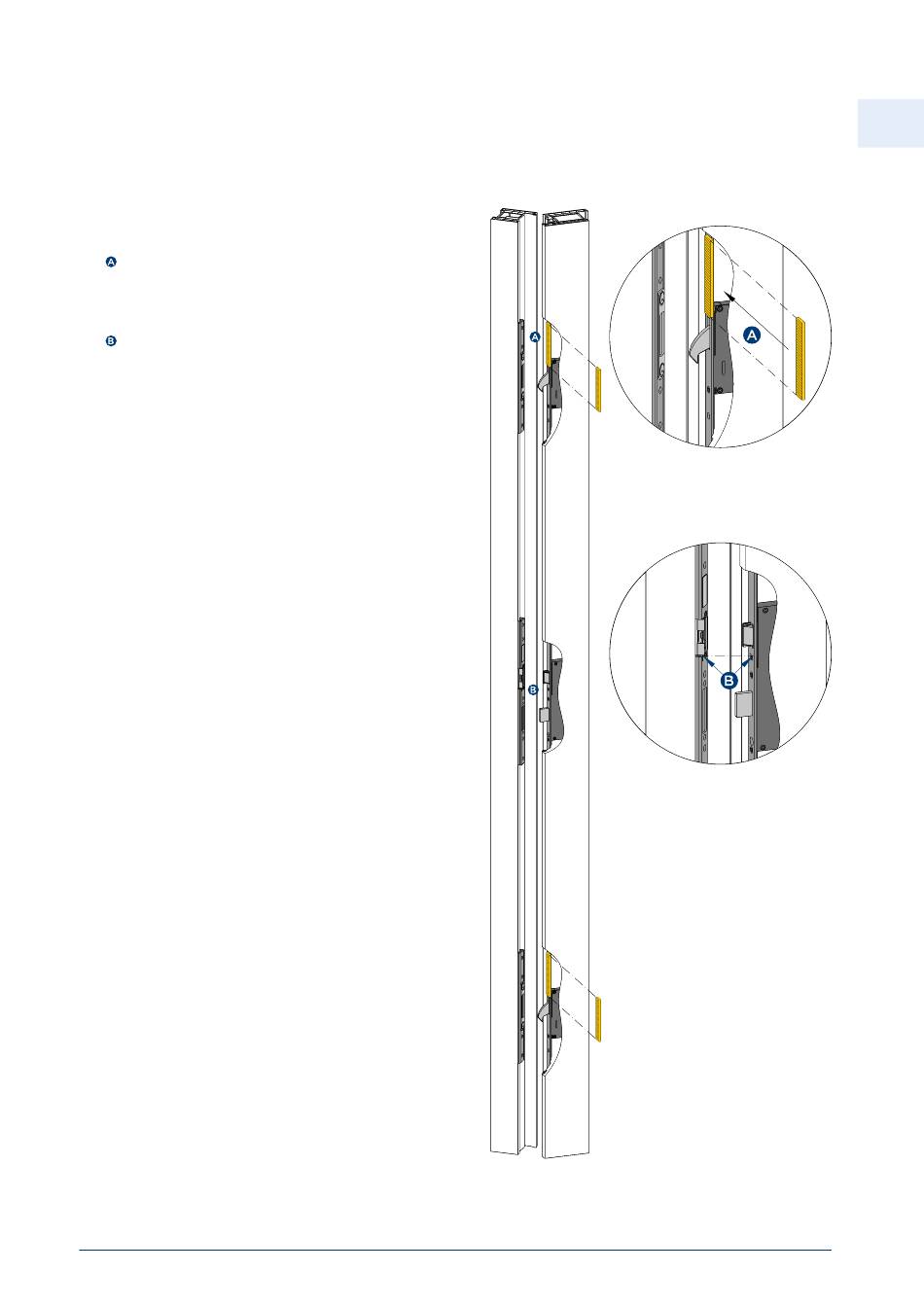

1.
Maintain residual airgap of 4 mm (± 0.5 mm)
between the locking mechanism and the keeps!
(e.g. check with glass pad 4 mm).
Locking mechanism operating range 4 ± 2 mm.
2.
Handle height marks on the faceplate (indent at
handle spindle level) and the latch / deadbolt keep
must show the same installation height.
3.
Observe contact pressure of hinges (must not be too
large to avoid lever action of the entire unit), reduce if
necessary.
4.
Adjust the door closing pressure at the latch plate of
the latch insert, enabling the gasket to fit close to the
frame and easy opening by key is possible.
5.
Adjust closing pressure at the top hook using the
adjustment plate of the keep.
6.
Adjust closing pressure at the bottom hook using the
adjustment plate of the keep.
7.
Conduct a function check of all elements: close, unlock
on handle and with key. If needed: Reduce pressure at
hinges, in order to relieve the door sash.
8.
When using security door locking systems, keeps, seals
and swing door openers, perform the adjustment so as
to take the intended function into account at
EN 179 (max. release force 70 N) on the handle and at
EN 1125 (max. release force 80 N) on the pushbar. The
max. permissible unlocking forces (release forces) are
exerted by tightening the latch, not by tightening the
hook. The hook must slide freely into the keep.
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ D-98617 Meiningen ∙ T +49 3693 950- 0 ∙ www.winkhaus.de ∙ Subject to technical changes
panicLock AP4
25
5083118 / 03 / 2021
