Installation and maintenance instructions
EN

Instructions on secure transportation

Transport blocks
To prevent damage to installed locks during transport
of the door, transport blocks must be inserted between
the sash and the frame, for fastening the airgap. In the
event that PVC-U, aluminium, or timber doors have a euro
groove / euro rebate, an all-round airgap of 11 to 12 mm
should be available. This is 4 mm in the case of timber doors
with a 4 mm airgap. These transport blocks may only be
removed immediately before the door assembly.
System-compatible transport protection may
be available from the profile manufacturers
(PVC-U) or accessory retailer (timber) .

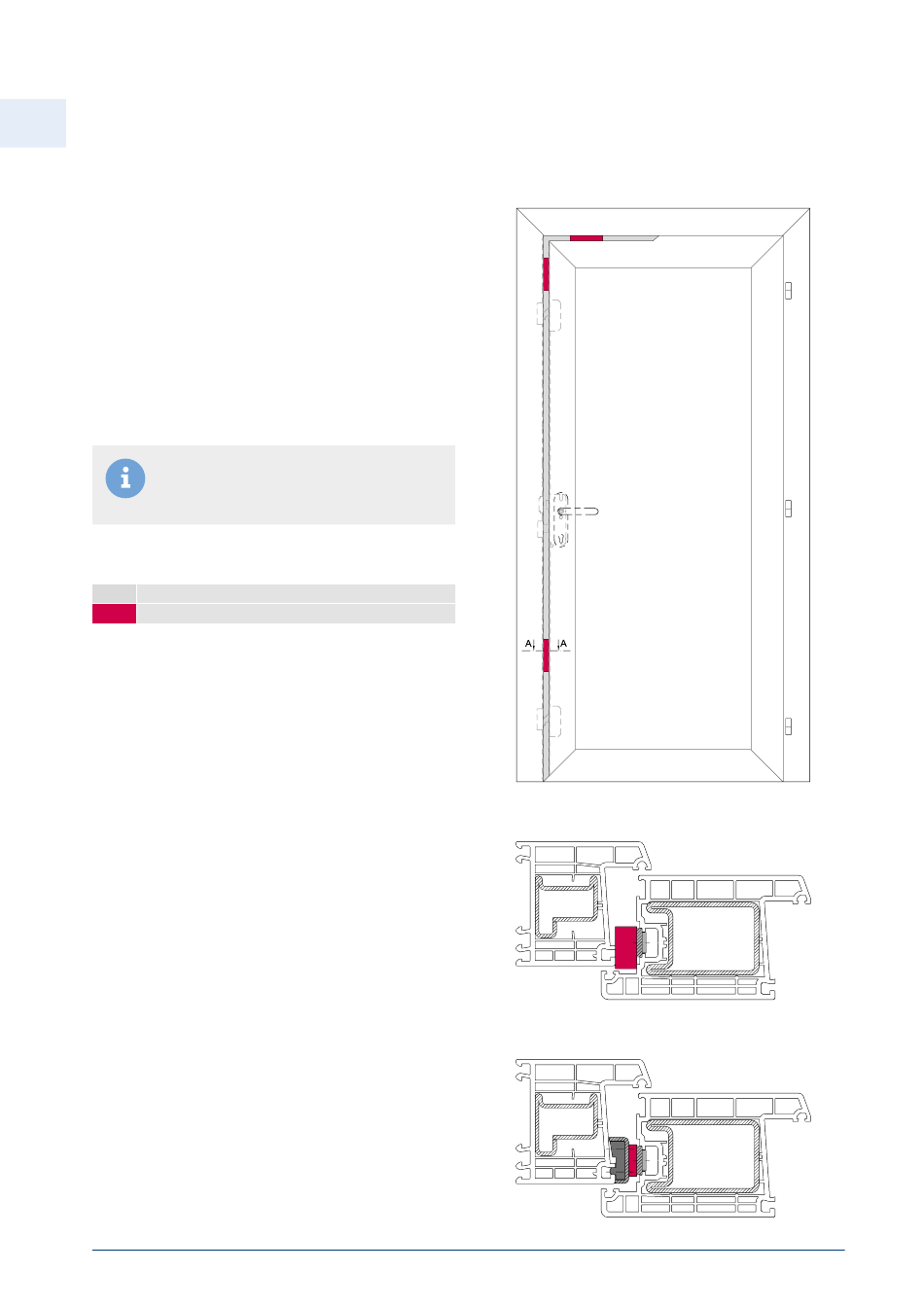

Explanation
Airgap
Transport block
