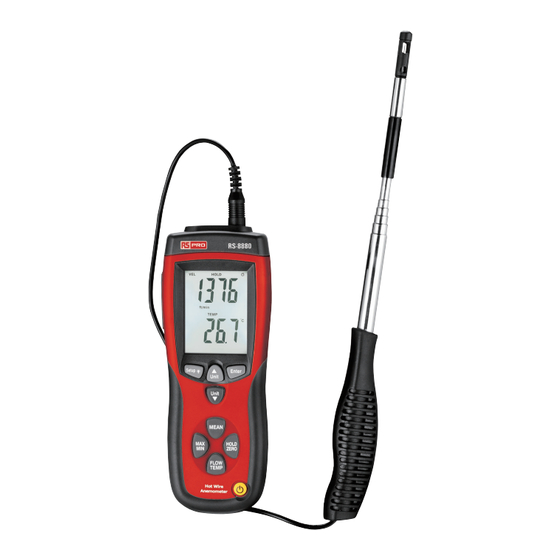

20 Indianapolis Street, 134 Godocho, Hodogaya, Kyalami Business Park, Yokohama, Kanagawa 240-0005 Instruction Manual Kyalami, Midrand Japan South Africa www.rs-components.com RS-8880 www.rs-components.com Stock No: 193-8699 U.S.A Asia Allied Electronics RS Components Ltd. 7151 Jack Newell Blvd. S. Hotwire Anemometer Suite 1601, Level 16, Tower 1,...
Page 2
All manuals and user guides at all-guides.com Hotwire Anemometer / English Your purchase of this HOT WIRE ANEMOMETER makes a step forward for you into the field of precision measurement. Although this ANEMOMETER is a complex and delicate instrument, its durable structure will allow many years of use if proper operating techniques are developed.
Page 3
All manuals and user guides at all-guides.com Hotwire Anemometer / English Hotwire Anemometer / English 2. Specifications 3. Button • Press “ “ .The thermal sensor is heated up (5s). Measurement view is opened: General Specifications The current reading is displayed, or “----”lights up if no reading is available. 46.7mm×60 mm larger LCD display.
Page 4
All manuals and user guides at all-guides.com Hotwire Anemometer / English Hotwire Anemometer / English 5. Changing Setup Options Area Setting Changing the number digits of area and Change the number value of area. Press “Unit “ or “Unit “ to Use Setup to change area unit, flow area, sleep mode settings.
Page 5
All manuals and user guides at all-guides.com Hotwire Anemometer / English Hotwire Anemometer / English 6.Measuring Procedure 6. Direction of the sensor head: There is mark on the top of the “Sensor Head”, When make the measurement, then this mark should 1.
Page 6
• To change between displaying the temperature, flow velocity and calculated volumetric flow rate: Press “Flow/Temp“. • If we want to change the units of the current reading, press “Unit “. RS-8880 • To interrupt/continue measurement: Press each time. • To end measurement and calculate the mean value: Press “Mean“.
Page 7
All manuals and user guides at all-guides.com Anémomètre à fil chaud / Français Anémomètre à fil chaud / Français Votre achat de cet ANÉMOMÈTRE À FIL CHAUD fait un pas en avant pour vous dans le domaine de la 2. Caractéristiques mesure de précision.
Page 8
All manuals and user guides at all-guides.com Anémomètre à fil chaud / Français Anémomètre à fil chaud / Français 3. Bouton 5. Modification des options de configuration • Appuyez sur “ “ . Le capteur thermique est chauffé (5 s). La vue est ouverte: Utilisez la configuration pour modifier l'unité...
Page 9
All manuals and user guides at all-guides.com Anémomètre à fil chaud / Français Anémomètre à fil chaud / Français Réglage de la zone 6. Procédure de mesure Modification des chiffres du nombre de zone et modification de la valeur numérique de la zone. Appuyez 1.
Page 10
All manuals and user guides at all-guides.com Anémomètre à fil chaud / Français Anémomètre à fil chaud / Français 6. Direction de la tête du capteur: Effectuer un calcul moyen dans le temps Il y a une marque sur le dessus de la «tête de capteur». Lorsque vous effectuez la mesure, cette marque •...
Page 11
Anleitung Bitte lese die folgenden Anweisungen sorgfältig durch und halte diese Anleitung immer griffbereit. 1. Funktionen RS-8880 • Thermo-Anemometer, erhältlich für Messungen bei sehr geringer Luftgeschwindigkeit. Bestandsnr. : 193-8699 • Dünne Sonde, perfekt für Gitter und Diffusoren. • Die Verbindung aus Heißdraht und Standardthermistor ermöglicht uns eine rapide und präzise Messung Heißdraht-Anemometer...
Page 12
All manuals and user guides at all-guides.com Heißdraht-Anemometer / Deutsch Heißdraht-Anemometer / Deutsch 2. Spezifikationen • Drücke “Min/Max”, um die angezeigten Messwerte oder die Luftgeschwindigkeits-Nullpunkteinstellung einzufrieren oder aufzuheben. Generelle Spezifikation • Drücke die Eingabetaste, um die Setup-Option aufzurufen. Drücke erneut die Eingabetaste, um die 46.7mm×60 mm größerer LCD-Display.
Page 13
All manuals and user guides at all-guides.com Heißdraht-Anemometer / Deutsch Heißdraht-Anemometer / Deutsch 5. Ändern der Setup-Optionen Bereichseinstellung Ändern der Zahlenstellen und Zahlenwerts des Bereichs. Drücke auf “Einheit” oder “Einheit”, um zur Option Benutze das Setup, um die Einstellungen für die Flächeneinheit, die Strömungsfläche und den Ruhemodus zum Einrichten des Bereichswerts zu gelangen, wenn der Thermometer im Einrichtungsmodus ist.
Page 14
All manuals and user guides at all-guides.com Heißdraht-Anemometer / Deutsch Heißdraht-Anemometer / Deutsch 6. Messverfahren 6. Richtung des Sensorkopfes: Auf dem “Sensorkopf“ ist eine Markierung. Wenn man die Messung durchführt wird, sollte man diese 1. Verbinde den “Sondenstecker“ mit der “Sondeneingangsbuchse“. Markierung gegen den gemessenen Wind richten (siehe Abb.
Page 15
• Um das Anzeigen der Temperatur, Strömungsgeschwindigkeit und berechnetem Volumenstrom zu wechseln: drücke “Strömung/Temp”. • Wenn die Einheiten des aktuellen Messwerts geändert werden sollen, drücke "Einheit “. RS-8880 • Messung unterbrechen/fortsetzen: Drücke jedes Mal. • Um die Messung zu beenden und den Mittelwert zu berechnen: Drücke die “Mittelwert”-Taste N.
Page 16
All manuals and user guides at all-guides.com Anemometro filo caldo / italiano Anemometro filo caldo / italiano L'acquisto di questo ANEMOMETRO FILO CALDO fa un passo avanti nel campo della misurazione di 2. Specifiche precisione. Specifiche generali Sebbene questo ANEMOMETRO sia uno strumento complesso e delicato, la sua struttura durevole consentirà...
Page 17
All manuals and user guides at all-guides.com Anemometro filo caldo / italiano Anemometro filo caldo / italiano 3. Pulsante 5. Modifica delle opzioni di installazione • Premere “ “ Il sensore termico è riscaldato (5 s). La vista di misurazione è aperta: Utilizzare il programma di installazione per modificare le impostazioni dell'unità...
Page 18
All manuals and user guides at all-guides.com Anemometro filo caldo / italiano Anemometro filo caldo / italiano Impostazione dell'area 6. Procedura di misurazione Modifica delle cifre numeriche dell'area e modifica del valore numerico dell'area. Premere "Unità" o "Unità" 1. Collegare la "spina della sonda" alla "presa di ingresso della sonda". per scorrere fino all'opzione di impostazione del valore dell'area quando il termometro si trova nella modalità...
Page 19
All manuals and user guides at all-guides.com Anemometro filo caldo / italiano Anemometro filo caldo / italiano 6. Direzione della testa del sensore: Esecuzione di un calcolo medio nel tempo C'è un segno sulla parte superiore della "Testina sensore", quando si effettua la misurazione, allora questo •...
Page 20
Lea atentamente las siguientes instrucciones y mantenga siempre este manual a mano. Manual de instrucciones 1. Características RS-8880 • Anemómetro térmico, disponible para mediciones de muy baja velocidad del aire. • Sonda delgada, ideal para rejillas y difusores. Stock No: 193-8699 •...
Page 21
All manuals and user guides at all-guides.com Anemómetro con cable de corriente / Español Anemómetro con cable de corriente / Español 2. Especificaciones • Presione "Man / Mix" para congelar o descongelar las lecturas mostradas o ajustar la velocidad del aire a cero. •...
Page 22
All manuals and user guides at all-guides.com Anemómetro con cable de corriente / Español Anemómetro con cable de corriente / Español 5. Cambio de opciones de configuración Configuración del área Cambiar los dígitos numéricos del área y Cambiar el valor numérico del área. Presione “Unit” “ o “Unit Use Configuración (Setup) para cambiar la unidad de área, el área de flujo, la configuración del modo de “para desplazarse a la opción de configuración del valor del área cuando el termómetro esté...
Page 23
All manuals and user guides at all-guides.com Anemómetro con cable de corriente / Español Anemómetro con cable de corriente / Español 6. Procedimiento de medición 6. Dirección de la cabeza del sensor: Hay una marca en la parte superior de la "Cabeza del sensor". Cuando realice la medición, esta marca debe 1.
Page 24
All manuals and user guides at all-guides.com Anemómetro con cable de corriente / Español Realizar un cálculo medio en el tiempo • Presione "Mean" durante 2 segundos. • La media está encendida. El tiempo de medición transcurrido (mm: ss) se muestra en la línea superior, mientras que la lectura actual se muestra en la línea inferior.
