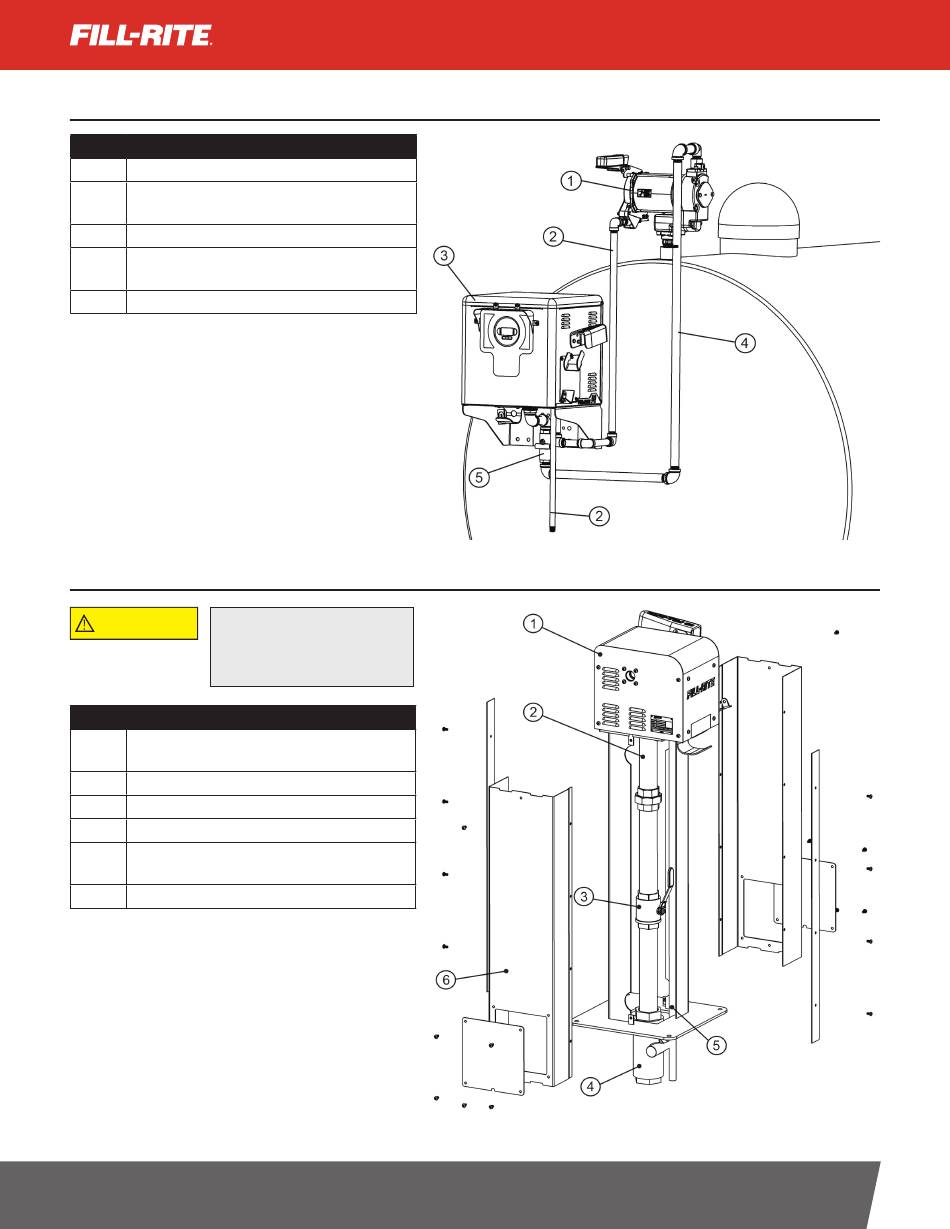

Typical Wall Bracket Mount Plumbing
Item Description
1 Remote Pump (for use with FR102PHU, FR902DPU)
Electrical Conduit (Threaded rigid conduit,
2
sealed fittings, conductor seal)
3 Wall Mounted Cabinet Dispenser (FR902DPU)
Fluid Inlet Pipe (Threaded pipe joints and
4
connections should be sealed)
5 Safety Breakaway Valve
Typical Pedestal Mount Plumbing
CAUTION
Threaded pipe joints and connections
should be sealed with the appropriate
sealant or sealant tape to minimize the
possibility of leaks.
Item Description
Remote Dispenser Cabinet (applicable to
1
FR102PHU, FR902DPU)
2 Inlet Pipe
3 Shut-Off Valve
4 Safety Breakaway Valve
Electrical Conduit (Threaded rigid conduit,
5
sealed fittings, conductor seal)
6 Exterior Cover
