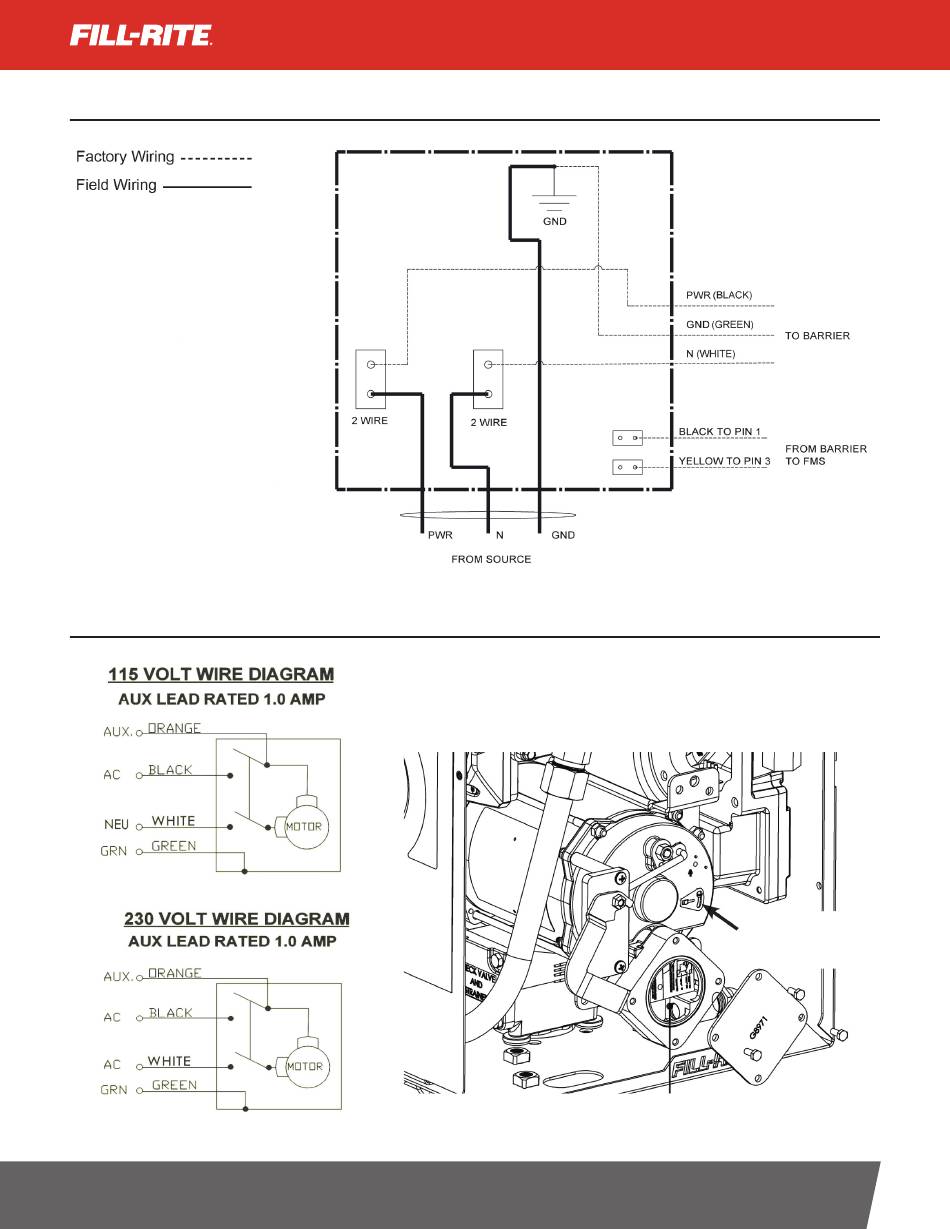

FR302DPU 110 VAC Wiring
NOTE: Only wiring for the barrier
passes through the Explosion Proof
Junction Box on FR302PH models.
Wiring for the barrier is 110 VAC
ONLY! Wiring the barrier to
220 VAC will damage the
barrier and meter!
Wiring for the motor (110 VAC and
230 VAC) runs through the junction
box on the motor (see access
information on page 11 and 13).
FR302DPU Motor Wiring (110 VAC and 220 VAC)
fillrite.com
REMOTE DISPENSING CABINETS
The 300 series pump located inside the FR302PH Dispenser Cabinet can be wired to
operate on 110 VAC or 220 VAC. Be certain to set the Voltage Selector Switch to the
correct setting for the input voltage. The Voltage Selector Switch is located on the
end of the pump, just above the pump wiring junction box (see illustration below).
Power should be supplied by a dedicated 30 amp breaker.
INSTALLATION AND OPERATION MANUAL
Voltage Selector
Switch
Motor Wiring
12
