Safety Information
WARNING
To ensure safe and proper operation of your equipment, it is critical to read and adhere to all of the following safety warnings and precautions.
Improper installation or use of this product can cause serious bodily injury or death!
WARNING
This product must not be used to transfer fluids into any type of aircraft.
WARNING
This product is not suited for use with fluids intended for human consumption or fluids containing water.
Locking

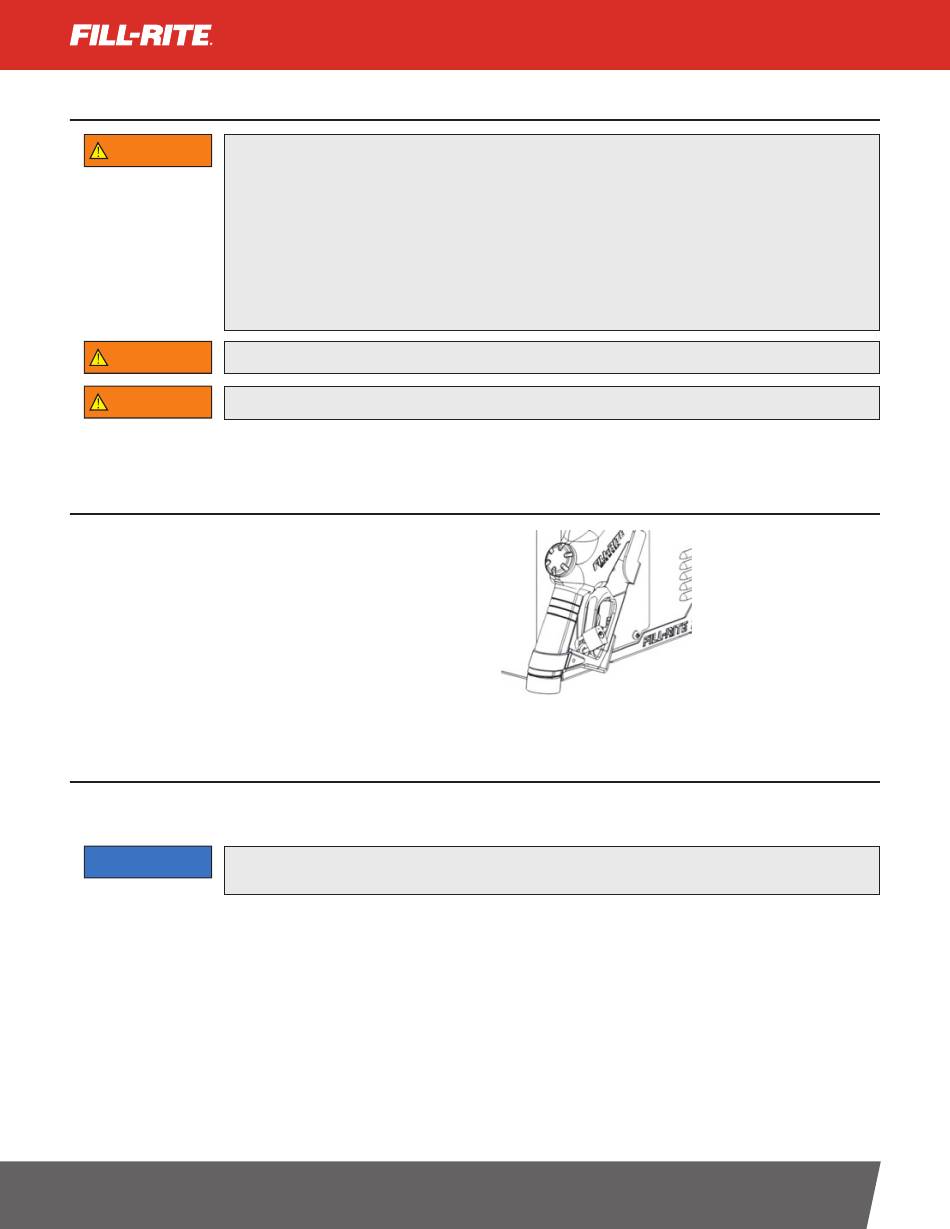

Your Fill-Rite pump nozzle can be locked for added security. With the pump
turned off, and the nozzle in the stored position, a lock can be inserted
through the nozzle rest and the nozzle handle opening. This configuration
prevents the nozzle from being removed and the pump being turned on.
Installation
An emergency shut-off valve with fusible link must be installed at the dispenser inlet. All piping must be Schedule 40. Use UL classified gasoline and
oil resistant pipe compound on all threaded joints. See page 13 and 14 for sample plumbing diagrams.
NOTICE
Remote dispensers and tank top pumps must be installed in accordance with local, state, and national electrical code NEC/ANSI/NFPA 70, NFPA
30, NFPA 30A, and NFPA 395.
Additionally, the Fill-Rite Cabinet Dispensers require a safety approved pressure relief valve be incorporated into the installation, either as part of the
pump or separately at the dispenser itself. To assure proper operation your dispenser cabinet must be secured to a solid mounting surface. Fill-Rite
recommends installing Cabinet Dispensers on either the KITWM Mounting Bracket kit, or the KITPD pedestal.
These two mounting options are designed specifically for use with the Fill-Rite FR302DPU, FR902DPU Cabinet Dispensers (the FR102PHU comes standard
with the KITPD pedestal), and feature pre-drilled openings located for plumbing, wiring, and fastening. They also include the necessary hardware to fasten
the cabinet correctly and securely in place. See your Fill-Rite Distributor for more information on these mounting kits.
fillrite.com
REMOTE DISPENSING CABINETS
NEVER smoke near the dispenser, or use the dispenser near open flames when dispensing a flammable liquid! Fire can result!
1.
2.
A Fill-Rite filter should be used on the dispenser outlet to insure no foreign material istransferred to the fuel tank.
3.
Threaded pipe joints and connections should be sealed with the appropriate sealant or sealant tape to minimize the possibility of leaks.
4.
Storage tanks should be securely anchored to prevent shifting or tipping when full orempty.
5.
To minimize static electricity build up, use only static wire conductive hose when dispensing flammable fluids, and keep the fill nozzle
in contact with the container being filled during the filling process.
6.
DO NOT exceed 50 psi/ 3.5 BAR line pressure.
7.
DO NOT install a foot valve or check valve without a pressure relief valve; cracking may result.
INSTALLATION AND OPERATION MANUAL
3
