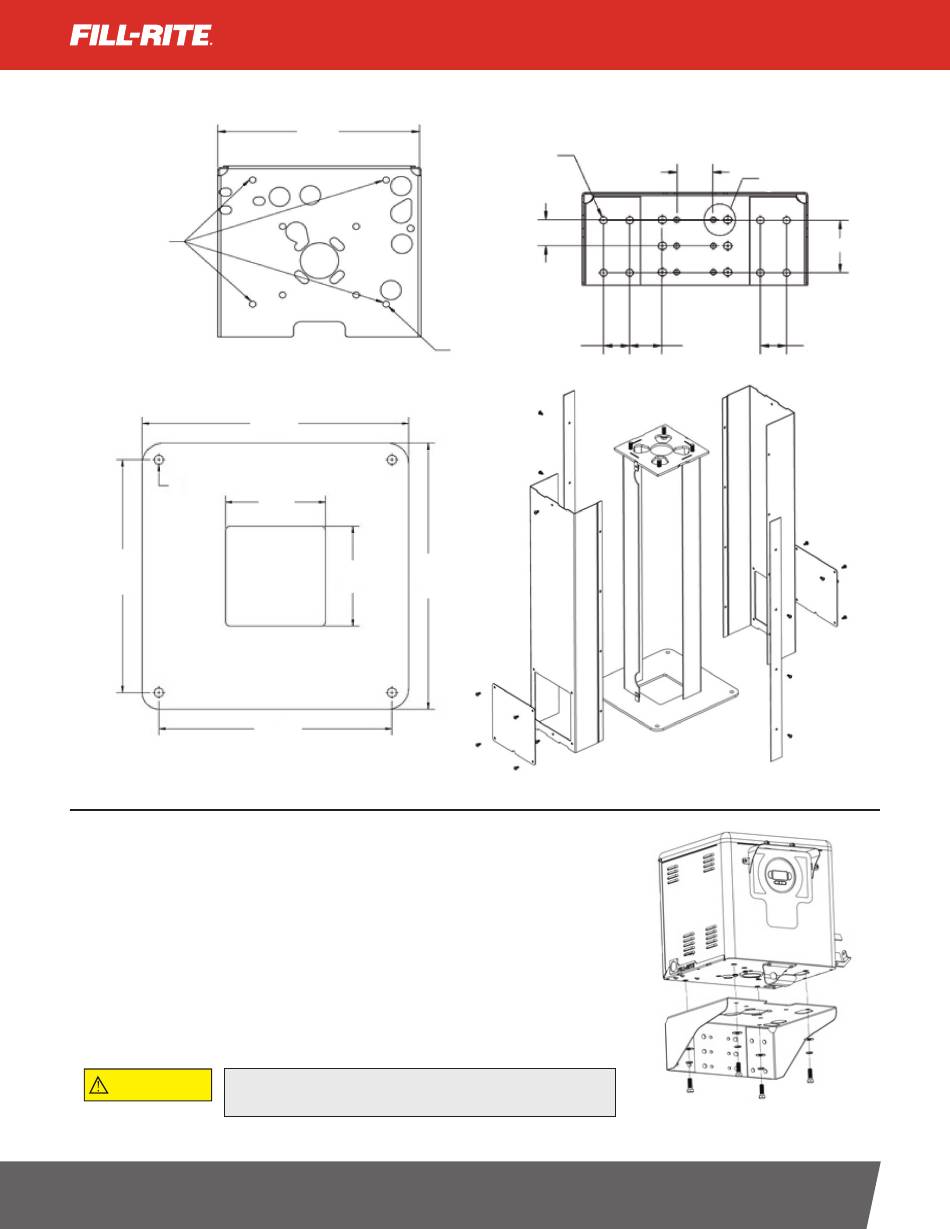

KITWM Wall Bracket
Cabinet Mounting
Holes
KITPD Pedestal
0.55"
14.00"
Mechanical Installation
1.
Install the pump (if not included) securely to the top of the fuel tank per the instructions
included with the pump.
2.
Install mounting plate or pedestal as applicable for your installation.
3.
Place dispenser on mounting plate or pedestal; using the 4 – 1/2 x13 screws, and grommet
washers, attach the dispenser securely to the mounting surface through the 4 holes located
in bottom of the dispenser cabinet base (Figure 1).
4.
Installations must include an Emergency Shut-Off Valve (not supplied) to the dispenser inlet.
Position valve so it can be rigidly mounted and is not dependent on the dispenser for support.
5.
Carefully measure and install pipe between the pump andEmergency Shut Off Valve. The
pipe is not intended to support the pump or the dispenser in any manner.
NOTE: Dimensional drawings to aid in installation are located on page 4.
CAUTION
Threaded pipe joints and connections should be sealed with the appropriate sealant
or sealant tape to minimize the possibility of leaks.
fillrite.com
REMOTE DISPENSING CABINETS
17.12"
16.00"
6.00"
6.00"
16.00"
14.00"
8X Ø 0.55"
2.00"
2.00"
4X Ø 0.55"
INSTALLATION AND OPERATION MANUAL
2.71"
A
2.46"
2.00"
4.00"
Figure 1
4
