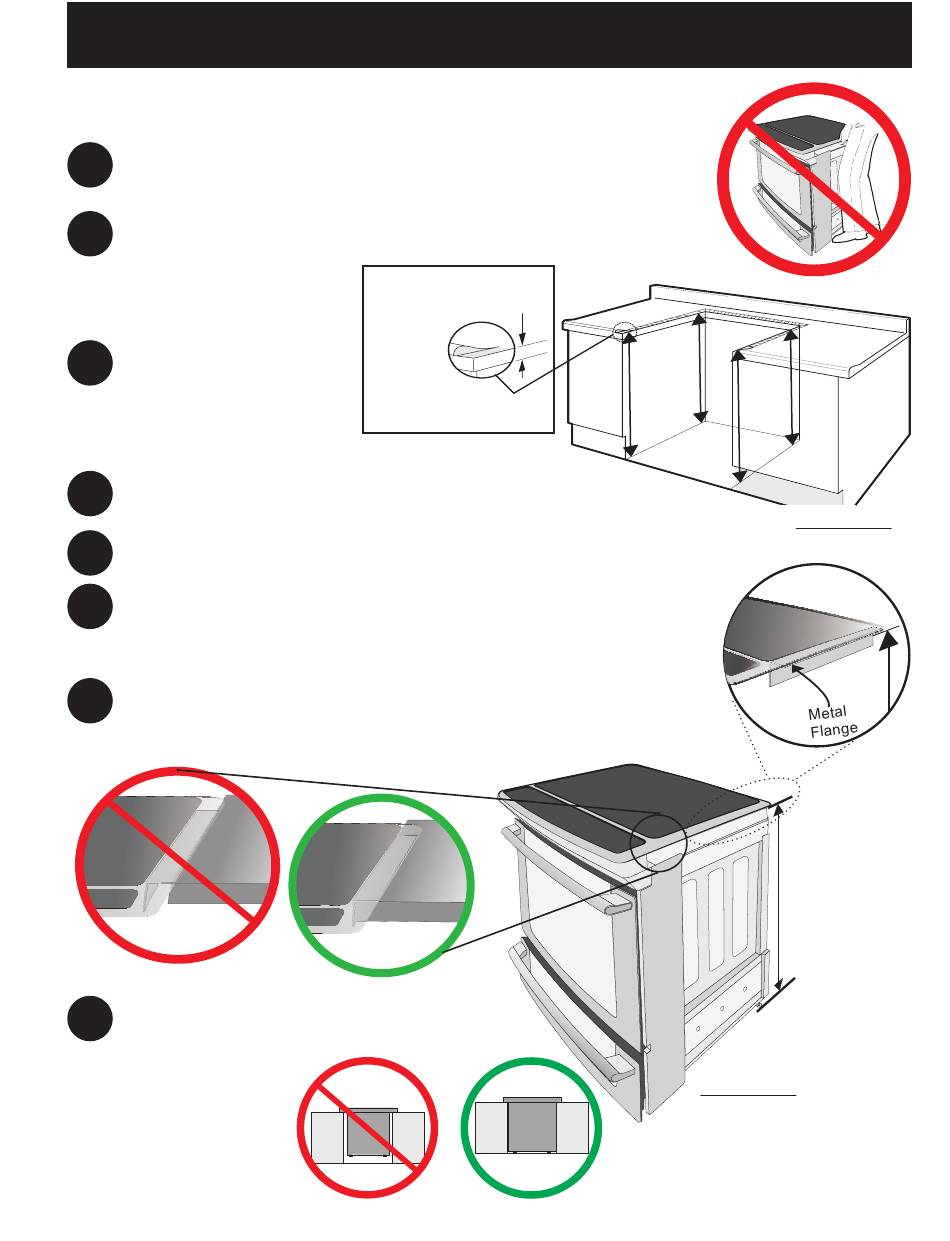

30" DUAL FUEL SLIDE-IN RANGE INSTALLATION INSTRUCTIONS
To avoid breakage: Do NOT handle or manipulate the
unit by the cooktop.
1
The counter-top around the cut-out should be flat and leveled
(see hatched area on illustration 1).
Before installing the unit, measure the heights of the two (2) cabinet
2
sides (H1-4), front and back (Illustration 1) from the floor to the top of
the counter.
Level the range using the
two (2) front leveling legs
and the two (2) adjustable
leveling wheel, so that
3
the height from the floor
to the underside of the
metal flange is greater
than the tallest cabinet
measurement by at least 1/16" (see Ill. 2).
4
Remove and discard the two rear leveling legs, they are only
in place to solidify the unit for the transport.
5
Slide the unit into the cabinet. Make sure the center of the unit is aligned with
the center of the cabinet cut-out.
6
Remove the protective channels on each side of the cooktop (if
provided).
The metal flange under each side of the cooktop MUST be placed
over the cabinet countertop for proper unit support. The cooktop
7
should NOT rest directly on the countertop (see illustration 2) or
else it could cause damage to the cooktop voiding the warranty.
Level the unit if needed.
After the installation, MAKE SURE that the
8
unit is supported by the two front leveling legs
and the two adjustable leveling wheels and
NOT by the cooktop.
(Models with an Electric Oven and a Gas Cooktop)
Shave
1 ½" Max.
Raised
(3,8 cm Max.)
Edge
to Clear
Space for
a 31½"
(80 cm) Wide
Cooktop.
H1
5
H2
H4
H3
Illustration 1
To successfully
install the
range, the
initial level
height from
floor to
underside of
cooktop frame
should be at
least 1/16"
taller than
cabinet sides
as measured in
step 2.
Illustration 2
