30" DUAL FUEL SLIDE-IN RANGE INSTALLATION INSTRUCTIONS

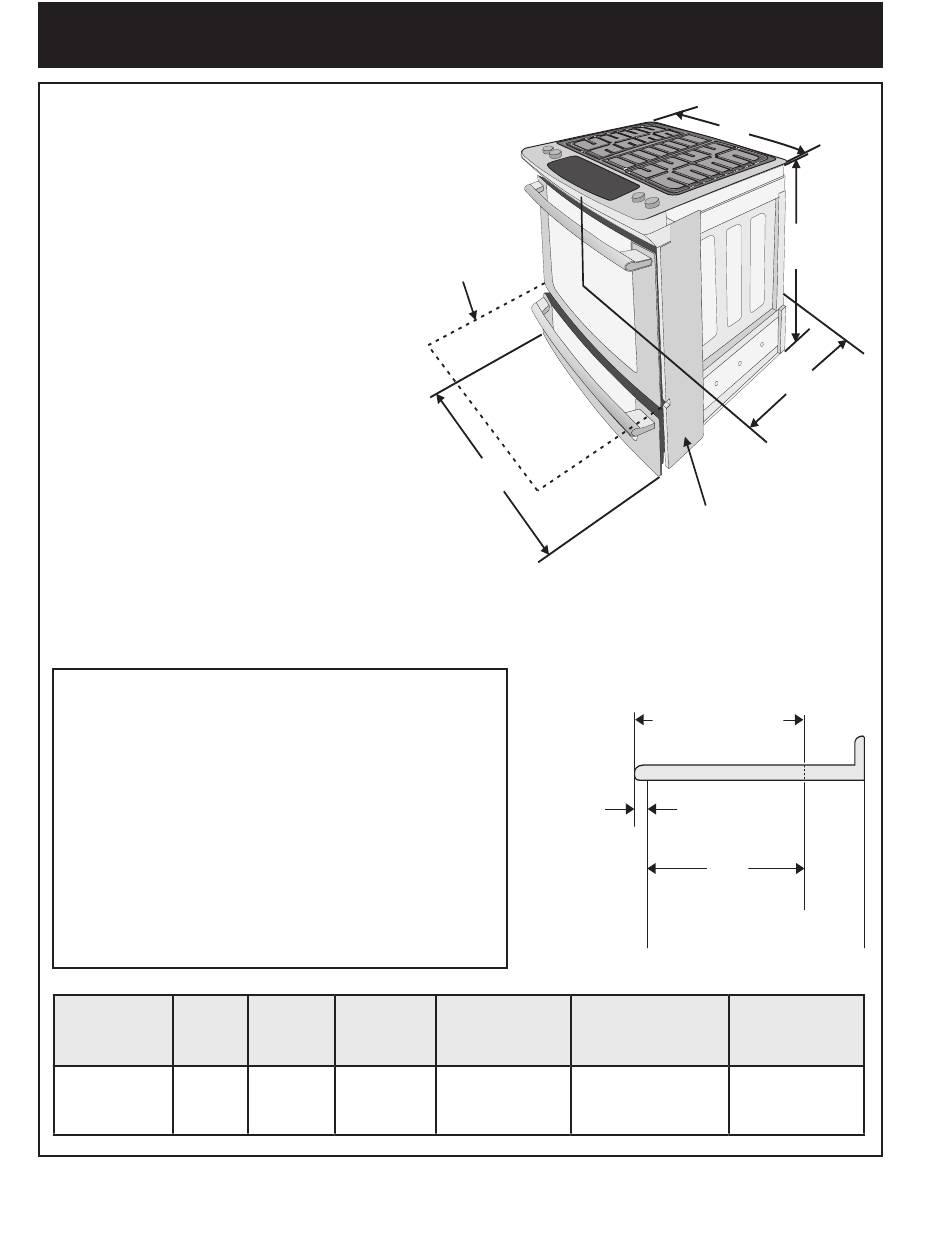

Product dimensions
NOTE:
1. Do not pinch the power supply cord or
the flexible gas conduit between the
range and the wall.
2. Do not seal the range to the side
cabinets.
3. 24" (61 cm) minimum clearance
between the cooktop and the bottom of
the cabinet when the bottom of wood
or metal cabinet is protected by not
less than ¼" (0,64 cm) flame retardant
millboard covered with not less than
No. 28 MSG sheet metal, 0,015" (0,4
mm) stainless steel, 0,024" (0,6 mm)
aluminum, or 0,020" (0,5 mm) copper.
30" (76,2 cm) minimum clearance
when the cabinet is unprotected.
4. For cutouts below 22 7/8" (58,1 cm),
appliance will slightly show out of the
cabinet.
5. Allow at least 19 ¼" (48,9 cm)
clearance for door depth when it is
open.
* IMPORTANT:
To avoid cooktop breakage
for cutout width (E dimension) of more than
30 1/16" (76,4 cm), make sure the appliance
is centered in the counter opening while
pushing into it. Raise leveling legs and the
rear adjustable wheels at a higher position
than the cabinet height (see page 5), insert
the appliance in the counter and then level.
Make sure the unit is supported by
the leveling legs at the front and the
wheels at the back and NOT by the
cooktop itself.
A.
B.
HEIGHT
WIDTH
35 5/8" (90,5 cm)
30"
- 36 5/8" (93 cm)
(76,2 cm)
(Models with an Electric Oven and a Gas Cooktop)
Door Open
C.
D. DEPTH
COOKTOP
TO FRONT
WIDTH
OF RANGE
31½"
28 5/16"
(80 cm)
(71,9 cm)
B
22 7/8"(58,1 cm) min.
23 1/4"(59,05 cm) max.
FRONT OF
CABINET
E. CUTOUT
F. CUTOUT
WIDTH*
DEPTH
(Countertop and
Cabinet)
30±1/16"
21 3/4" (55,2 cm) Min.
(76,2±0,15 cm)
22 1/8" (56,2 cm) Max
24" (61 cm) Min. with
backguard
4
C
A
D
Side Panel
(see Note 4)
1 1/8"
(2,86 cm)
F
Ref.
G. HEIGHT
OF
COUNTERTOP
36 5/8" (93 cm) Max.
35 7/8" (91,1 cm)
Min.
